Description

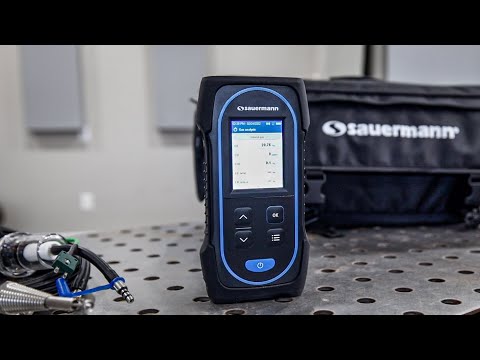

NCI Si-CA 030 Two Gas Residential Combustion Analyzer Kit with O2, CO, Flue Probe, Draft Probe and Soft Case
All the essentials for combustion gas analysis with extra draft probe
The Si-CA 030 offers everything heating engineers need to inspect and maintain residential and commercial boilers, with wireless connection to our smartphone app and automatic generation of servicing reports and certificates.
Features:
- Up to 3 Sensors (O2 and CO included)
- CO sensor measurement up to 8,000 ppm
- Auto pump cut-off for high CO levels
- Color display screen
- Data management with automatic logging & report creation
- Lightweight, only 12 oz
- Draft & differential pressure measurements
- Combustion efficiency & excess air calculations
- Quick and easy pump On/Off control
- Predictive maintenance with estimated sensor life & calibration reminders
- Protective rubber holster
- Now works with the measureQuick App!
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
Download the Sauermann Combustion App for your Android or iOS devices!
The Sauermann Combustion app lets you control your Si-CA analyzer remotely, view measurement results in real time, and customize them before exporting in the format of your choice.
App Features:
- Fast, easy wireless connection to any iOS or Android device
- Remote live view of combustion analysis data as list or graph
- Remote control to change settings
- Data saving, including automatic logging
- Report creation in PDF, CSV (for Excel) and XML formats
- Databases for customers, operators & equipment
Specs
| Parameter | Sensor Type | Measuring Range | Resolution | Accuracy |
| O2 | Electrochemical | 0 to 25% | 0.01% | ±0.2% vol |
| CO | Electrochemical | 0 to 8000 ppm | 1 ppm | ±8 ppm < 160 ppm ±5% rdg up to 2000 ppm ±10% rdg > 2000 ppm |
| CO2 | Calculated | 0 to 99.9% | 0.1% | - |
| Flue Temperature | TcK | -4 to +2282 °F -20 to +1250 °C |
0.1 °F 0.1 °C |
±3.6 °F or ±0.5% rdg ±2 °C or ±0.5% rdg |
| Air Temperature | NTC or TcK | -4 to +248 °F -20 to +120 °C |
0.1 °F 0.1 °C |
±3.6 °F ±2 °C |
| Differential Temperature | Calculated | 0 to 2282 °F 0 to 1250 °C |
0.1 °F 0.1 °C |
- |
| Pressure / Draft | Semiconductor | -200 to +200 mbar -80 to +80 inH2O |
0.01 mbar 0.001 inH2O |
±1% rdg ±0.03 mbar ±1% rdg ±0.012 inH2O |
| Excess Air | Calculated | 0 to 999% | 1% | - |
| Efficiency | Calculated | 0 to 100% (Gross/HHV) | 0.1% | - |
| Eficiency (Condensation) | Calculated | 0 to 125% (Net/LHV) | 0.1% | - |
| General Specifications | ||||
|---|---|---|---|---|
| Dimensions | 7.5 x 3.5 x 4.9 in (19.4 x 9.9 x 4.9 cm) | |||
| Weight | 12oz (350g) | |||
| Display | Color display screen; Size: 320 x 240 pixels | |||
| Keypad | 5 keys | |||
| Material | ABS-PC | |||
| Protection | IP42 | |||
| Connection | - Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm. Range up to 15 m (50 ft), depending on smartphone radio strength. Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy - USB |
|||
| Power supply | Rechargeable battery, USB power supply Li-Ion 5100 mA/h 3.6 V battery Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz Mains unit: 5 Vdc/2A |
|||
| Battery | Battery life > 8 h Charging time: Fully charge: < 6.5 h 50%: < 2.5 h |
|||
| Environmental conditions of use | Temperature: from -5 to 45 °C (23 to 113 °F) Hygrometry: in non-condensing conditions (< 85% RH) Maximum altitude: 2000 m (6561’) |
|||
| Storage temperature | -4 to 122 °F (-20 to 50 °C) | |||
Includes
- (1) Si-CA 030 Analyzer
- (1) O2 gas sensor
- (1) CO gas sensor
- (1) Flue gas probe with dual hose
- (1) Draft probe with silicon tube
- (1) Water trap with filter
- (1) AC power supply / charger
- (1) USB cable
- (1) Protective rubber holster
- (1) Internal wireless communication module
- (1) Soft carrying case
- (1) Quick Start Guide
- (1) Calibration certificate
- (1) Mobile app download
Resources
Sauermann Si-Ca 030 Analyzer Datasheet
Software / App
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
Download the Sauermann Combustion App for your Android or iOS devices!
The Sauermann Combustion app lets you control your Si-CA analyzer remotely, view measurement results in real time, and customize them before exporting in the format of your choice.
Features:
- Fast, easy wireless connection to any iOS or Android device
- Remote live view of combustion analysis data as list or graph
- Remote control to change settings
- Data saving, including automatic logging
- Report creation in PDF, CSV (for Excel) and XML formats
- Databases for customers, operators & equipment
