Description

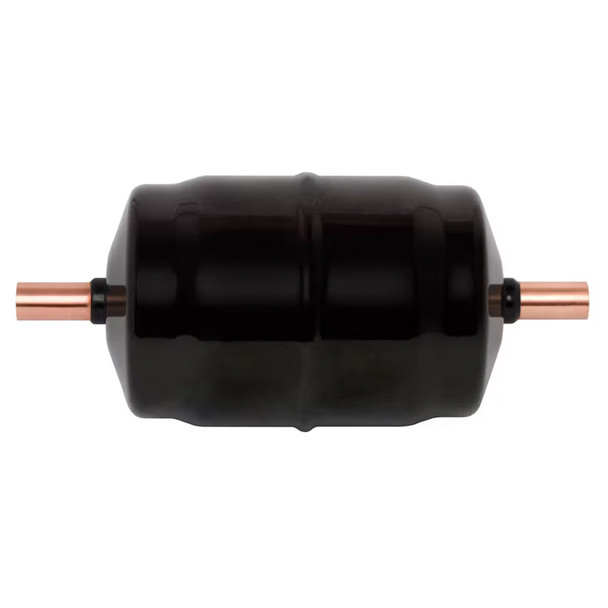

Parker LLD082 Liquid Line Filter Drier, 8 cu in Desiccant Volume, 1/4" SAE Flare
100% molecular sieve solid core to maximize water adsorption
The Parker Type LLD core-style filter-driers provide control of the most harmful contaminants in HVAC/R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today's high-performance air-conditioning and refrigeration systems. These filter-driers are ideal for air-conditioning and refrigeration OEM applications such as Residential & Commercial HVAC/R, Food Service Refrigeration, and Transportation AC/R.
Key Features & Benefits
- Complete contaminant control to protect and extend system life and ensure system reliability
- 100% molecular sieve solid core to maximize water adsorption
- High performance desiccant package provides high water capacity & acid capacity
- Best-in-class filtration capacity and efficiency for solid debris protection due to solid core design
- 1/4 in SAE flare fittings
- 10-micron outlet filter
- Suitable for use with HCFC, HFC, HFO, and HC refrigerants
- UL Listed for 650 psig rated pressure for R-410A
Specs
| LLD082 Filter Drier Specs | |
|---|---|
| Maximum Rated Pressure | 650 psi (45 bar) |
| Core Type | 100% molecular sieve solid core |
| Connections | 1/4 in SAE Flare |
| Outlet Filter | 10-micron |
| Salt Spray Test | 500-hour per ASTM B117 |
| Refrigerant Holding Capacity @ 100°F |
R-290: 3 oz (84 g) R-32: 5.7 oz (162 g) R-407A/C/F: 6.8 oz (193 g) R-410A: 6.2 oz (176 g) R-448A / R-449A: 6.5 oz (186 g) R-454B: 5.8 oz (166 g) |
Includes
- (1) Parker LLD082 Liquid Line Filter Drier
