Name: Retrotec US7100 Blower Door System with DM32X Gauge, Model 7000 Fan, SmartCloth Panel, and Frame
SKU: US7100
Price: 8200 USD
Availability: InStock

Description

Description

Retrotec US7100 Blower Door System with DM32X Gauge, Model 7000 Fan, SmartCloth Panel, and Frame

Powerful, light, diverse. The blower door revolutionized

Looking for a modified or high powered Blower Door or DucTester? Please contact us by phone, chat or email to get a quote for any Retrotec system.

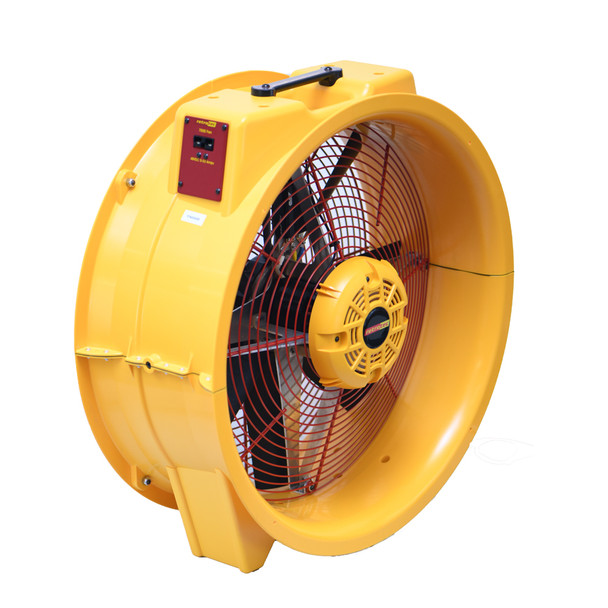

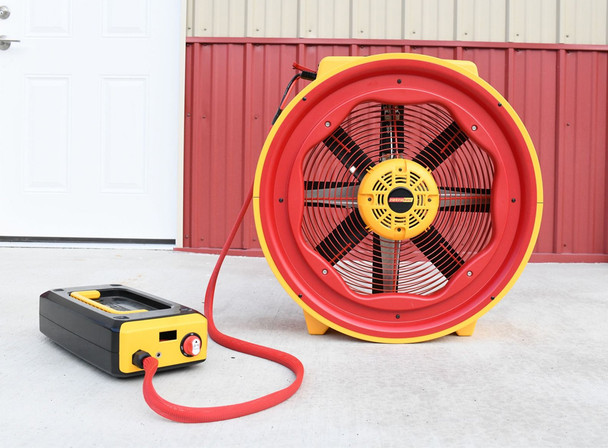

Introducing the all-new Model 7000: a groundbreaking blower door fan. Weighing in at just 23 lbs (10.4 kg)—over 30% lighter than its predecessors (33.5 lbs / 15 kg)—the Model 7000 sets a new benchmark for portability and efficiency. But the innovation doesn't stop there. The Model 7000 delivers even greater power than Retrotec's trusted Model 5000. Pair it with the cutting-edge DM32X gauge, and you've got the blower door reinvented—delivering a completely revolutionized testing experience. The future of airtightness testing starts here.

Key Features and Benefits

Remarkably lightweight. An astonishing 30+% lighter than other fans on the market
Extremely powerful. Reach higher CFM @ 50Pa than the Model 5000 Fan (in many scenarios, even more than the 6000 fan)
Built in accelerometer acts as an "auto tip" sensor. Fan will shut off if tipping is detected
Electronic Speed Control (ESC) takes the 48c DC Supply & conveys it to 3-phase to the motor for precision speed control and adjustment
New safety feature enables auto braking of the DC motor in the case of fan failure
Fans never go in wrong direction during multi fan test

Paired with the included DM32X Gauge, you can utilize:

Real Time Graphing & Data Logging
Built-in testing and training apps
Embedded & online manuals, videos, & resources

Specs

7000 Series Fan Specs
Max Flow, Free Air	7,850 CFM
Max Flow @ 50 Pa	7,358 CFM
Max Flow @ 75 Pa	7,054 CFM
Min Flow (Included Range B1 @ 60 Pa)	120 CFM
Min Flow (Optional Range 74 @ 50 Pa)	51 CFM
Min Flow (Optional Range 47 @ 50 Pa)	24 CFM
Min Flow (Optional Range 29 @ 50 Pa)	8 CFM
Dimensions	22" (55.9 cm) inlet dia, 9.75" (24.8 cm) long, 25" (63.5 cm) height
Weight	Fan Only: 23 lbs / 10.43 kg Fan + Ranges: 25.4 lbs / 11.52 kg Power Supply: 13.4 lbs / 6.08 kg
Flow Accuracy	±5%

DM32X Gauge Specs
Dimensions	5.8" x 3.6" x 1.4" (14.7 x 9.2 x 3.5 cm)
Weight	12 oz (340 g)
Power	4200 mAh LiPoly rechargeable battery. Integrated on board charging circuit. Up to 11 hours battery life on a single charge. (Battery life and charge cycles vary by use and settings; actual results will vary.)
Screen type	QVGA Color touchscreen LCD display
Screen dimensions	3.2" (8.2 cm) diagonal, 2.6" x 1.9" (6.6 x 5.0 cm)
Microcontroller	32 bit
Pressure channels	2 independent pressure channels ("A" & "B")
Pressure sensor type	Digital
Pressure range	DM32-10A (current version): -2,488 Pa to +2,488 Pa (-10 to +10 in W.C.)
Pressure resolution	0.1 Pa (0.004 in WC, 0.002 psf)
Pressure accuracy	DM32-10A (current version): ± 0.4% of pressure reading or ± .07 Pa @ 22°C ± 0.6% of pressure reading or ± .15 Pa @ 0 - 44°C ± 0.9% of pressure reading or ± 1 Pa @ 70°C
Pressure accuracy calibration meets	USACE, ASTM E779, CGSB-149.10, EN 13829, UK ATTMA TSL1 and TSL2, NFPA 2001, ISO 14520, EN15004, ISO9972
Temperature Ranges	Compensated: 32°F to 158°F (0°C to 70°C) Operating Storage: -13°F to 185°F (-25°C to 85°C) -40°F to 257°F (-40°C to 125°C)
Humidity Limits (non condensing)	0 to 95% RH
PC Connectivity options (MS Windows only)	Ethernet (direct or over network), USB (direct), Wireless via WiFi
WiFi 802.11 protocols	b/g/n
Recommended calibration interval	Every 5 years

The max flow of the fan will vary depending on the following factors: Voltage, frequency, barometric pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence
