## Description

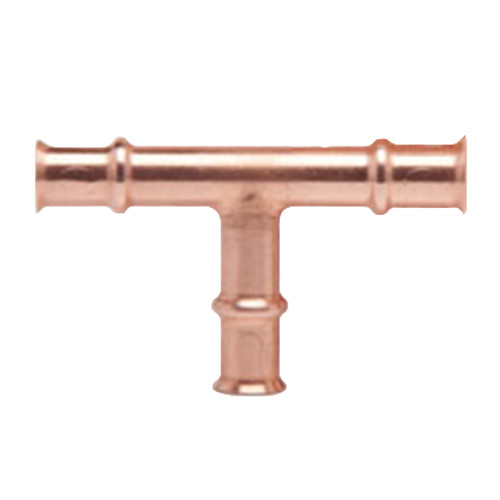

### RLS 1" Refrigerant Copper Press Tee

#### Original. Patented. Proven.

RLS Refrigerant Copper Press fittings are faster, easier and safer than brazing. They connect in seconds with no flame – so no fire hazards, no gas or brazing materials, no brazing equipment, no hot work permits, no fire spotters and no need to nitrogen purge. Converting from brazing to flame-free RLS Press Fittings can result in significant time and cost savings and substantially higher productivity. Eliminating the brazing process means installations can be completed up to 60% faster. The reduced labor costs – combined with the elimination of brazing materials and equipment, fire spotters and hot work permits – results in far lower total installed costs when compared to brazing.

#### Features

- Fully registered and listed to UL 207 for pressures up to 700 PSI
- No hot work permits required
- No solder related quality issues
- No need to nitrogen purge
- No flames, no gas, no fire hazards
- Reliable mechanical joints every time
- Proudly made in America
- Field proven since 2015, millions installed worldwide
- 15-year limited warranty*

Maximum Rated Pressure (MRP) | 700 PSI |

Continuous Operating Temperature | 250 °F |

Approved Refrigerants | R-32, R-125, R-134a, R-143a, R-152a, R-227ea, R-290, R-404A, R-407A, R-407B, R-407C, R-407F, R-407G, R-407H, R-410A, R-417A R-421A, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A, R-442A, R-444A, R-444B, R-445A, R-447A R-448A, R-448A, R-449A, R-449B, R-449C, R-450A, R-451A, R-451B, R-452A, R-452B, R-453A, R-454A, R-454A, R-454B, R-454C R-455A, R-456A, R-457A, R-458A, R-507A, R-513A, R-513B, R-515A, R-515B, R-600, R-600a, R-718, R-1234yf, R-1234ze, Ethylene Glycol |

**RLS warrants that its fittings will be free from defects in material and workmanship for a period of 15 years after shipment. Read warranty terms and conditions here.*

Specs

Maximum Rated Pressure (MRP) | 700 PSI |

Continuous Operating Temperature | 250 °F |

Approved Refrigerants | R-32, R-125, R-134a, R-143a, R-152a, R-227ea, R-290, R-404A, R-407A R-407B, R-407C, R-407F, R-407G, R-407H, R-410A, R-417A, R-421A, R-422A R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A, R-442A R-444A, R-444B, R-445A, R-447A, R-448A, R-448A, R-449A, R-449B, R-449C R-450A, R-451A, R-451B, R-452A, R-452B, R-453A, R-454A, R-454A, R-454B R-454C, R-455A, R-456A, R-457A, R-458A, R-507A, R-513A, R-513B, R-515A R-515B, R-600, R-600a, R-718, R-1234yf, R-1234ze, Ethylene Glycol |

Includes

**(1)**RLS 1" Braze-Free Tee
