Description

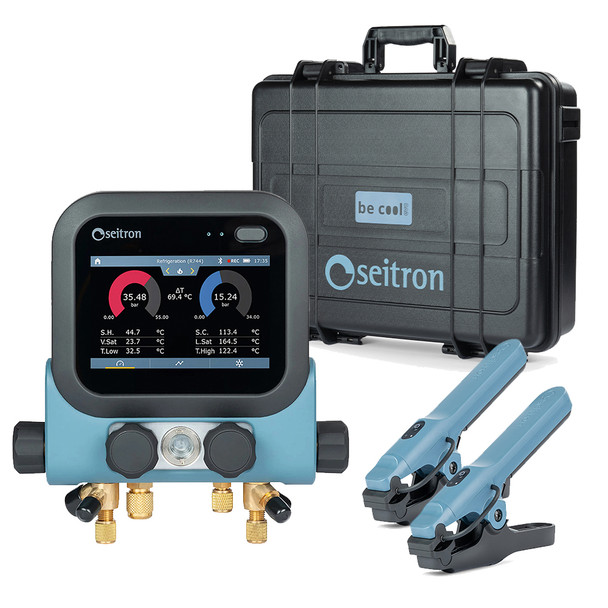

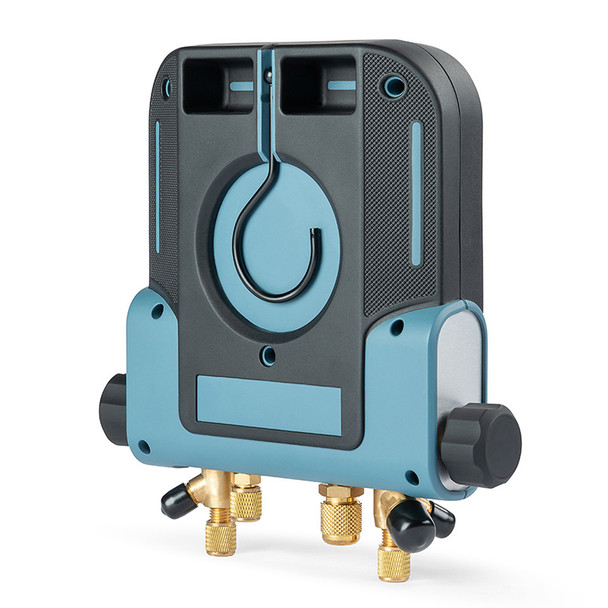

Seitron Be Cool Evo 4 Port Digital Manifold Basic Kit with Wireless Temperature Clamps and Hard Case
Advanced, App-Enabled HVAC/R Pressure & Vacuum Measurement
Be Cool M4S is the digital manifold with four-way valve block, equipped with a rechargeable battery. The instrument can be controlled and managed remotely with Seitron Smart Analysis App. The execution of measurements on refrigeration and air conditioning systems and on heat pumps are facilitated by the procedures for the automatic determination of parameters such as superheating or subcooling, in addition to the inversion of the pressures from the instrument.
Key Features & Benefits
- Inversion of pressures settable by the user on the instrument
- Automatic pressure reversal mode
- Selection from more than 80 refrigerant gases (including R410, R32, R404)
- Simple and intuitive interface on 5" color touch display
- Real-time data visualization, even using the mobile App
- Possibility to read and export data via USB connection
- Suitable for the start-up, assistance and maintenance of refrigeration and air conditioning systems and heat pumps
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from top manufacturers providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Specs
| Be Cool Evo Manifold Specs | |
|---|---|
| Power Supply | 3.7 Vdc Li-Ion rechargeable battery |
| Battery Charger | External 5 Vdc 2 A battery charger |
| Charging Time | 5 hours from 0% to 90% (6 hours for 100%) |
| Battery Life | 12 hours of continuous operation |
| Display Type | 5" IPS capacitive touch screen |
| Pressure Measurement Range | -14.5 - +800 psi (-1.0 - +55.0 bar) |
| Accuracy | ± 0,5 % FS |
| Resolution | 0.5 psi (0.03 bar) |
| Sampling Frequency | 0.5 seconds |
| Units of Measurement | psi, kg/cm², cmHg, inHg, bar, kPa, MPa |
| Overload | 1000 psi (69 bar) |
| Recording Time | 1382 hours (30-second intervals) |
| Pressure Fittings | 3 x 1/4 SAE* + 1 x 3/8 SAE*1 |
| Sensor Interface | PS/2*2 |
| Connectivity |
Communication Port: USB Type-C Bluetooth: Class 1 / Range: <100 meters (open field) |
| Protection Rating | IP54 |
| Operating Temperature | -14 .. 122 °F (-10 .. 50 °C) |
| Storage Temperature | -4 .. 140 °F (-20 .. 60 °C) |
| Operating Humidity | 20% .. 80% RH non-condensing |
| Storage Humidity | 10% .. 90% RH non-condensing |
| Be Cool Evo Temp Clamp Specs | |
| Battery Power | 2 x 1.5 V size AAA Alkaline (supplied) or NiMH rechargeable |
| Battery Life | 100 hours of continuous operation |
| Logging Time | 890 hours (30-second intervals) |
| Measurement Range | -58 - +302 °F (-50 - +150 °C) |
| Accuracy | ± 1 °C full range |
| Resolution | 0,1 °C |
| Units of Measurement | °C, °F |
| Process Connection | For pipes with diameter from 1/4" (6.35 mm) to 1"3/8" (34.925 mm) |
| Connectivity | Bluetooth: Class 1 / Range: <100 meters (open field) |
| Protection Rating | IP54 |
| Operating Temperature | -14 - +122 °F (-10 - 50 °C) |
| Storage Temperature | -4 - +140 °F (-20 - +60 °C) |
| Operating Humidity | 20% - 80% RH non-condensing |
| Storage Humidity | 10% - 90% RH non-condensing |
Includes
- (1) Seitron Be Cool Evo 4 Port Digital Manifold
- (2) Wireless Temp Clamps
- (1) Battery Charger and Cord
- (1) Hard Case
Resources
Seitron Be Cool Evo Digital Manifold Manual
