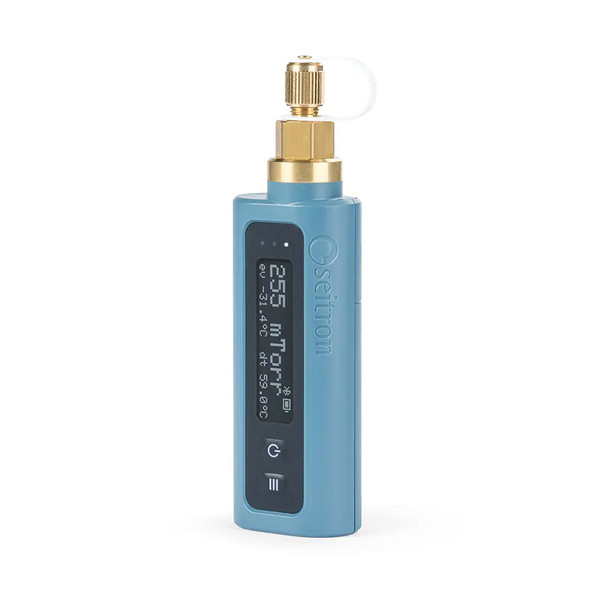

Seitron Be Cool Evo V1S Smart Micron Vacuum Gauge
Precision Vacuum Monitoring with App-Enabled Data Logging
Be Cool Evo V1S is the smart battery-powered digital vacuum gauge, suitable for measuring the vacuum of refrigeration systems and heat pumps, precisely and easily. Thanks to Bluetooth® communication it is possible to monitor vacuum data in real time from the manifold or from the Seitron Smart Analysis mobile app.
Key Features & Benefits
- Simple data visualization on wide display
- Real-time data monitoring and transfer via mobile App
- Offline data recording
Download the Seitron Smart Analysis App for your Android or iOS devices
The Seitron Smart Analysis app connects tools wirelessly to make jobs easier
Seitron Smart Analysis, compatible with Seitron Analyzers and with the Be Cool Evo Smart Kit, allows you to interact with your devices via Bluetooth® LE communication protocol. Pair your analyzer with your smartphone/tablet via Bluetooth® and:
- Perform automatic or manual analysis remotely
- Displays the analysis data in real time
- Load a previously saved analysis
- Save, remotely, your analyzes on the instrument
- Create a report (PDF, CSV, XML) and share it via WhatsApp, email
When used with the Be Cool Evo Smart Kit, the app also enables real-time monitoring of key HVAC system parameters such as pressure and temperature, measurement recording, and full data management directly from your smartphone or tablet, making inspection and maintenance operations faster, more accurate, and more efficient.
Specs
| Be Cool Evo Micron Gauge Specs | |
|---|---|
| Battery Power | 2 x 1.5 V AA Alkaline (included) or NiMH rechargeable |
| Battery Life | 200 hours of continuous operation |
| Display Type | OLED 128x32 |
| Recording Time | 1382 hours (30-second intervals) |
| Measurement Range | 1 - 20000 micron (1 - 2666 Pa) |
| Accuracy |
±10% rdg ±10 micron (1 .. 10000 micron) ±20% rdg (10001 .. 20000 micron) |
| Resolution |
1 micron [0 - +9999 micron] - 0,1 Pa [0 - +1333,2 Pa] 10 micron [+10000 - +20000] - 1 Pa [+1333,3 - +2666,6 Pa] |
| Vacuum Units | micron, inHg, Torr, psia, mbar, mbar, mTorr, Pa, kPa |
| Fitting | 1/4 SAE |
| Connectivity | Bluetooth: Class 1 / Range: <100 meters (open field) |
| Protection Rating | IP54 |
| Operating Temperature | -14 - +122 °F (-10 - +50 °C) |
| Storage Temperature | -4 - +140 °F (-20 - +60 °C) |
| Operating Humidity | 20% - 80% RH non-condensing |
| Storage Humidity | 10% - 90% RH non-condensing |
Includes
- (1) Seitron Be Cool Evo V1S Smart Micron Vacuum Gauge
Resources
Seitron Be Cool Evo V1S Vacuum Gauge Manual
