Seitron NOVO Combustion Analyzer 2 Gas with Built-In Printer, O2 and CO/H2 Sensors, Flue Gas Probe with Hose, and Hard Case
Designed to make combustion analysis quick and intuitive
Robust, reliable, and precise, the new Novo inherits the tradition of the Seitron analyzers and joins it with renewed software and hardware in order to offer a device easier to use. With a large 7" color touchscreen, simplified probe connection, and upgraded PRO Mode, Novo streamlines combustion analysis with real-time monitoring, intuitive diagnostics, and integrated data sharing tools.
Key Features and Benefits
- Pro Analysis Mode: Combustion analysis becomes visual with colored readings, graphs/charts, and more
- Cracked Heat Exchanger Test: A fast, reliable way to identify hazards before they become serious
- 7" touch display for easy menu navigation
- Dedicated probe with one simple connection
- Integrated water trap with LED backlight for easy maintenance
- Simultaneous measurement of combustion, gas pressure, and draft
- Dual range sensor technology
- Field replaceable, pre-calibrated sensors
- 15 Preprogrammed Fuels Including Natural Gas, Oil, Propane, & Biofuels
- Built in printer for on site reporting
- Long Life O2 Sensor with 4 Year Warranty
- High CO Protection up to 100,000 ppm
- Integrated manometer for draft and pressure
- NOx upgradeable for NO and NO2
NEW Cracked Heat Exchanger Test
Quickly detects potential cracks in forced-air furnace heat exchangers by comparing oxygen levels with the blower on and off. A fast, reliable way to identify hazards before they become serious.
NEW Optional Draft Probe
External probe for NoVO allows measurements at alternate flue points, providing greater flexibility and diagnostic accuracy. Ideal for technicians who need precision across multiple stack zones. Add on as an option above or learn more.
Discover Pro Analysis Mode
Seitron has further improved the PRO mode of Novo, allowing real-time monitoring of not only the gases, but also the gas pressure and draft. How does it work?
- Select Fuel Type & Equipment Type (80% Boiler, 90% furnace, water heater, etc)
- Watch & Stabilize your Combustion readings in the GREEN Zone for optimal combustion
- View Stoichiometric Chart / Graph
- Print or Email the results
Learn all that NOVO has to offer
Watch the full video to discover all the new features of Novo!
Display and Probe
The 7in display grants maximum visibility of all information along with quick and smooth browsing experience. Instead of three separate connections for temperature, draft and flue gases, it has just one simple connection. This new connection allows the user to connect the probe without looking, with an easy plug-n-play design.

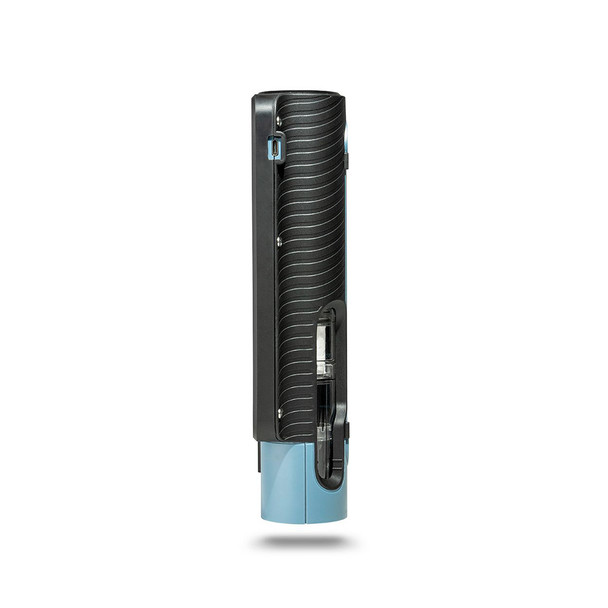

Water Trap with LED
The water trap design has been completely innovated to guarantee maximum performance and easy maintenance. A large inspection window with backlit LED allows the user to quickly and very easily check the water level and filter at any time.
Measure Combustion and Gas Simultaneously
Thanks to the possibility of measuring combustion parameters and gas pressures at the same time, Novo drastically reduces service time and limits the need to use different devices.
New Dual Range Sensor Technology
How many times have you had the doubt, should I use a high or low range sensor? Stop asking yourself, starting from today you will have just one sensor for both ranges. NOVO detects gas concentrations and automatically adjusts the scale, ensuring the sensor life and the measurement resolution.
Download the Seitron Smart Analysis App for your Android or iOS devices
App features:
- Live Viewing of Data
- Data logging
- Custom Report creation
- QR code or real-time Bluetooth
- Sharing via e-mail (csv, pdf, xml)
- Create Customer Profiles
- Custom reports with your logo
Specs
| NOVO Analyzer Specs | |
|---|---|
| Gas measurement sensors | 2 Sensors, O2 and CO-H2 Compensated |
| O2 Sensor |
Measurement Range: 0-25% Vol Resolution: 0.1% Vol Accuracy: ±0.2% Vol |
| CO Sensor (H2 compensated) |
Measurement Range: 0-500 ppm 501-8000 ppm Resolution: 0.1 ppm (0-500 ppm) 1 ppm (501-8000 ppm) Accuracy: ±2 ppm (0-40 ppm) ±5% rdg (40.1-500 ppm) ±10% rdg (501-8000 ppm) |
| Autozero | Automatic zero cycle with probe inserted in the stack |
| Dilution (where required) |
High CO protection up to 100,000 ppm User programmable threshold |
| Probe connection | Using a solid and robust connector it is possible to measure smokes values, temperature and draft at the same time |
| Self-diagnosis | Check of all functions and internal sensors with anomalies report |
| Temperature measurement | Double input for K thermocouple with mignon connector for measuring the differential pressure (output and input) |
| Ambient temperature measurement | Internal sensor or T2 thermocouple Input with Remote Probe |
| Gas valve pressure measurement | Using a pressure sensor and a direct connection to the gas valve with a dedicated tube it is possible to perform this measurement simultaneously with the other combustion control measures (input P3) |
| Draft measurement | Internal sensor connected to port P1 |
| Fuel types | Factory default and user programmable |
| Power supply | Battery pack Li-Ion |
| Battery charger |
Wall Plug 5Vdc 2A with USB Type A port Connection to the instrument with the same serial supplied communication cable |
| Charging time |
6 hours to charge from 0% to 90% (8 hours 100%) Charging can also be performed with the instrument connected to the PC (switched off) Charging time can last up to 12 hours depending on PC current output |
| Instrument Autonomy | 8 hours of continuous operation at 77 °F (25 °C) |
| Display | Color TFT 7" with CTP and Backlight |
| Suction pump | 1.0 l/min heads at the flue up to 135 mbar |
| Flow measurement | Internal sensor measuring pump flow rate (0.7 to 1.2 l/min) |
| Water trap / smoke sampling unit | Removable internal unit for water emptying and particulate filter replacement |
| Line filter | Replaceable cartridge, 99% efficiency with 20 µm particles |
| Ambient CO measurement | Separate measurement and printing of ambient CO values |
| Data communication port | USB with connector TYPE C |
| Bluetooth | Yes |
| Internal data memory | 100 MB |
| User data | 8 programmable user names |
| Protection degree | IP42 |
| Operating Temperature | 23 °F to 113 °F (−5 °C to 45 °C) |
| Storage Temperature | −4 °F ro 122 °F (−20 °C to 50 °C) |
Includes
- (1) NOVO Combustion Analyzer with Printer
- (1) Gas probe with 12" interchangeable tip
- (1) 10 ft Single Connection Hose
- (1) Integrated Water Trap
- (1) Manometer Hoses
- (1) AC Power Adapter & Cable
- (1) Foam Lined Hard Case
- (1) Calibration Certificate
