Description

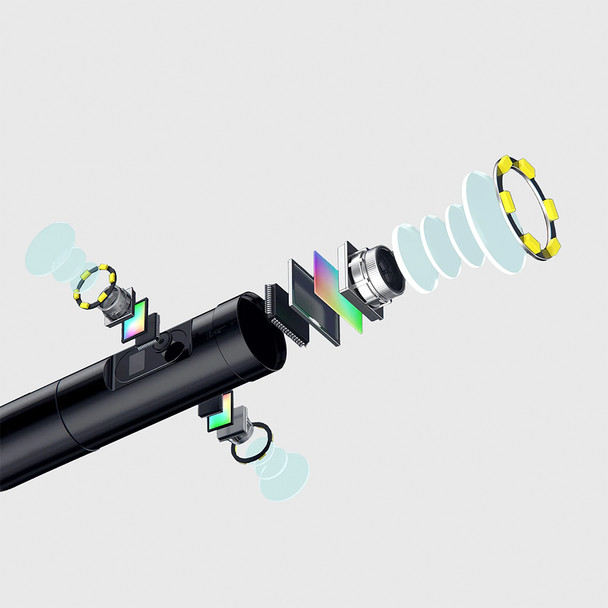

Teslong NTS500 7.9 mm Triple Lens Inspection Camera with 3.2ft Probe
3.2' probe length with triple lens tip
The Teslong NTS500 Inspection Camera can be used for mechanical inspection, car repair, plumbing fixes, electrical installs, homeDIY, wall upgrades, HVAC maintenance, and more. It is the perfect inspection camera for conducting non-invasive inspections of small areas, such as looking in an engine's combustion chamber through the spark plug hole or inside a wall without damaging the drywall. This stand-alone inspection camera is very easy to use and is IP67 waterproof with a tempered glass screen and drop resistance.
Key Features & Benefits
- Triple lens 7.9mm camera tip
- 5 inch HD screen
- 1920 × 1080 resolution photos
- LED ring lights illuminate the darkest areas
- 32 GB MicroSD card included to store photos and videos
-
Straight-viewing Camera
- 1.0 megapixel HD
- 1.18 to 3.15 inch focus
- 6 Adjustable High-intensity LEDs
-
Side-viewing Camera
- 1.0 megapixel HD
- .79 to 1.97 inch focus
- 1 Adjustable High-intensity LEDs
-
Short-focus-viewing Camera
- 1.0 megapixel HD
- .59 to 1.18 inch focus
- 1 Adjustable High-intensity LEDs
Capture Photos & Videos
- 5 in display
- 3500 mAh rechargeable battery
- Built-in 32 GB memory card
- IP67 waterproof rating
- 5 hours working time
Designed for Precision Inspection
-
Depth of field:
- Straight-viewing: 1.18 to 3.15 in
- Side-viewing: 0.79 to 1.97 in
- Short-focus-viewing: 0.59 to 1.18 in
-
Field of view:
- Straight-viewing: 78°
- Side-viewing: 78°
- Short-focus-viewing: 78°
- 1.0 MP
-
LED lights:
- Straight-viewing: 8
- Side-viewing: 1
- Short-focus-viewing: 1
Specs
| Monitor | |
|---|---|
| Screen Size | 5 in |
| Screen Resolution | 1280 × 720 pixels |
| Image Capturing Resolution | 1920 × 1080 pixels |
| Video Recording Resolution | 1280 × 720 pixels |
| Storage | 32 GB MicroSD card |
| Flashlight | 1 W Cree LED |
| Ports | Micro-USB charging port, MicroSD/TF card slot |
| Power Source | 3500 mAh lithium battery |
| Battery Life | 4 to 5 hours |
| Camera | |
| Type | Triple lens |
| Probe Diameter | 0.31 in (7.9 mm) |
| Probe Length | 3.2 ft (1 m) |
| Depth of Field |
Straight-viewing: 1.18 to 3.15 in Side-viewing: 0.79 to 1.97 in Short-focus-viewing: 0.59 to 1.18 in |
| Field of View |
Straight-viewing: 78° Side-viewing: 78° Short-focus-viewing: 78° |
| Megapixels | 1.0 MP |
| LED Lights |
Straight-viewing: 6 adjustable high-intensity LEDs Side-viewing: 1 adjustable high-intensity LED Short-focus-viewing: 1 adjustable high-intensity LED |
| Probe Stiffness | Flexible and sturdy |
| Ingress Protection Rating | IP67 (maximum depth of 3.3 ft for up to 30 minutes) per IEC 60529 |
Includes
- (1) Teslong NTS500 Inspection Camera
- (1) 7.9mm Triple Lens Probe 3.2ft
- (1) 32GB MicroSD
- (1) Micro-USB Charging Cable
- (1) Hook and Magnet
- (1) Case
Resources
Teslong NTS500 Inspection Camera Manual
