Description
Teslong TD450s Articulating 8.5 mm Single Lens Inspection Camera with 5ft Probe
5' probe length with 2 way 210° articulating tip

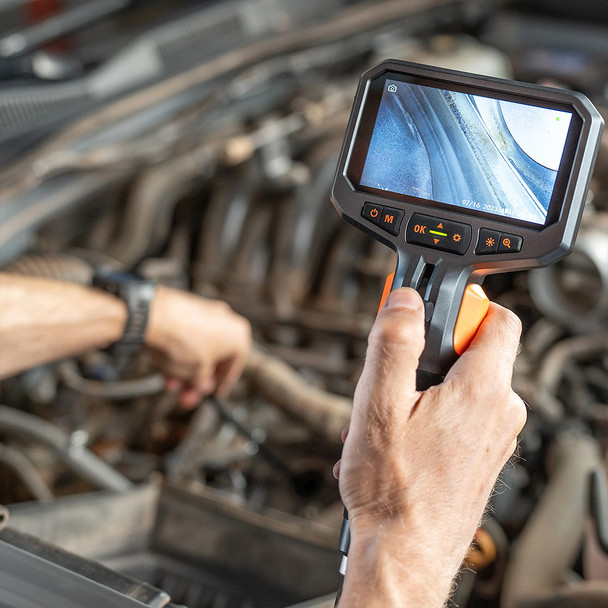

The TD450S is a portable, handheld, multi-function inspection camera. The lever located on the handle articulates the camera to look in different directions, while the monitor takes photos or record videos. Easily document your work to reference later or to share with your customers. This is perfect for many applications, such as inspecting engine cylinders, airplane wings, wall boards, and brake systems.

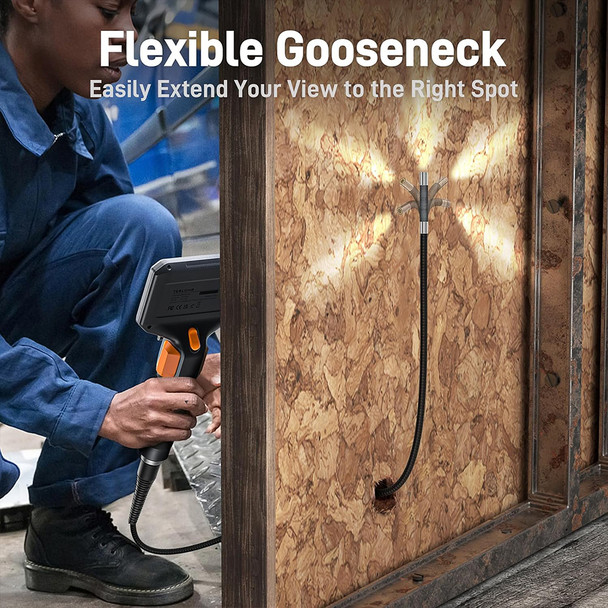

The 5-foot-long probe is bendable, but still fairly stiff to hold its shape well and allow you to form it and insert it into a space. Once it's in position, you can use the control wheel to articulate the tip through 210-degrees of movement.
Key Features & Benefits
- Two-way 210° articulation on a 5.08 ft probe
- 8.5 mm diameter camera probe
- 1920 × 1080 resolution photos and videos
- LED ring lights illuminate the darkest areas

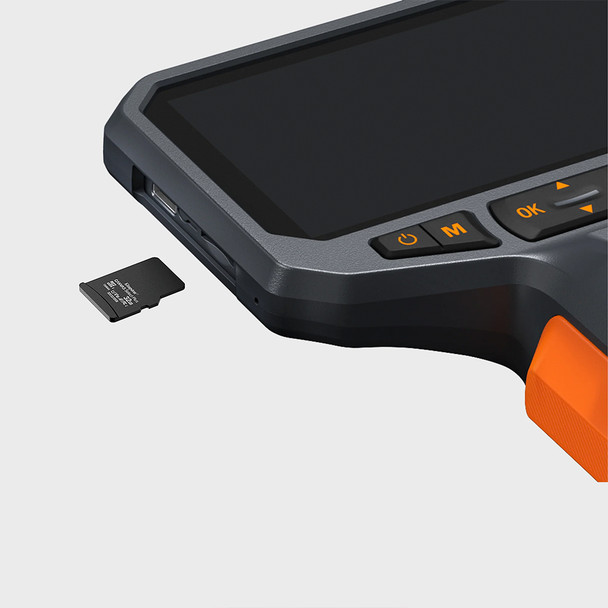

- 32 GB MicroSD card included to store photos and videos
-

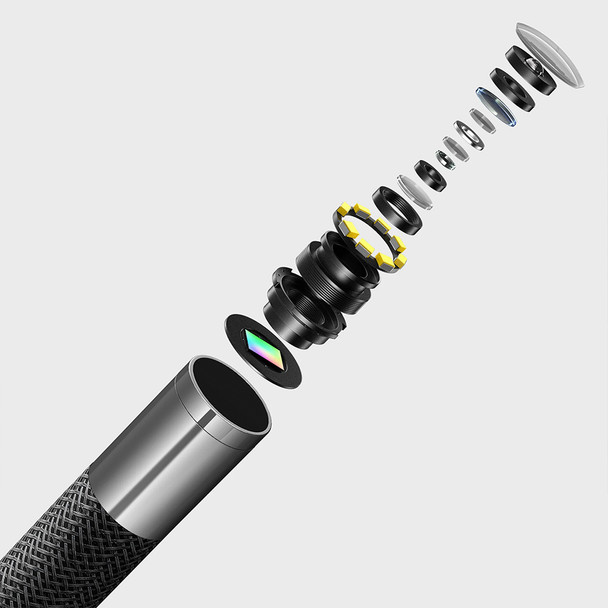

Straight-viewing Camera
- 2.0 megapixel HD
- .79 to 3.94 inch focus
- 8 Adjustable High-intensity LEDs
Two-Way 210° Articulation
Responsive articulation enables you to control the scope's tip with precise movement so that you can navigate to your target area quickly and stay in position with locking capability.

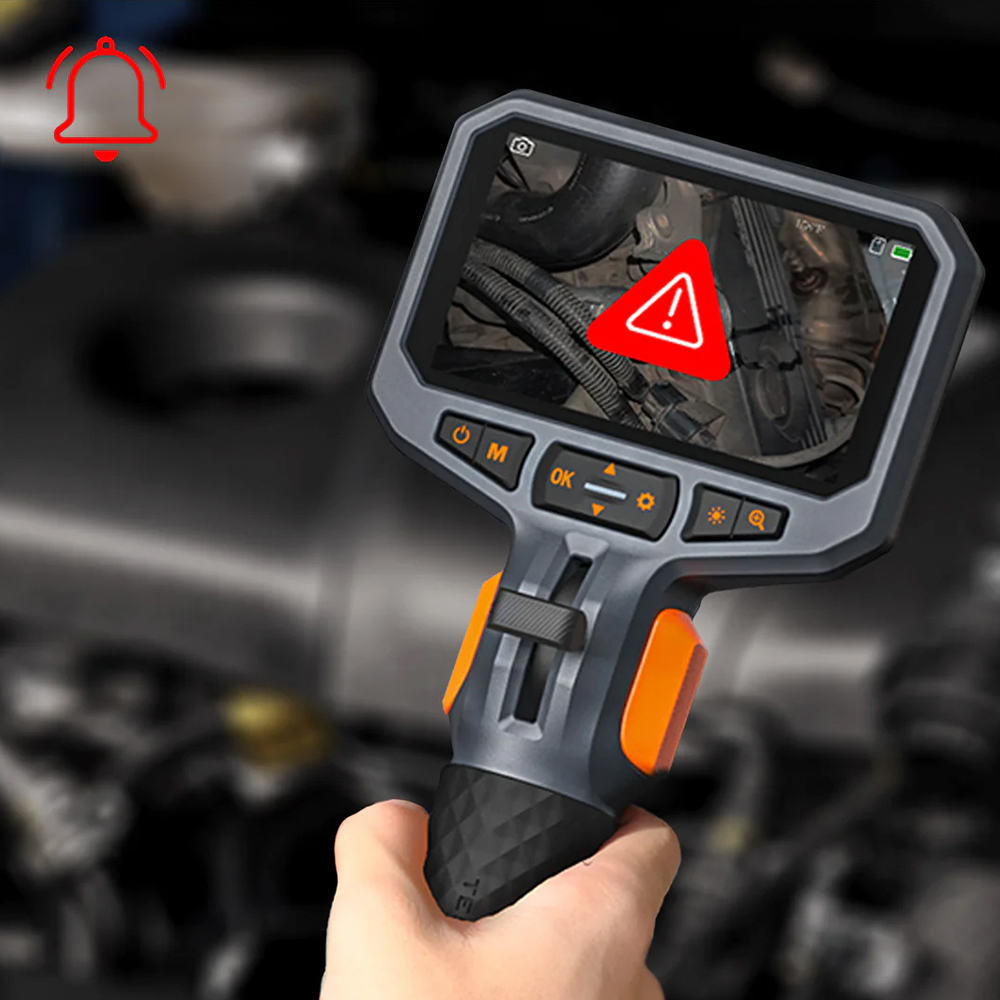

Intelligent High-Temp Safety
Using the camera and LED lights may result in the camera working above the ambient room temperature. When performing inspections in an environment such as a hot garage, take note of the device's temperature to avoid overheating. The TD450S activates its Auto Alarm & Shutdown feature when the probe temperature exceeds 158°F (70°C) to prevent any damage.

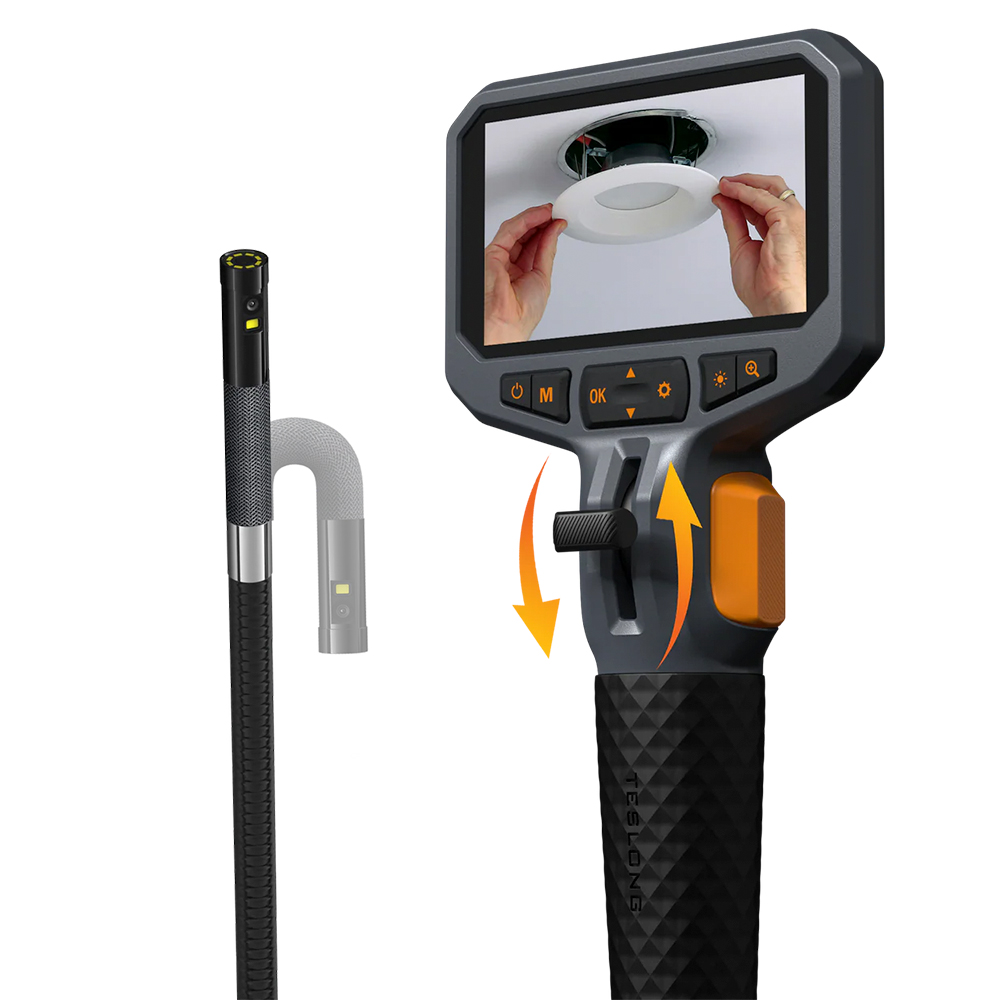

Articulation Control Lever
The TD450S articulation lever is an efficient and ergonomic means of steering the camera towards a subject in almost any hard-to-reach location.
Specs
| Monitor | |
|---|---|

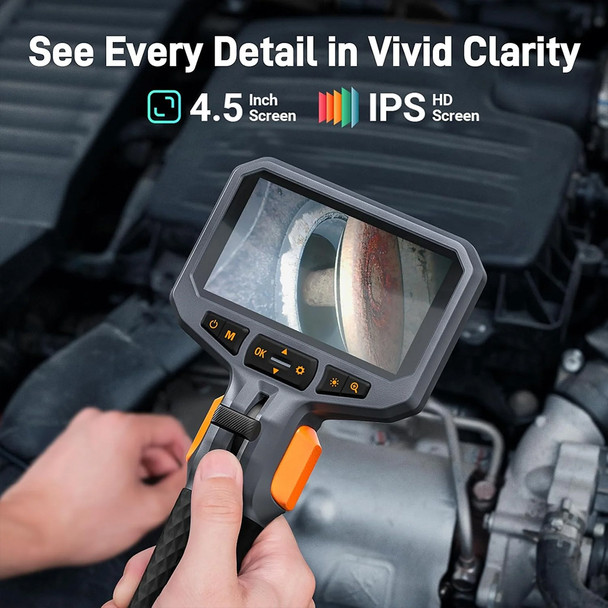

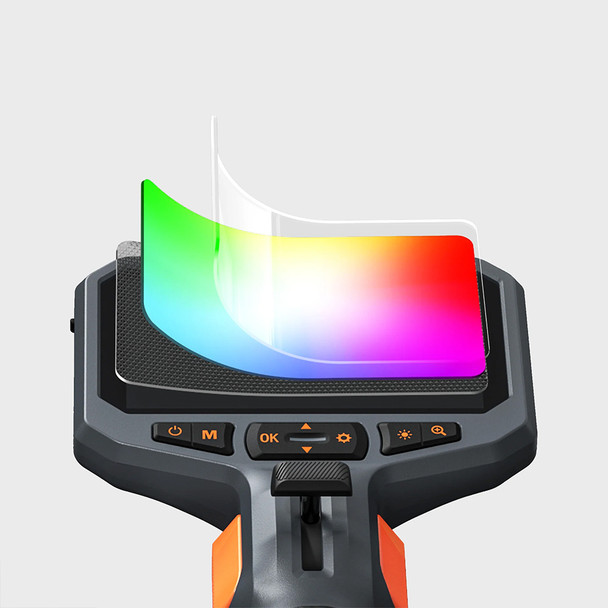

| Screen Size | 4.5 in |
| Screen Resolution | 854 × 480 pixels |
| Image Capturing Resolution | 1920 × 1080 or 1280 × 720 pixels |
| Video Recording Resolution | 1920 × 1080 or 1280 × 720 pixels |
| Storage | 32 GB MicroSD card |

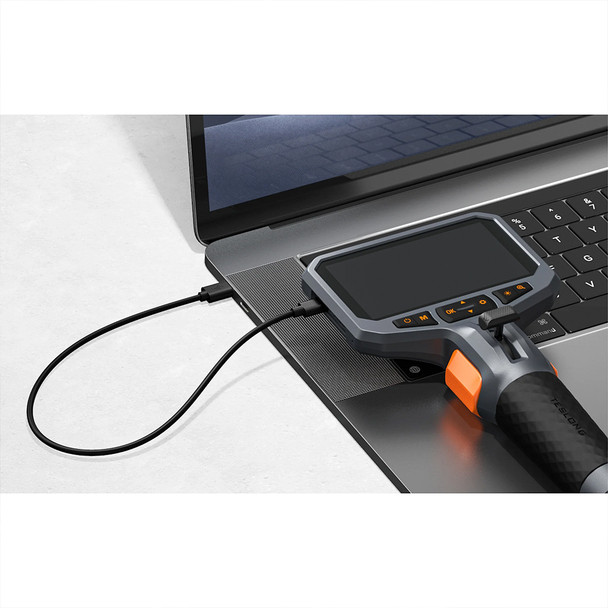

| Ports | USB-C charging port, MicroSD/TF card slot |
| Power Source | 3000 mAh lithium battery |
| Battery Life | 3 to 4 hours |
| Camera | |
| Type | Single lens |
| Probe Diameter | 0.33 in (8.5 mm) |
| Probe Length | 5.08 ft (1.55 m) |
| Articulation Angle | 210° |
| Depth of Field | 0.79 to 3.94 in |
| Field of View | 70° |
| Megapixels | 2.0 MP |
| LED Lights | 8 adjustable high-intensity LEDs |
| Probe Stiffness | Stiff but flexible |

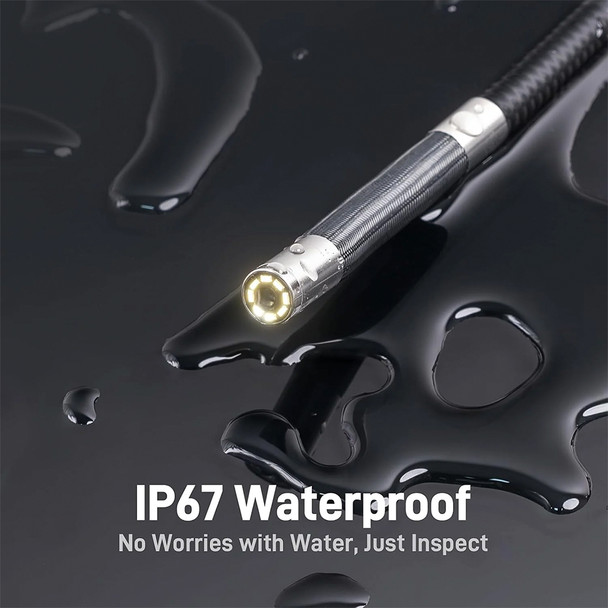

| Ingress Protection Rating | IP67 (maximum depth of 3.3 ft for up to 30 minutes) per IEC 60529 |

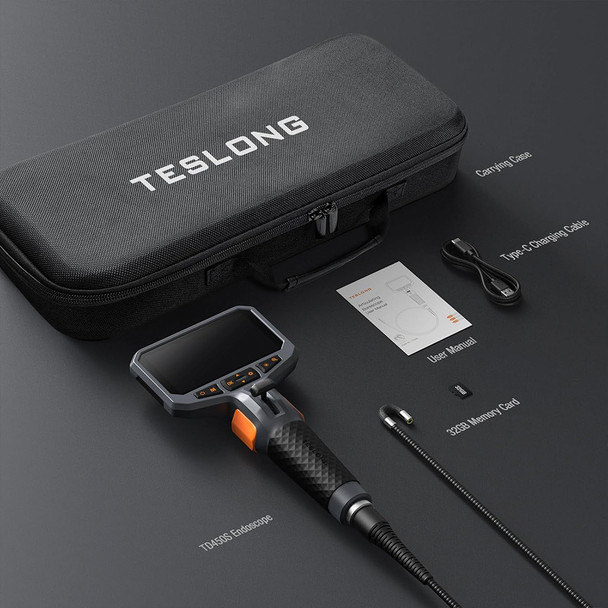

Includes
- (1) Teslong TD450s Inspection Camera
- (1) Articulating Single Lens Probe 5ft
- (1) 32GB MicroSD
- (1) USB-C Charging Cable
- (1) Hook and Magnet
- (1) Case
Resources
Teslong TD450s Inspection Camera Manual
