Description
Testo 512-1 Digital Differential Pressure Measuring Instrument with Smart App Connection
Differential pressure measurements fast, easy and precise up to 80 inH2O
With the compact differential pressure measuring instrument testo 512-1 (0 to 200 hPa) you have the ideal solution for simple, fast and precise measurement of gas flow and static gas pressure on heating systems, for checking filters on air conditioning systems and for Pitot tube measurement in ventilation ducts. The testo Smart App supports you with useful functions such as configuration, display (also as second screen) and storage as well as documentation of the measured values directly in the App.
Differential pressure measurement fast, easy and precise: This is what the compact measuring instrument testo 512-1, which measures pressures up to 200 hPa, is all about. In practical use, it convinces with its flexibility and variety of applications. Checking the gas pressure on burners by measuring gas flow pressure and static gas pressure is just as quick and precise as checking filters and Pitot tube measurement in the ventilation duct. The position-independent differential pressure sensor ensures reliable and highly accurate measurement results. The testo Smart App for smartphones and tablets supports you with these functions: configure measuring instrument, display graphical measured value curve, save measurement data, manage customers and measuring sites, documentation on site, and E-mail dispatch of the report.
Key Features and Benefits
- Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
- Reliable measurement results due to position-independent differential pressure sensor with high accuracy
- Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
- Audible alarm sounds if a limit value is exceeded
- Durability through compact design with robust housing
Specs
| Differential Pressure | |
|---|---|
| Measuring range | 0 to +80 InH2O / 0 to +200 hPa |
| Accuracy | ±(0.0 InH2O + 1 % of mv)± digit (0 to 10.00 InH2O) / ±(0.3 Pa + 1 % of mv)± digit (0 to 25.00 hPa) ±(0.0 InH2O + 1.5 % of mv)± digit (25.0 to 80.00 InH2O) / ±(0.1 hPa + 1.5 % of mv)± digit (25.0 to 200.00 hPa) |
| Resolution | 0.000 InH2O (0 to + 0.8 InH2O)) / 0.001 hPa (0 to + 2.0 hPa)) 0.00 InH2O (2.01 to + 8.0 InH2O)) / 0.01 hPa (2.01 to + 20.0 hPa)) 0.04 InH2O (20.1 to + 80.0 InH2O)) / 0.10 hPa (20.1 to + 200.0 hPa)) | General |
| Weight | 6.7 oz. / 190.0 g |
| Dimensions | 6 x 2 x 1 in. / 146 x 60 x 28 mm |
| Operating temperature | -4 to +122 °F / -20 to +50 °C |
| Housing | ABS + PC / TPE |
| Protection class | IP40 |
| Battery type | 3x AA |
| Battery life | 120 h |
| Storage temperature | -4 to +122 °F / -20 to +50 °C |

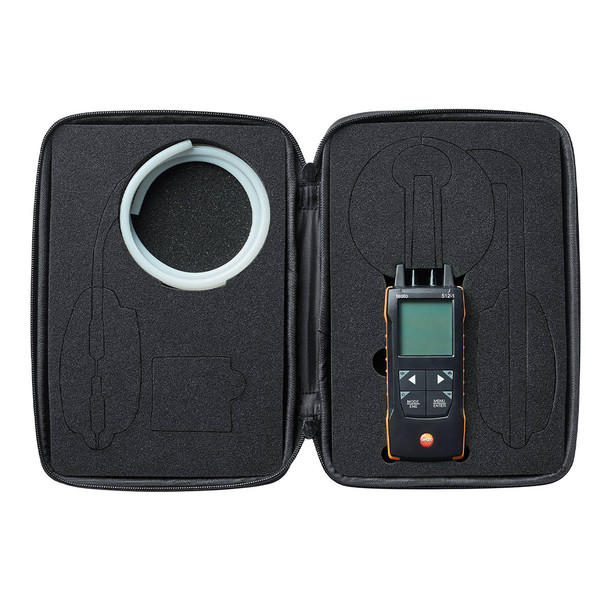

Includes
- (1) testo 512-1 - Differential pressure measuring instrument 0 to 200 hPa
- (1) Transport Bag
- (1) Calibration Cert

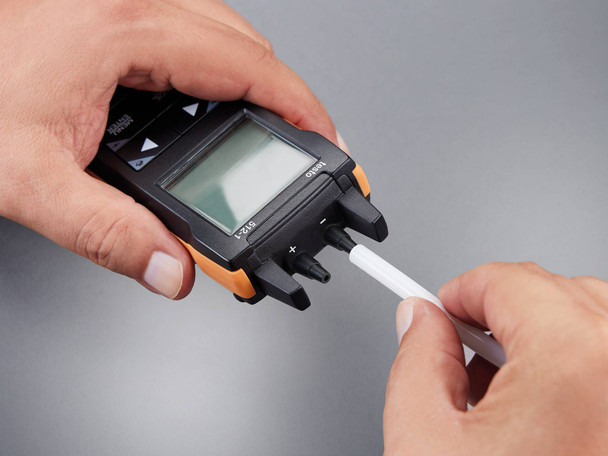

- (1) Connection hose made of silicone
- (3) AA Batteries
Videos
Resources
Testo 512 Data Sheet
Software / App
Download the Testo Smart App for your Android or iOS devices today!
- Simple and fast: Measurement menus for numerous applications provide optimum support in configuring and carrying out the measurement
- Clear graphical presentation of readings, e.g. as a table, for quick interpretation of results
- Create digital measurement reports including photos as PDF/CSV files on site and send via e-mail
