Description

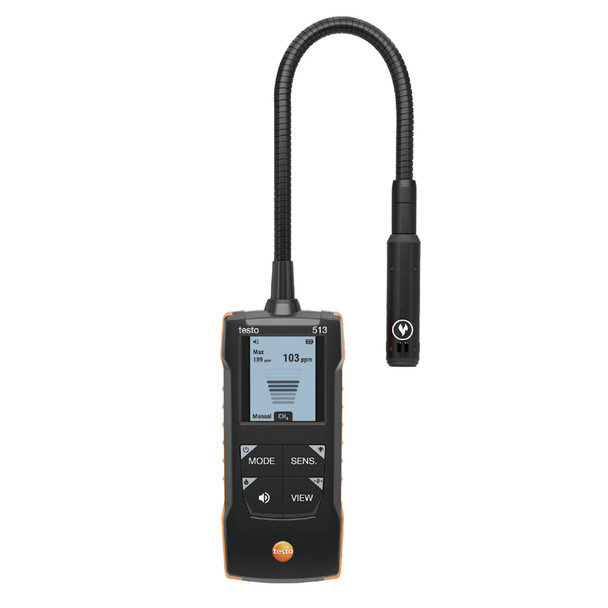

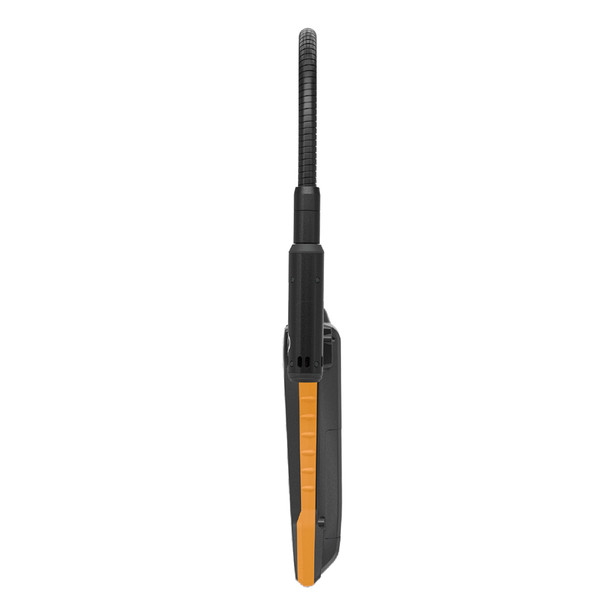

Testo 513 Combustible Gas Leak Detector with Flexible Probe, 3 g/a Sensitivity

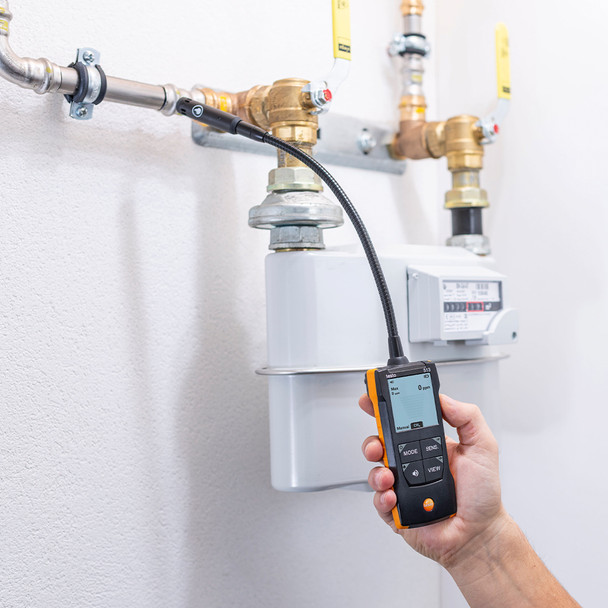

Pinpoint Combustible Gas Leaks Fast
The Testo 513 is designed for fast, reliable detection of combustible gas leaks in residential, commercial, and industrial applications. Capable of detecting methane, propane, butane, and hydrogen, it combines high sensitivity with a response time of less than two seconds, helping technicians quickly locate even small leaks during service, maintenance, and safety inspections.
A flexible 13-inch gooseneck probe makes it easy to access hard-to-reach areas around gas piping, appliances, and equipment. Automatic and manual zeroing functions support precise leak pinpointing, while selectable numeric and bar graph display modes provide clear visual feedback. The user-replaceable sensor helps minimize downtime and extend the life of the instrument.
Key Features and Benefits
- Detects methane, propane, butane, and hydrogen leaks
- High sensitivity down to 3 g/a
- Response and recovery time under 2 seconds
- Flexible 13-inch probe for difficult access points
- Automatic and manual zeroing functions
- Numeric and bar graph display modes
- User-replaceable sensor reduces downtime
- Optical and audible leak alarms
Specs
| Testo 513 Leak Detector Specs | |
|---|---|
| Detectable Gases | Methane (CH4), Propane (C3H8), Butane (C4H10), Hydrogen (H2) |
| Sensitivity | 3 g/a (High), 14 g/a (Low) |
| Response Time | < 2 Seconds |
| Resolution | 1 ppm 0.1 Vol.% (> 999 ppm) |
| Probe Length | 13 in. |
| Alarm Type | Visual and Audible |
| Display Modes | Numeric, Bar Graph |
| Sensor Life | 5 Years Under Normal Usage |
| Sensor Replaceable | Yes |
| Battery Type | 3 x AA Alkaline |
| Battery Life | Up to 10 Hours |
| Operating Temperature | 14°F to 122°F |
| Weight | 10.44 oz. |
| Dimensions | 5.31 x 2.36 x 1.10 in |
Includes
- (1) Testo 513 Leak Detector with Flexible Probe
- (1) Combustible Gas Sensor
- (1) Bag
- (3) AAA Batteries
- (1) Protecting Cap
