Description

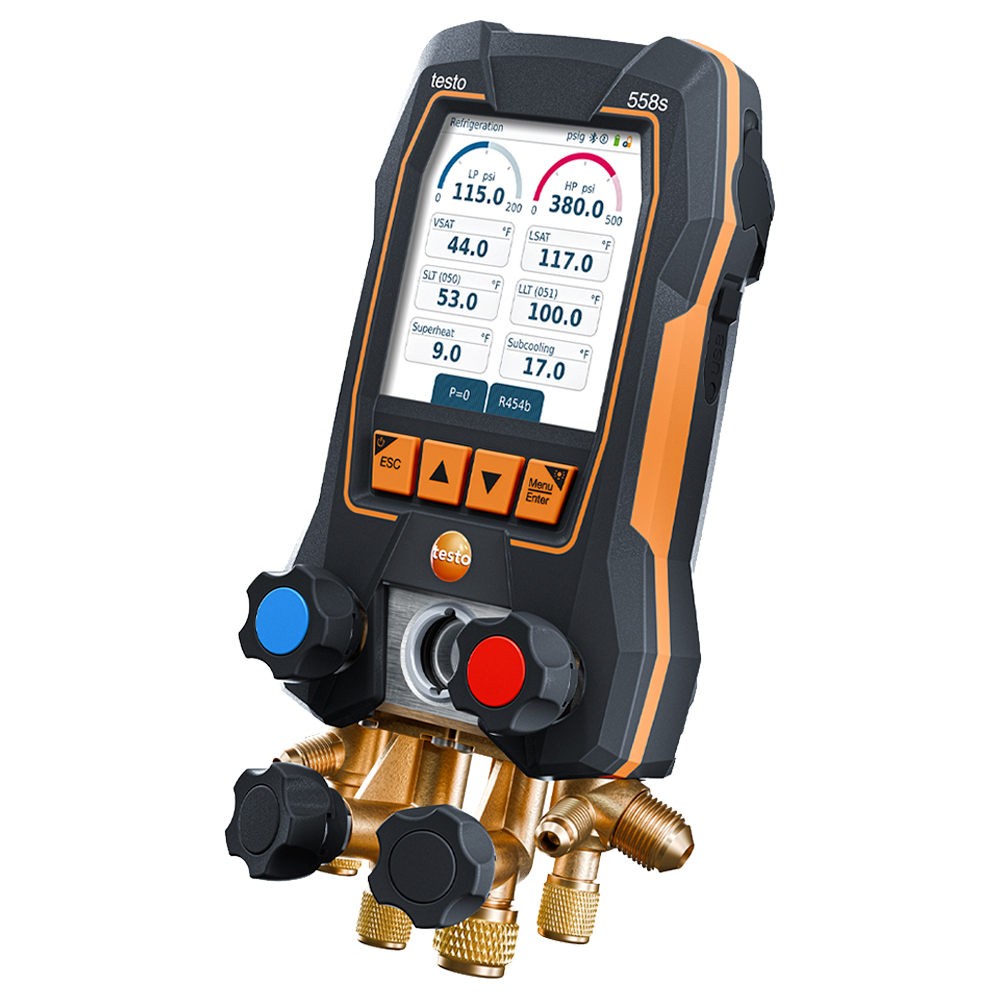

Testo 558s Smart Digital Manifold
The digital manifold with 4-way valve block and intuitive touchscreen
Providing a dynamic view of trending data in the palm of your hand - that's where digital manifold testo 558s excels. Interpreting data is even more important to ensuring an efficient refrigeration system with today's standards. Touchscreen operation makes configuration, control and documentation even easier. Alternatively, the instrument can be operated entirely via the testo Smart App or via buttons for working with gloves. To make everyday work even easier, the measurement results can be shown on a large color display in clear graphs as 30-minute data trends to make critical diagnostic decision even faster.
The high measuring pressure accuracy of 0.25 % full scale enables quick and reliable measurements supports getting the job done efficiently and limiting call backs. Thanks to the large number of stored measurement menus and connectivity across the entire Testo refrigeration portfolio, any application can be controlled via the manifold. For maximum safety, the manifold is compatible with flammable class A2L and A3 refrigerants. With over 90+ refrigerants stored in the manifold and regular Over-The-Air updates, the manifold is always up to date and ready to accomplish any task
Key Features & Benefits
- Dynamic app feel with touchscreen and graphical measurements showing data trends over 30 minutes
- Full flexibility thanks to unique operability via touchscreen, classic operation via keypad, and testo Smart App Integration
- Superior pressure measuring accuracy of +/- 0.25% full scale ensures accurate results
- Everything in one instrument: All applications in one manifold thanks to wireless connection to the testo Smart Probes, Vacuum pump, Clamp meter, and Refrigerant scale with Intelligent Valve
- A2L and A3 compatible for maximum safety even with flammable refrigerants
- Always ready to go dual power system consisting of batteries and rechargeable battery (USB-C)
Specs
| Testo 558s Manifold Specs | |
|---|---|
| Operating Temperature | -4 to 122 °F (-20 to +50 °C) |
| Storage Temperature | -4 to 140 °F (-20 to +60 °C) |
| Battery Type | Built-in rechargeable battery (USB-C): LI battery 18650 Replaceable battery: 3 AA alkaline batteries |
| Battery Life with Backlighting/Bluetooth® | ≤ 70 hours |
| Auto Power Off | After 10 minutes when not connected via Bluetooth® |
| Dimensions | 9.0 x 4.4 x 2.8 in (229 x 112.5 x 71 mm) |
| Weight | 2.7 lbs (1.3 kg) |
| Protection Class | IP54 |
| Display | Capacitive touchscreen |
| Bluetooth® Technology/Range | Bluetooth® 5.0 / 492 ft (150 m) |
| Data Logging | Available as an optional upgrade via in-app purchase (72h data logging) |
| Testo 558s Pressure Sensor | |
| Range | -14.7 to 870 psi (-1 to 60 bar) |
| Resolution | 0.1 psi (0.01 bar) |
| Accuracy (at 72°) | ±0.25 % fs |
| Connections | 3 x 7/16" + 1 x 5/8" - UNF |
| Overload | 940 psi (65 bar) |
| Testo 558s Temperature Sensor | |
| Range | -58 to 302 °F (-50 to +150 °C) |
| Resolution | 0.1 °F/C |
| Accuracy (at 72°) | ±0.9 °F (±0.5 °C) |
| Connections | 2 x plug-in (NTC) |
Includes
- (1) Testo 558s - Digital Refrigerant Manifold
- (1) Calibration Certificate
- (1) Manual
Resources
Testo 558s Digital Manifold Datasheet
Software / App
Download the Testo Smart App for your Android or iOS devices today!
Welcome to the new, digital age of measurement technology. With the testo Smart App, you turn your smartphone into a mobile, multi-functional command center for all applications involving refrigeration, air conditioning and heating systems. Together with the Bluetooth-enabled measuring instruments and Smart Probes from Testo, this equips you optimally for the future. And everything which comes after it.
All applications of the new digital manifolds on your smartphone: With the new testo Smart App, you can evaluate results even faster Additionally, it helps you to avoid measurement errors, as stored measurement programs guide you step by step through the configuration and measurements. With the integrated documentation functions, reports can be created on site, and digital measurement protocols, including photos, can be sent as PDF or CSV files directly by e-mail. You can also set up customer data and measurement sites at the touch of a button, and synchronization with the free testo DataControl PC software is done wirelessly via Wi-Fi.
Works with:

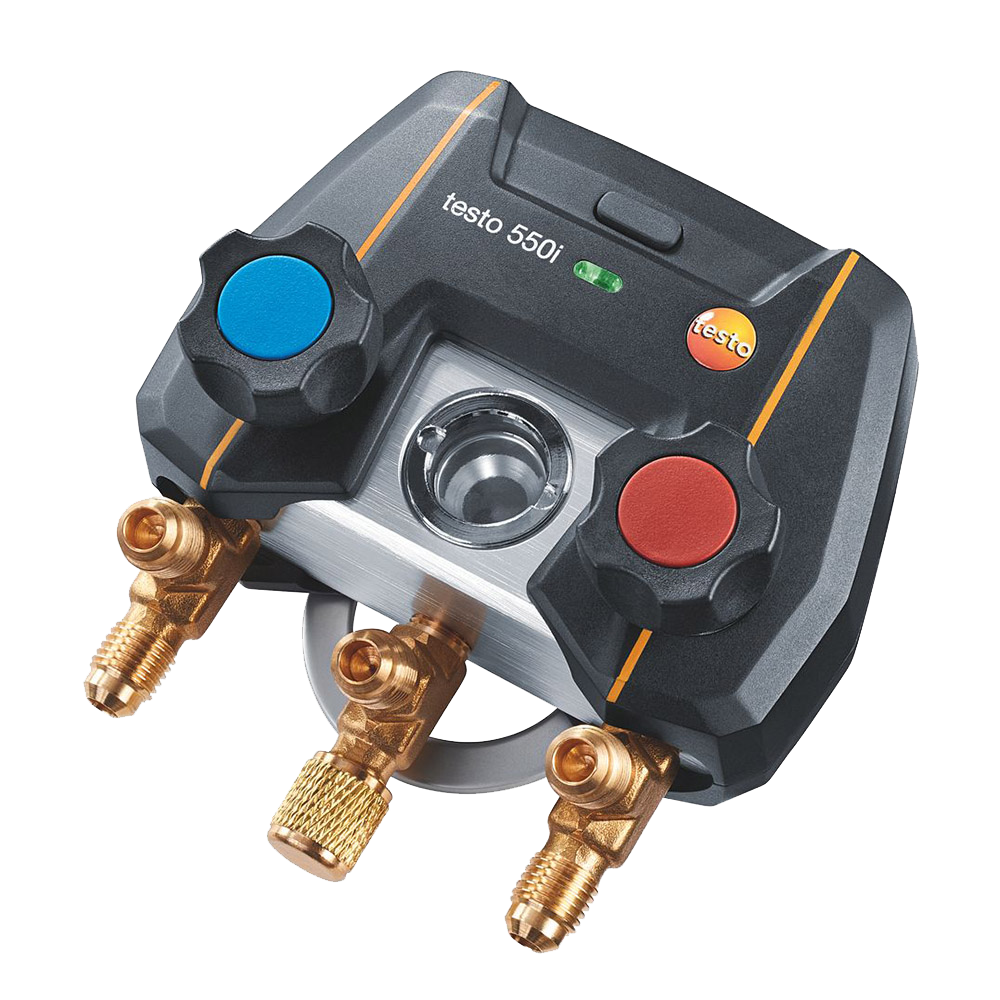

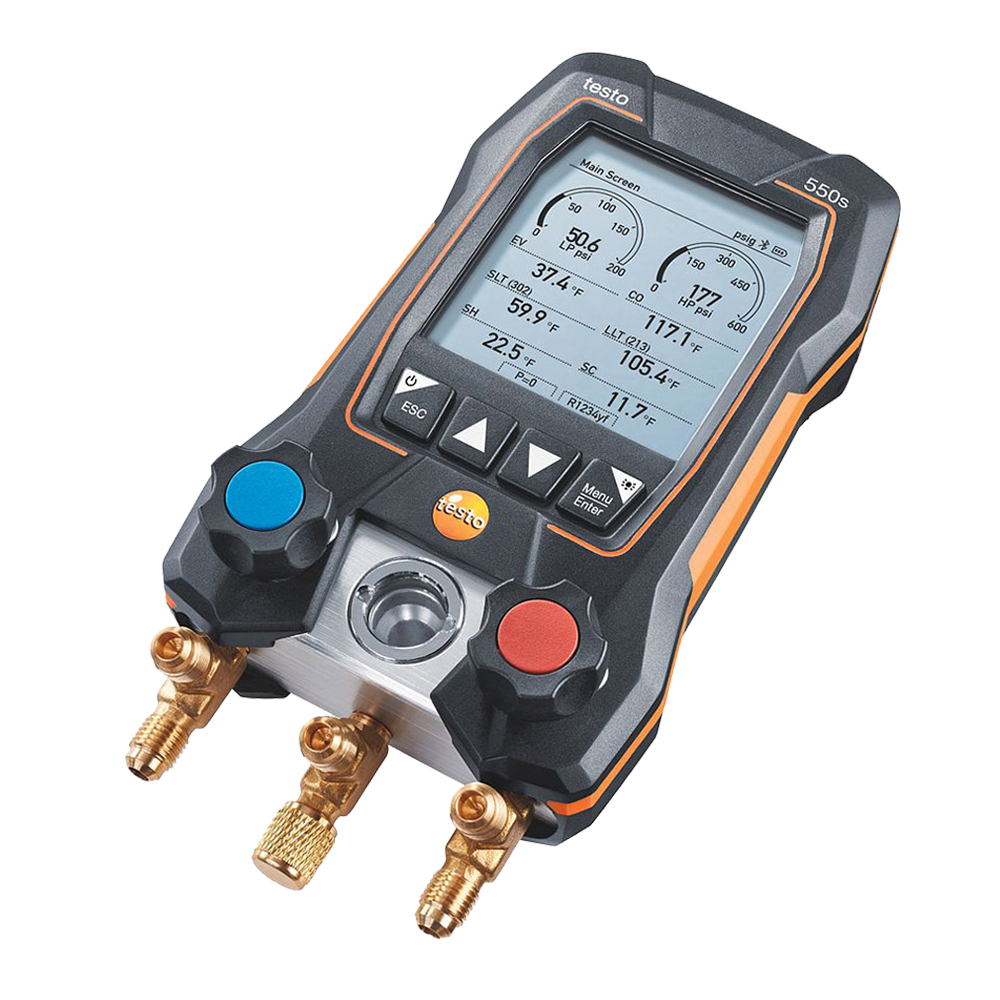

- All Testo 550s, Testo 558s, Testo 557s and Testo 550i digital manifolds
- All Testo smart probes
- Testo 552i vacuum gauge
- Testo 770-3 clamp meter
App Features:
- All in one - All Smart Probes and Bluetooth-capable Testo measuring instruments for refrigeration, air conditioning and heating systems and heat pumps combined in one App
- Quick and easy - Measurement menus for a wide range of applications facilitate quick and easy configuration and performance of the measurement
- Graph of values - Measured values are displayed in graphic form to enable quick reading of the results
- Document and share - Easy creation of digital measurement protocols and documentation including photos as well as sending via e-mail
