Description

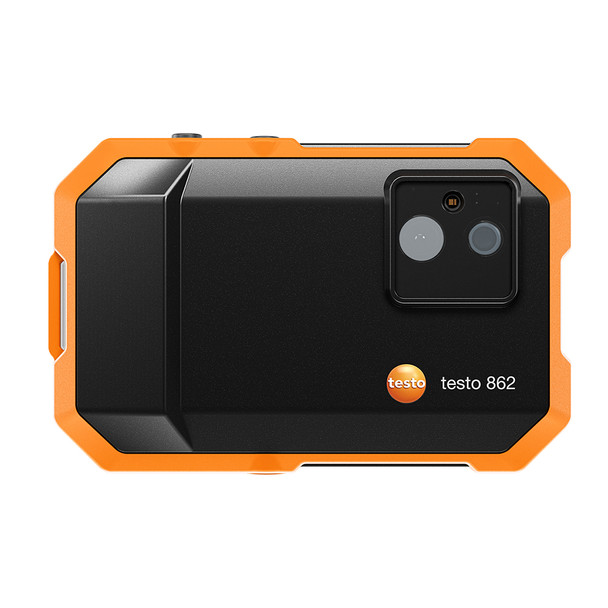

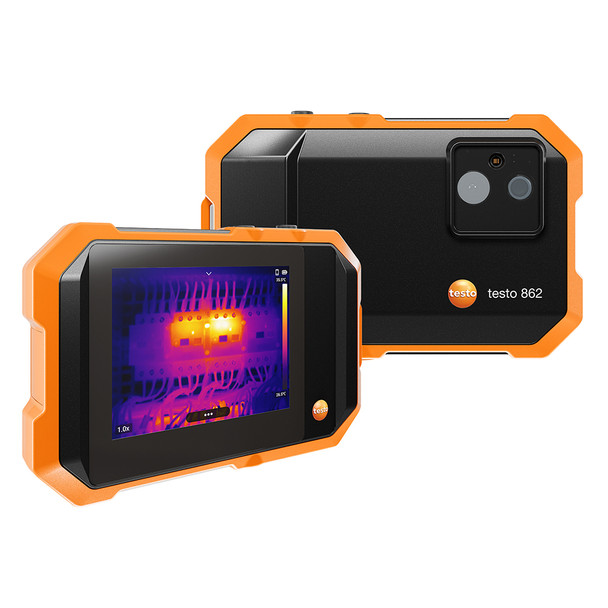

testo 862-1 Pocket Thermal Imager with 160 x 120 IR Resolution
Professional Thermal Imaging Made Fast, Simple, and Portable
The testo 862-1 Thermal Imager delivers thermal insights instantly in a compact, pocket-sized design built for HVAC/R, industrial maintenance, facility management, and building diagnostics. Whether performing routine inspections, troubleshooting equipment, or identifying hidden issues, the testo 862-1 helps professionals work faster and with greater confidence. Equipped with a 160 x 120 infrared detector and thermal sensitivity of less than 50 mK, the testo 862-1 captures clear thermal images that reveal temperature anomalies quickly. Fusion technology overlays thermal and visual images to provide added context, making findings easier to interpret, document, and communicate.
Built-in diagnostic tools such as hot and cold spot detection, automatic Delta T calculations, alarm functions, intelligent mold analysis, and DeltaHeat radiator diagnostics help streamline inspections and support faster decision-making in the field. Wireless connectivity with compatible testo instruments, including the testo 605i Thermohygrometer and testo 770-3 Clamp Meter, further enhances reporting and measurement workflows by integrating additional system data directly into inspections. Designed for demanding jobsite conditions, the testo 862-1 features an IP54-rated housing and drop protection up to 1.5 meters, providing reliable performance for everyday professional use.
Key Features & Benefits
- Sharp Thermal Images: 160 x 120 infrared resolution and thermal sensitivity of <50 mK reveal detailed thermal images. Fusion mode overlays thermal and visual images for improved clarity and interpretation.
- Intuitive Operation: Smartphone-inspired controls and an easy-to-use interface help simplify inspections and reduce learning time.

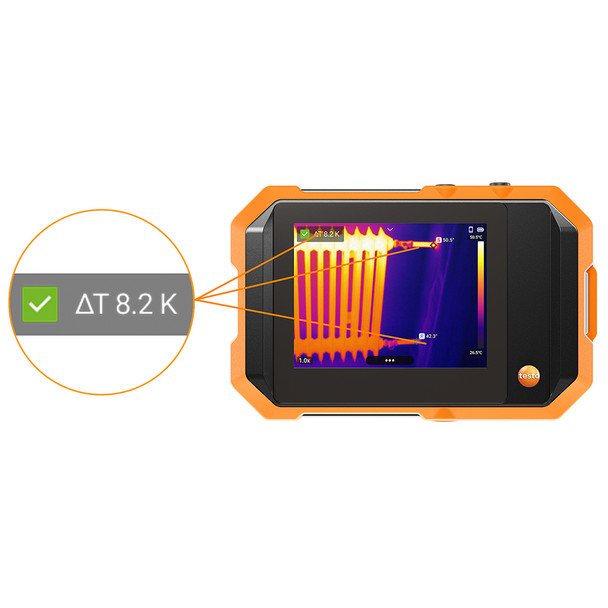

- Fast Diagnostics: Built-in alarms, hot and cold spot detection, automatic Delta T calculations, DeltaHeat radiator diagnostics, and intelligent mold analysis help accelerate troubleshooting and inspection workflows.
- Wireless Connectivity: Connect compatible testo 605i thermohygrometers and testo 770-3 clamp meters for additional measurement data and enhanced reporting capabilities.

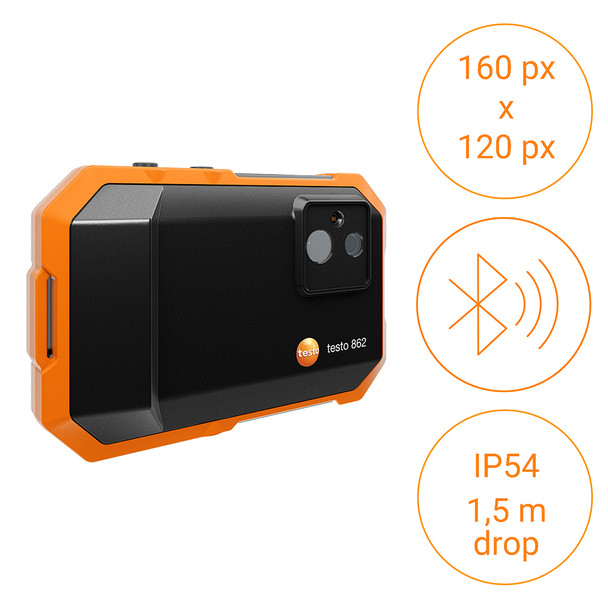

- Rugged Design: IP54-rated housing and 1.5 m drop resistance provide dependable performance in demanding field environments.
Specs
| 862-1 Thermal Imager Specs | |
|---|---|
| Infrared Resolution | 160 x 120 pixels |
| Thermal Sensitivity (NETD) | < 50 mK @ +25°C |
| Field of View (FOV) | 40° x 30° |
| Minimum Focus Distance | 9.8 in. (0.25 m) |
| Geometric Resolution (IFOV) | 4.62 mrad |
| Image Refresh Rate | 25 Hz |
| Focus | Fixed Focus |
| Spectral Range | 8 µm to 14 µm |
| Visual Camera Resolution | 2 MP |
| Minimum Object Distance (Visual Camera) | 7.9 in. (0.2 m) |
| Temperature Measurement Range | 14°F to 1022°F (-10°C to 550°C) |
| Accuracy | ±2°C / ±2% of reading (@ +21°C to +25°C ambient) |
| Emissivity Adjustment | 0.01 to 1.0 |
| Analysis Functions | Hot Spot, Cold Spot, DeltaHeat, Delta T, 5 Adjustable Spots, 3 Regions of Interest |
| Humidity Mode | Manual Humidity Analysis and Bluetooth Integration with optional testo 605i Thermohygrometer |
| Electrical Mode | Manual Electrical Analysis and Bluetooth Integration with optional testo 770-3 Clamp Meter |
| Image Modes | Infrared, Visual, Fusion, Picture-in-Picture, Humidity Mode |
| Video Recording | Non-Radiometric Video Recording (AVI) |
| Display Features | Fullscreen View, Digital Zoom up to 4x |
| Color Palettes | Iron, Rainbow, Rainbow HC, Cold-Hot, Blue-Red, Grey, Inverted Grey, Sepia, Testo, Iron HT, Humidity Palette |
| File Formats | BMT, JPG |
| Image Storage Capacity | 12 GB |
| Battery Type | Integrated Li-Ion Rechargeable Battery |
| Battery Runtime | Up to 3 Hours @ +25°C |
| Charging Interface | USB-C |
| Charging Time | Approximately 170 Minutes; 15-Minute Charge Provides About 25 Minutes of Operation |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% RH, Non-Condensing |
| Ingress Protection | IP54 |
| Drop Test Rating | 4.9 ft (1.5 m) |
| Shock Resistance | IEC 60068-2-27, 30 g |
| Vibration Resistance | ISO 2247:2000-03 |
| Weight | 0.47 lb (215 g) |
| Dimensions | 5.31 x 3.46 x 0.98 in. (135 x 88 x 25 mm) |
| Tripod Mount | 1/4" UNC Thread |
| External Probe Compatibility | testo 605i Thermohygrometer, testo 770-3 Clamp Meter |
| Mobile App Compatibility | testo Smart App (coming 2027) |
| PC Software | testo IRSoft (Free of Charge) |
| Data Interface | USB-C |
| Wireless Connectivity | WLAN (IEEE 802.11b/g/n) and Bluetooth Peer-to-Peer |
Includes
- (1) testo 862-1 Pocket Thermal Imager with 160 x 120 IR Resolution
- (1) Lanyard Strap
- (1) USB Type-A to USB Type-C Cable
- (1) Soft Case
