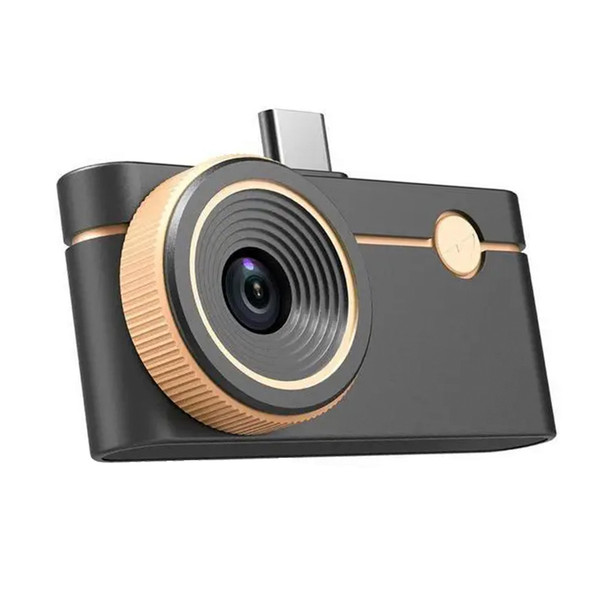

Thermal Master P3 Macro Focus Thermal Imaging Camera for iPhone and Android, 512x384 Super Resolution

Thermal Master P3 Macro Focus Thermal Imaging Camera for iPhone and Android, 512x384 Super Resolution

Designed for full-range diagnostics and precise PCB inspection

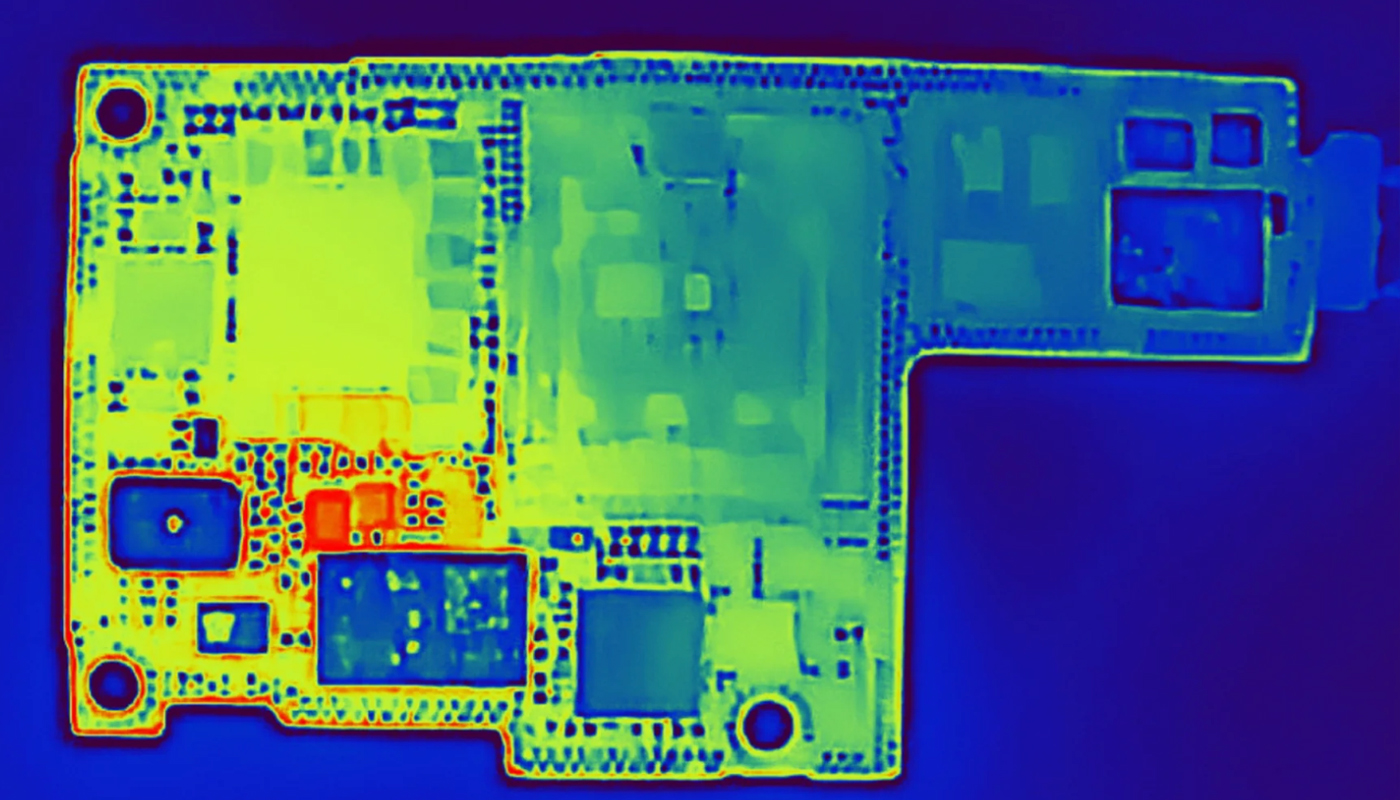

The Thermal Master P3 is a compact, high-sensitivity thermal camera built for precise diagnostics across PCB inspection, electrical systems, and HVAC applications. It combines a native 256 x 192 VOx sensor with enhanced 512 x 384 resolution, delivering clear thermal detail for identifying faults such as PCB leakage, hot spots, and temperature drift. The manual-focus macro lens supports close-range work, allowing detection of current leakage as low as 1 mA, making it especially useful for circuit-level troubleshooting.

With a measurement range of -20°C to 600°C (-4°F to 1112°F), ±2°C / ±2% accuracy, and NETD <35 mK sensitivity, the P3 is suited for both fine-detail and wide-range inspections. Its low power consumption, 25 Hz refresh rate, and compatibility with iOS, Android, and PC devices make it a flexible option for field technicians and shop use. Designed for reliability and portability, it provides consistent thermal imaging performance across industrial, automotive, and general maintenance environments.

Key Features & Benefits

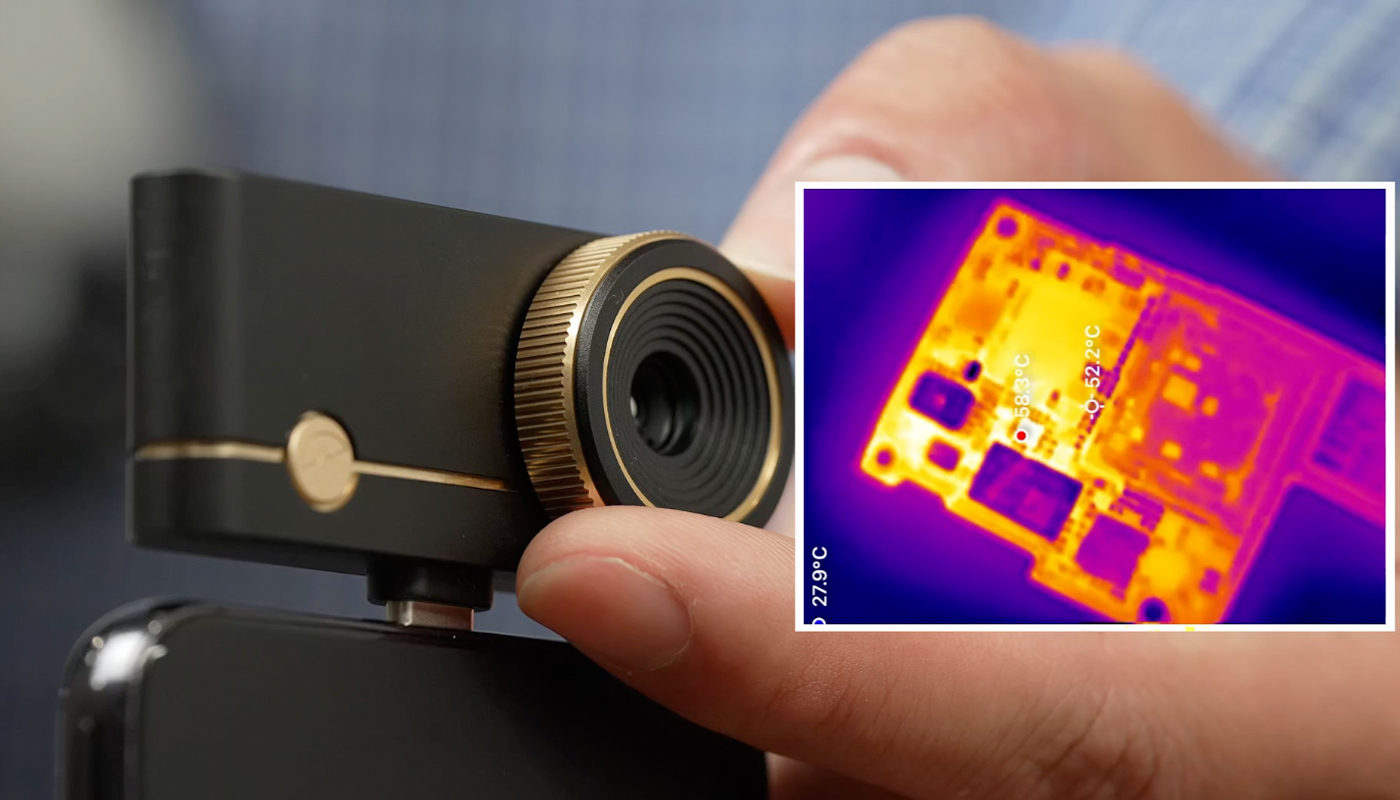

• 8 mm manual-focus macro lens detects PCB leakage as low as 1 mA
• 512 x 384 enhanced resolution built on a native 256 x 192 VOx IR sensor
• NETD <35 mK, 25 Hz refresh rate, and 0.32 W low power consumption

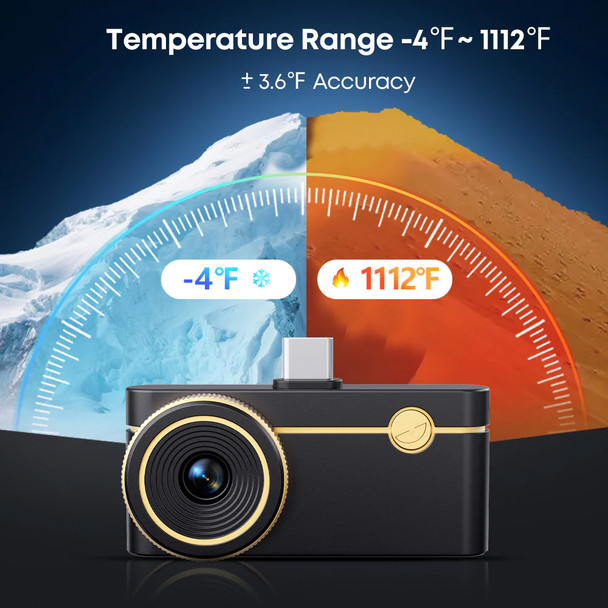

• Measures -20°C to 600°C (-4°F to 1112°F) with ±2°C / ±2% accuracy
• 12 color palettes and up to 15x digital zoom
• Compatible with Android, iOS, and PC devices

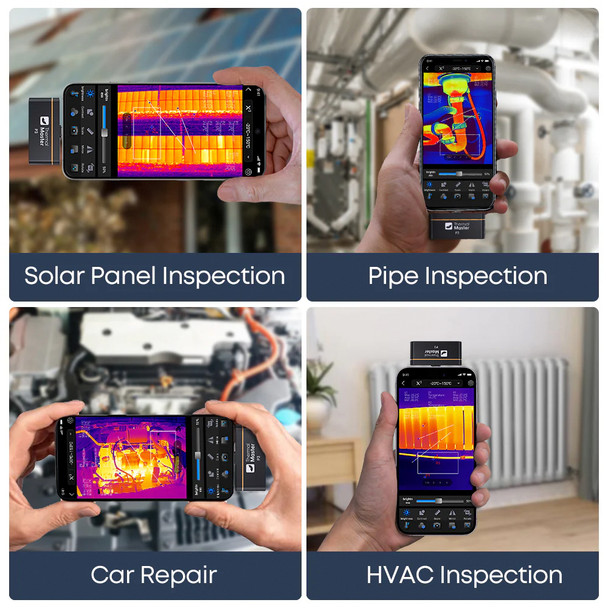

• Suitable for PCB inspection, electrical diagnostics, HVAC, industrial, home, and automotive applications

---
