Description

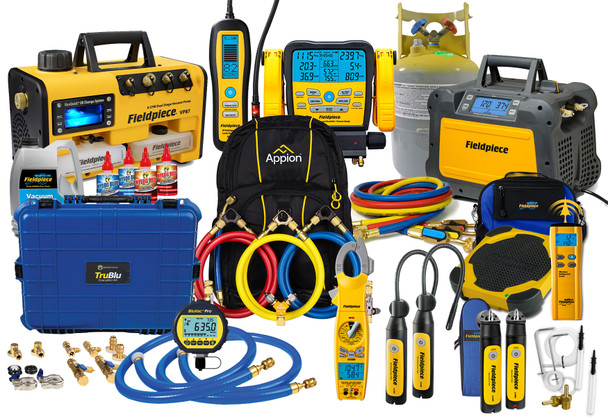

TruTech Tools Complete Vacuum, Recovery, and Commissioning Kit with Fieldpiece, Accutools, and Appion
All in one kit for Vacuum, Recovery and Commissioning
Kit Includes:
- (1) Fieldpiece VP87 RunQuick Dual Stage Vacuum Pump 8CFM
- (1) Fieldpiece MR45 Digital Recovery Machine
- (1) Fieldpiece JL3KM2 Job Link Dual Manometer Kit
- (1) Fieldpiece SM380V Digital Manifold with Micron Gauge
- (1) Fieldpiece SC680 True-RMS Wireless AC Clamp Multimeter
- (1) Fieldpiece DR82 Infrared Refrigerant Leak Detector
- (1) Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
- (2) Fieldpiece JL3RH Job Link Flex Psychrometer Probe
- (1) Appion SPDKIT-R Recovery Speed Kit
- (1) AccuTools A10757-3 TruBlu Professional Evacuation Kit
- (1) AccuTools A10702 BluVac+ Professional Digital Micron Gauge with Coupler and Bluetooth
- (1) CPS HP5NG 3-Pack of 5' Premium SafeMate Hoses
- (1) CPS CRX430T Refrigerant Recovery Cylinder 30lb 400 PSIG
- (1) Fieldpiece OIL128 1 Gallon Vacuum Pump Oil
- (2) Viper RT201BP Nylog Blue Gasket - Thread Sealant for AC/R Systems
- (2) Viper RT200RP Nylog Red Gasket - Thread Sealant for AC/R Systems
Fieldpiece VP87 RunQuick Dual Stage Vacuum Pump 8CFM
The next generation of vacuum pumps.
The Fieldpiece VP87 Vacuum Pump shortens evacuation times and saves you time on the jobsite. This lightweight, portable but powerful pump lets you quickly and properly perform system evacuations and its large oil reservoir window gives you a clear view to assess the condition of the oil.
When you use the RunQuick Oil Change System, you can replace oil on the fly in under 20 seconds with no mess and no loss of vacuum.
The VP87 Vacuum Pump comes with a 3/4 HP DC motor that can even operate on voltage drops that come from long extension cords down to 85V. The pump offers an extra-wide base for stability and four in-line ports so you'll have easy hose routing for three different size hoses.
Key Features
- 8 CFM flow rate with 15 microns ultimate vacuum
- 3/4 HP DC motor for power-to-weight and low voltage operation
- RunQuick Oil Change System offers on-the-fly oil changes in seconds
- Backlit oil reservoir - allows you to view the condition of your oil and system
- Extra oil bottle storage
- Port Sizes: (1) 1/4", (2) 3/8", (1) 1/2" for easy hose connections
- Sturdy base stays upright
- Small footprint
- Quarter-turn gas ballast with LED indicator
- Convenient, removable cord storage

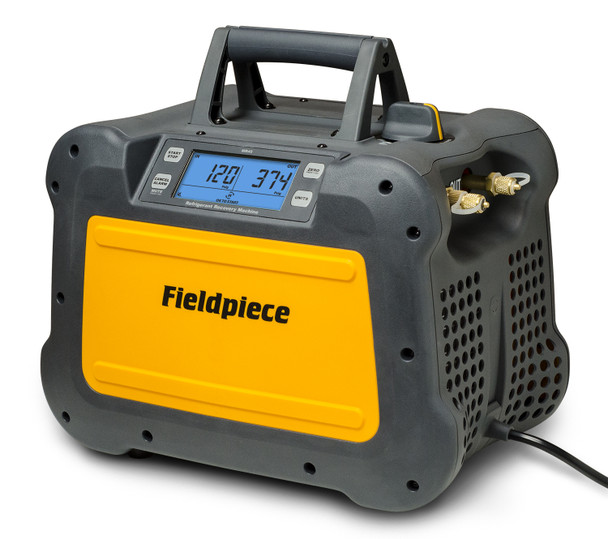

Fieldpiece MR45 Digital Recovery Machine
A2L ready including R32
The Fieldpiece MR45 recovery machine has onboard system monitoring that adjusts motor performance to handle liquid and run twice as fast on vapor. MR45 also steps up low voltage at the power plug to deliver full power to the motor where high voltage drop is a problem. With a powerful 1HP motor and super-sized condenser, this machine excels on longer and hotter jobs. The easy-to-read display, lightweight (22lbs), straight hose connection ports, and single dial make this machine user-friendly while being tough enough for everyday use, even in the rain.
- Starts and runs easily with lower voltage
- Minimizes liquid slugging and maximizes vapor recovery
- Easy access ports
- Water resistant to withstand direct rain
- Protects from voltage drop (runs as low as 95 VAC)
- Single dial self purge
- Twice the RPMs (3,000) and twice the horsepower (1HP) with DC Motor
- Extra large condenser cools faster, especially on hot days
- Only 22 lbs
- Water resistance to withstand direct rain
- Easy access ports
- Long life and low friction with ceramic cylinders
- Dual cylinder compressor
- Easy hose connections and built in power cord storage
- Large backlit display with status messages
- A2L ready including R32
Fieldpiece JL3KM2 Job Link Dual Manometer Kit
Do more with less clutter!
You know taking pressures from exact locations results in more precise diagnostics, so why be limited by hose length? The revolutionary new Dual Port Manometers from Fieldpiece aren't tethered by hoses, so you get readings from optimal locations on every system, every time.
Short hose length keeps things neat, and independent sensors allow for direct placement on test ports. Measure between zones without snaking a hose past the door where it can be pinched. Dial in gas pressure of a furnace. Optimize total external static pressure of equipment. Pinpoint duct leaks and restrictions. Increase comfort and do more.
Features:
- Reliable pressure regardless of location
- Measure real-time pressure drops
- Find inlet and outlet gas pressures
- Switchable P1 - P2 indicator
- Job Link System App compatible
- Easy zero to atmosphere
- 1000' long-range wireless
- Rugged metal tips
- All-in-one static, gas, and draft pressure
- Accurate and stable measurements
- Measure between zones without snaking a hose under the door
- Strong rotating magnet
- Untethered usage
- Individual pressure readouts give you P1, P2, and pressure differential in real-time
- All accessories for static and gas applications included
- Document system health in Job Link App reporting
View static pressures or gas pressures from the new Fieldpiece manometer probes directly on the Job Link App -- up to 1000' away! Unlike traditional dual port manometers, the JL3MN probes work independently so you don't have to bother with long hoses. This modular freedom also gives you real-time differential pressures from across the job site. Place probes in precise locations regardless of system set up. From gas pressures of residential furnaces to the total external static pressure on commercial air handlers, you now have the versatility you've always needed.
Fieldpiece SM380V Digital Manifold with Micron Gauge
The Heart of Your Job
Designed for Performance
Knowledge, power and experience are packed into the newly designed SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.
From the extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass, to the wireless capabilities, data logging, and tightness test, the SM380V and SM480V are built so you can do your job easier, faster and better.
Simply Strong
The new SMANs are simply strong. The heavy duty casing, reinforced hook, water resistant, impact resistant screen, strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigors of field use.
Packed with Knowledge
The SM380V and SM480V are designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need
Data Logging
- Stores up to 9 jobs internally
- Easy download via USB port
- Displays % free storage space before logging begins
- Logs up to 7 days (168 continuous hours)
Tightness Test
- Check for leaks after repairs or installations
- View pressure differential over time
- Timer tracks duration of test
- Temperature compensated with SL temp to avoid false positives
Customizable
- Adjust auto power off duration
- Adjust back light duration
- Set high and low vacuum alarms
- Select each unit of measurement individually
View Wireless Probe and Scale Readings on SM380V and SM480V
Pipe Temperatures
Place pipe clamps in the perfect location and view instantaneous readings on your screen.
Refrigerant Usage
Monitor and record live refrigerant usage for precise recovery, charging and documentation.
Indoor Air Temperatures
View live air measurements and calculations on your SMAN while making adjustments.
Increase Professionalism with Job Link System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000' away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
- View measurements on SMAN and/or in Job Link App
- Monitor and record refrigerant weight
- Direct 1000' wireless range (no transmitter needed)

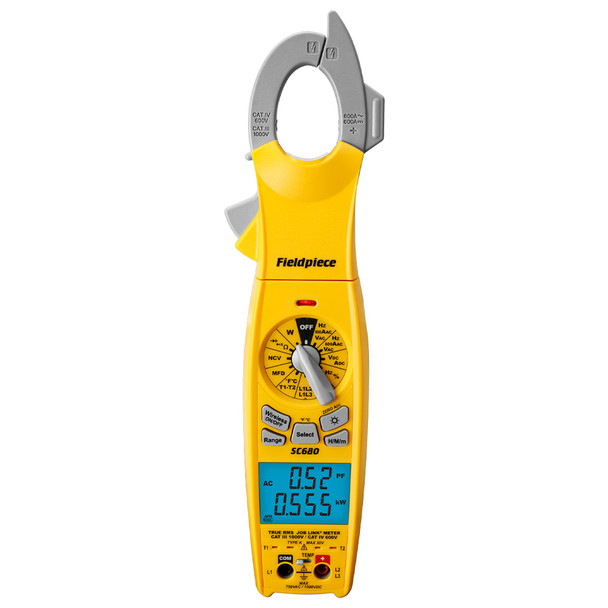

Fieldpiece SC680 True-RMS Wireless AC Clamp Multimeter
Direct integration with Job Link System App!
Top-of-the-Line HVAC/R Meters
Whether you're working on small circuitry in mini-splits or on large commercial units, the new SC680 is packed with everything you need to install, service, and troubleshoot any HVAC/R system. Not only do these meters communicate with Job Link, but you can also measure power consumption (kW) to determine system efficiency, verify 3-phase rotation with just two leads, take more accurate VAC and AAC readings with True RMS, and filter out noise to get true voltage and frequency with low pass filter.
Features:
- Measures power (kW) to track system energy consumption
- True RMS (TRMS) readings through the clamp or leads
- Low Pass Filter (LPF) to remove noise and get true voltage on VFD
- Capture starting amps with InRush feature
- Voltage accuracy suitable for use on variable frequency drives (VFDs)
- Indicates 3-phase rotation with two leads, no need to carry the extra lead
- Measures start/run capacitors
- Magnet for mounting meter during use
- Test diodes and resistance up to 50 MegOhms
- Molex tip leads for small power connectors
- Safety rated CAT IV-600V/CAT III-1000V
- DC Amps and diode for mini-split inverters
- Dual temperature for delta T
- Swivel clamp head to view readings at any angle
- Open the clamp and an LED worklight comes on to help spot the bundle you are hunting (SC680 only)
- Slim size to work in tight spots like mini-split boards
- Test lead storage
- Backlit dial
Direct Integration with Job Link System App!
Pair all your Job Link tools in the Job Link App to receive and document a complete system snapshot wirelessly. From the new SC480 and SC680 clamp meters and SM380V and SM480V manifolds, to the JL3 Job Link Probes, and SRS3 scale, all measurements are live and in real time so you can see exactly how adjustments are affecting the system.
Document all Measurements
Clearly communicate the health of the system with your co-workers and customers. Proven to help reduce call backs and increase sales.
- Wireless bluetooth beacon
- 1000' (305 meters) wireless connection direct to mobile device
- Document electrical measurements
- Calculate power and system efficiency
- Measure accurate blower amperages behind the door
- Wireless monitoring of compressor VAC and AAC
Fieldpiece DR82 Infrared Refrigerant Leak Detector
Easy to see it's more reliable.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Multiple indicators and sensitivity 20x higher than soap bubbles make it quick and easy to track down even the smallest leaks in various environments. A red LED flashes at the tip so you can keep your eyes on the target. The large bars on the backlit LCD are easy to see in bright sunlight or low light, and the numerical value provides an extra digit of resolution. Unlike conventional leak detectors, you have full control with both an automatic (AZERO) and manual (MZERO) zero mode. The large Li-ion rechargable battery provides over 10 hours of continuous operation and is convenient to charge via USB-C. Replaceable tips filter out water and dust while getting into tight spots. All wrapped up in a ruggedized IP54 housing, it's built for the field.
Features
- Sensitivity at or lower than 0.03 oz/yr (1g/a)
- Massive backlit LCD screen provides clear, easy-to- see information
- State-of-the-art infrared sensor
- Detects all HFC, CFC, HCFC, HFO and blends
- Flashing lighted tip, multiple alarms, and numerical leak size indicator
- Doesn't trigger on soap bubbles and oil
Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
The New Heavyweight Champion
High capacity and rugged, the SR47 Wireless Refrigerant Scale combines best in class wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Integrated rubber pad and bumpers protect the platform from impacts and accommodate large tanks. Electronics are sealed to block moisture from rain and splashes. The dual magnetic folding back mounts firmly to a condenser or anything metallic for easy display viewing. View weights directly in the Fieldpiece Job Link system mobile app or with your Fieldpiece digital manifold. Log and document refrigerant use in-app to comply with new standards (EPA Section 608).
Key Features and Benefits
- Large 13" platform with bumpers now integrated into pad to fit larger tanks
- Strong enough to hold a maximum load of 252 lbs
- Wireless remote control with LED backlight - can be stored inside the scale, and makes viewing data easy
- Industry-leading accuracy: ±0.03%rdg + 0.25 oz
- Lightweight, but mighty. Total weight of scale, case and remote is ~7 lbs
- Water resistance can handle any job site
- Quickly connects to the Job Link System App & SMAN with 1000' wireless range
- Platform battery lasts 200+ hours - it can literally work all week if needed
- Easy-to-use raised power button now located at base of scale
Portable Accuracy
The lightweight, but powerful Fieldpiece Wireless Refrigerant Scale, SR47's industry-leading accuracy ensures your systems get the proper refrigerant charge every time. It communicates seamlessly with the Fieldpiece Job Link® System App or SMAN, so you'll be able to read refrigerant levels anywhere on the job site while easily documenting and saving customer data. Also, the wireless remote stores right inside the scale and boasts an improved rubber gasket grip design, shorter length, slightly larger display and a redesigned magnet, plus a hefty 80-hour battery life.
Heavyweight Performance
The SR47 can accommodate even larger refrigerant tanks. Its 252-lbs maximum load capacity accommodates any charge or recovery requirement, while its oversized 13-inch platform design with unique integrated bumpers is engineered to fit larger refrigerant tanks. It also features the best platform battery life in the industry with a long life of up to 200+ hours, which minimizes jobsite downtime by removing the need to change or recharge batteries.
Works Everywhere
Because Fieldpiece knows technicians need lightweight tools that are durable enough to withstand wear and tear in field conditions, the Wireless Refrigerant Scale, SR47 meets both requirements. Its compact size and lightweight seven lbs portability make it easy to carry up a ladder and wet weather is no barrier to performance - SR47 is weather resistant with an IP64 rating for the remote and an IP54 rating for the platform for use in wet conditions. No matter where you're using the SR47, whether charging a residential system in a crawlspace or a on a commercial unit on a rooftop, you can easily transport this lightweight, mission-critical tool.

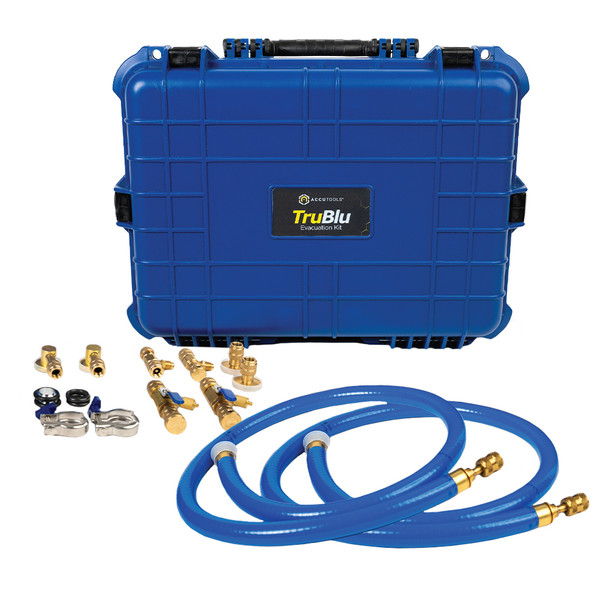

Accutools A10757-3 TruBlu Professional Evacuation Kit
A Simply Better Vacuum Hose.
These hoses are freaky fast! TruBlu hose has a 3/4" internal diameter delivering 16 CFM of conductance speed at 1,000 microns. Evacuate 80x faster than 1/4" I.D. hoses and up to 6x faster than other “vacuum rated” hoses on the market today.
The TruBlu hose is extremely tough, ultra-smooth bored, yet the flexible wire reinforced PVC means it just won't kink or collapse. TruBlu is resistant to abrasion and crushing and can be knocked back to round if accidently flattened. Additionally, the UV compounding has excellent weather resistance to provide years of reliable service.
The proprietary polymer blend has extremely low air permeation, water vapor adhesion, and outgassing making this hose ideal for vacuum service. In short TruBlu's ultra-smooth large bore reduces flow loss and other losses providing the fastest evacuation of any hose on the market today.
Dedicated to Vacuum
TruBlu is engineered for vacuum. Most manufacturers of “evacuation hoses” use refrigerant transport hose and "recertify" it for use in vacuum applications. Refrigerant transfer hose is designed for refrigerant transfer. The materials though are simply not engineered for evacuation. Pick one up; it will be stiff, heavy, gassy and hydroscopic. Additionally, refrigerant transport hose (charging hoses) should never be used for refrigerant charging and evacuation. Oils and contaminants will line the hose absorbing moisture making a fast and deep vacuum almost unattainable. If you want dedicated, you want TruBlu.
A Better Evacuation System
A fast evacuation is a function of the components used in the process. TruBlu is the only system engineered for HVAC that uses industrial rated vacuum hose as well as vacuum rated KF fittings for quick hose configuration and vacuum tight connections.
One Hose Fits All
With their Patent Pending KF fitting designed specifically for HVAC applications, a TruBlu hose can be configured in the field for the pump and service valve connections from 1/4", 3/8", to even 1/2" fittings (even those with 90-degree adapters). Each fitting and valve has been carefully engineered from the core tools to the core depressors to assure vacuum tight connections ideal for HVAC applications. While all mechanical fittings leak, TruBlu fittings and hoses can achieve leaks rates so low that vacuums of 20 microns at the hose ends are easily possible even with the smallest vacuum pumps.
Size Matters
Using a 3 CFM pump or larger? You need TruBlu! Attaching a 1/4" hose to a vacuum pump can reduce the flow to as little as 0.7 CFM. No matter how large your pump is, (and remember size does matter!) it is limited or restricted by the hoses you attach to it. The deepest vacuum a pump can draw -14.7 PSI, so if you want more flow you need a bigger hose. If you want more flow you need TruBlu.
Fieldpiece JL3RH Flex Psychrometer Probe
New Higher Temperature Range! To see this new updated range, simply perform a firmware update on the probe via the Fieldpiece app.
The Fieldpiece JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging sends air measurements directly to the Fieldpiece Job Link app up to 1000' away with firmware update. The JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging measures %RH, dry bulb, wet bulb, dew point, and enthalpy at a register/grille, in the duct, or just walking around. Bend the flexible probe and slide the magnet to conveniently configure the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging to your situation. The rubberized protective housing of the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging is both ergonomic and rugged for daily use. Flip the switch and the Job Link app immediately knows which side of the system you're going to place your JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging. Use the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging for its long wireless range, strong magnet, and flexible probe for quick and easy psychrometrics testing.
Features:
- LED color indications
- High or low side switch
- Rapid Rail sensor advantage
- Remote data logging
- Auto power off (APO)

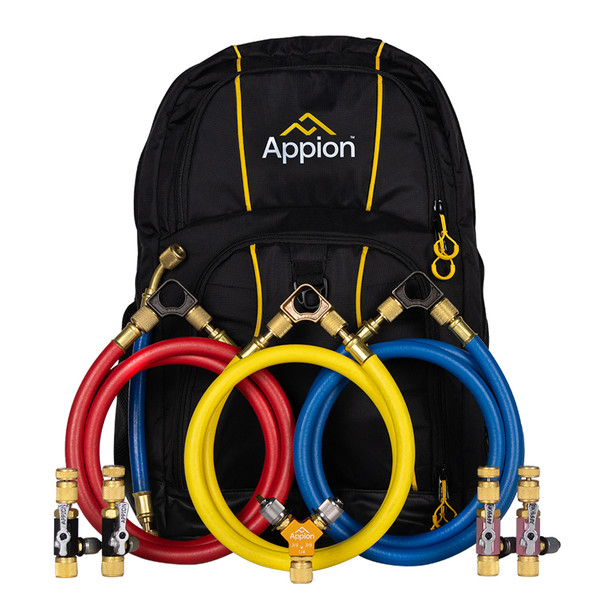

Appion SPDKIT-R Recovery Speed Kit
The Greater the Flow... the Faster it will GO!
Speed up refrigerant recovery with the MegaFlow SpeedKit-R. This kit includes everything needed for a direct liquid and vapor refrigerant recovery without the use of a restrictive manifold. Speed up any refrigerant recovery machine with the Appion SpeedKit-R.
The MegaFlow Speed-Y is Vacuum-Rated to 20 microns and designed for high pressure refrigerants, such as R410a. The MegaFlow Valve Core Removal Tools work with both Standard 1/4in Systems and Ductless 5/16in Systems. Always remove valve cores from the system for Full Flow and Fast Recovery.
Features and Benefits
- Fast and Simple - Reduced connections, Simple setup, Fast recovery, Reduced job times
- Works with ANY Recovery Machine - Make your exsisting recovery machine faster than ever
- Designed for High Pressure - Designed for high pressure refrigerants, such as R410A
- Vacuum-Rated Components - Tools that do not leak in a deep vacuum
- Full Flow - No flow restrictions across the whole setup
- Toolbag Included - Quickly organize and efficiently carry tools
Kit Includes:
- 1 MegaFlow 3/8 in Hose - 6 ft [3/8FL to 1/4FL] Blue
- 1 MegaFlow 3/8 in Hose - 6 ft [3/8FL to 1/4FL] Red
- 1 MegaFlow 3/8 in Hose - 4 ft (1/4FL to 1/4FL) Yellow
- 1 MegaFlow 3/8 in Hose - 1 ft (1/4FL to 1/4FL-45 degree) Blue
- 2 MegaFlow Valve Core Removal Tool - 1/4in
- 2 MegaFlow Valve Core Removal Tool - 5/16in
- 1 45° 1/4in MFL swivel fitting w/screen
- 1 Speed-Y 1/4in
- 1 MegaFlow SpeedKit Carry Bag
Want Fast and Simple Recovery?
With the MegaFlow Speed-Y, fast recovery is simpler than ever. No manifold, no tangle of hoses, and reduced connections. The Speed-Y enables Full Flow to any recovery machine, without the restrictive manifold.
Are your Tools Rated for Vacuum and Pressure?
All of the tools included in the MegaFlow SpeedKit-R are Vacuum-Rated to 20 microns and designed for high pressure refrigerants, such as R410A. This setup will give you the peace of mind that your tools aren't going to leak in a deep vacuum or during critical parts of the recovery process.
Accutools BluVac+ Professional Digital Micron Gauge with Coupler and Bluetooth
Works directly with the BluVac app!
BluVac Professional Plus is designed to not only give you fast and accurate readings, but it will also be able to provide those readings to you via Bluetooth. Exciting yet the BluVac Pro Plus is able to work with the BluVac app for a complete report.
The AccuTools BluVac Professional Digital Vacuum Gauge is the most accurate and precise vacuum instrument available today with patented technology that cannot be found anywhere else.
With the BluVac Pro, you can accurately measure vacuum pressure in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg with resolution down to 0.1 micron. Ideal for the HVAC/R, Industrial, and Scientific professionals, the BluVac Pro is small, lightweight, rugged and easy to use. It is programmable, allowing for unattended evacuation and rise-time testing of HVAC/R systems of all sizes.
Key Features of the Pro model over other models: PISG display, Saturation Temperature display, Vacuum Rise Time Analyzer, minimum pass time analysis (15 min.), Evacuation Progress indicator, and Vacuum leak indicator in Microns per minute
Features:
- Operates stand-alone or with Android and iOS apps
- Operates with the iManifold / iConnect app
- Large, high-visibility back-lit LCD display
- Measures Vacuum in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg
- 0 to 25,000 Micron Range with 0.1 Micron Resolution less than 10,000 Microns
- "Analog" Vacuum Level Bar Graph
- Evacuation Progress Indicator shows Vacuum between 25,000 Microns and ATM
- Vacuum Leak Rate, Ambient Temperature, and Saturation Temperature Indicator
- Automatic Oil Sensor
- Measures Ambient and Saturation Temperature in Fahrenheit and Celsius to 0.1
- Built-in memory retains all previous settings
- Rugged, Compact Design with Protective Silicone Rubber Boot
- Long Battery Life
- Programmable Automatic Evacuation and Rise-Time Testing
- Calibration Self Test -- Can be field calibrated with no special equipment
- Ideal for HVAC/R Service, Industrial Use, and Scientific Measurement
BluVac+ Pro App Features
- View vacuum on digital gauge or graph
- Bar graph vacuum indicator
- Automatic notifications of evacuation process
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV
CPS CRX430T Recovery Tank 30lb 400 PSIG
D.O.T. approved 30lb recovery tank with 1/4" SAE male fittings.
- Water Capacity: 26.2lb / 11.9kg
- DOT Specification: DOT04BA-400
- Service Pressure: 400 PSIG
Nylog Red and Blue
Gasket/Thread Sealant, HFC
It s a Sealant:
Nylog is a viscoelastic fluid made from refrigeration grade compressor oil. Gaskets coated with Nylog will never dry or become heat fixed to the surface. Threaded connections coated with Nylog will prevent high pressure leaks by forming a hydraulic seal. The compound always remains temperature and vibration resilient.
It s a Lubricant:
Nylog can be used as a high tack assembly lube when installing shaft seals, o-rings, schrader valves, ball valves, unloaders or other system components. Nylog is fully miscible and 100% compatible with the refrigerant and base compressor oils.
Nylog Red Is based on Mineral Oil and used on Ammonia, Propane, CFC or HCFC systems. Nylog Blue is synthetic ester oils fully compatible with all systems including those based on PVE oil, HFO refrigerants and CO2.
Fieldpiece OIL128 Vacuum Pump Oil - 1 Gallon (128 oz)
The Fieldpiece OIL128 Vacuum Pump Oil (1 gallon) is highly refined and optimized for proper sealing and lubrication. The pump oil produces low vapor pressure and is suitable for a wide temperature range.
Features:
- For use with VP55 and VP85 Vacumum Pumps
- Highly refined and optimized for top performance
- Ensures proper sealing and lubrication
- Produces low vapor pressure
- Suitable for wide temperature range
- Size: 1 Gallon (128 oz)
Specs
| VP87 Specifications | |
|---|---|
| Flow Rate | 8 CFM |
| Oil Capacity | 8 oz |
| Oil Compatibility | Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication) Fieldpiece part numbers: OIL8X3, OIL32, OIL128 |
| Oil Backlight | Blue LED |
| Oil Drain | Ball Valve |
| Port Sizes | (1) 1/4", (2) 3/8", (1) 1/2" |
| Compressor | Rotary vane, two stage |
| Motor | 3/4 HP Brushless DC |
| RPM | 2500 |
| Power Source | 120 VAC @ 50/60 Hz 1 phase |
| Nominal Current Draw | 6 AAC |
| Ultimate Vacuum at Input Ports | 15 microns |
| Dimensions | 7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm) |
| Weight | 27 lb / 12.3 kg |
| Operating Environment | 30°F to 104°F (-1.1°C to 40°C) | MR45 Specifications |
| Display: | Backlit dual LCD |
| Pressure Sensor Range: | -30” Hg to 600 psig |
| High Pressure Shut-off: | 558 psig, nominal |
| Resolution and Units: | 1 psig, 1” Hg, 0.05 bar, 0.01 Mpa, 5 Kpa, 2 cmHg |
| Final Recovery Vacuum: | 14.9” Hg |
| Compressor: | Dual cylinder reciprocating |
| DC Motor: | 1 HP (variable smart speed) |
| Power Source: | 95 to 130 VAC @ 60 Hz |
| Max Current Draw: | 12 AAC |
| Valve: | Single dual-route ball valve |
| Input Port Filtration: | 11 mm mesh screen, stainless |
| Dimensions: | 14.8” x 9.8” x 13.5” (376 mm x 250 mm x 344 mm) |
| Weight: | 22 lbs (10kg) |
| Warranty: | 1 year | JL3KM2 Specifications |
| Wireless Range | 1000 feet (107 meters) line of sight |
| Wireless Frequency | 2.4 GHz |
| Battery | 2 AAA (included) |
| Battery Life | 150 hours typical alkaline |
| Auto Power Off | 2 hours (can be disabled) |
| Best Accuracy and Range | inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00) mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0) mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00) psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165) Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930) |
| Maximum Overload Pressure | 305 inWC (11 psi) | SM380V Specifications |
| General | |
| Display: | LCD (5 inches diagonal) |
| Backlight: | Blue (adjustable duration) |
| Over Range Display: | OL for pressure, - - - - for temperature |
| Auto Power Off: | 30 minutes of inactivity (adjustable) |
| Maximum Manifold Pressure: | 800 Psig (5500 kPa) |
| Battery Type: | 6 x AA alkaline |
| Battery Life: | 350 hours typical (without vacuum, backlight, and wireless) |
| Radio Frequency: | 2.4 GHz |
| Wireless Range: | 1000 feet (106 meters) line of sight Distance decreases through obstructions |
| Data Port: | Micro USB (for extracting logged data or updating firmware) |
| Operating Environment: | 32°F to 122°F (0°C to 50°C) at <75% RH |
| Storage Environment: | -4°F to 140°F (-20°C to 60°C) at <80% RH (With battery removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°??C) 0.1 x per 1.8°F (32°F to 64°F, 82°F to 122°F) |
| Weight: | 4.03 lbs (1.83 kg) |
| Water Resistant: | Designed to IP54 |
| Refrigerants: | R11, R12, R13, R22, R23,, R32, R113, R114, R115, R116, R123, R124, R125, R134A, R236FA, R245FA,
R290, R401A, R401B, R402A, R402B, R403B, R404A, R406A, R407A, R407C, R407F, R408A, R409A, R410A,
R413A, R414A, R414B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D,
R424A, R427A R428A R434A R438A R448A R449A R450A R452A, R452B, R453A, R454B, R458A, R500, R501,
R502, R503, R507A, R508B, R513A, R600, R600A, R601, R601A, R744, R1233ZD, R1234YF, R1234ZE New refrigerants are continually being added so be sure to visit Fieldpiece.com for the latest firmware |
| Pressure | |
| Sensor Type: | Absolute pressure sensors |
| Port Type: | (3) 1/4" standard NPT male flare fittings |
| Pressure Range and Units: | 580 Psig (English), 40.00 Bar (Metric), 4.000 MPa (Metric), and 4000 kPa (Metric) |
| Negative Pressure Range and Units: | 29 inHg (English), 74 cmHg (Metric) |
| Resolution: | 0.1 Psig; 0.01 Bar; 0.001 MPa; 1 kPa; 0.1 inHg; 1 cmHg |
| Negative Pressure Accuracy: | 29 inHg to O inHg: ±0.2 inHg; 74 cmHg to O cmHg: ± 1 cm Hg |
| Pressure Accuracy: | - 0 Psig to 200 Psig: ± 1 Psig; - 200 Psig to 580 Psig: ±(0.3% of reading + 1 Psig); - 0 Bar to 13.78 Bar ±0.07 Bar; - 13.78 Bar to 40.00 Bar: ±(0.3% of reading+ 0.07 Bar); - 0 MPa to 1.378 MPa: ±0.007 MPa; - 1.378 MPa to 4.000 MPa: ±(0.3% of reading+ 0.007 MPa); - 0 kPa to 1378 kPa: ±7 kPa; - 1378 kPa to 4000 kPa: ±(0.3% of reading+ 7 kPa |
| Temperature | |
| Sensor Type: | Type K thermocouple (nickel chromium/nickel aluminum) |
| Jack Type: | (3) Type K thermocouple |
| Range: | -50°F to 257°F (-46°C to 125°C) limited by the thermocouple specification. Display range is -95°F to 999.9°F (-70°C to 537°C |
| Resolution: | 0.1°F (0.1°C) |
| Accuracy: | Shown accuracies are after field calibration. ±(1.0°F) -95°F to 200°F, ±(2.0°F) 200°F to 999.9°F ±(0.5°C) -70°C to 93°C, ±(1.0°C) 93°C to 537.0°C |
| Deep Vacuum | |
| Sensor Type: | Thermistor |
| Port Type: | (3) 1/4" standard NPT male flare fittings (SM380V) (1) 3/8" and (3) 1/4" standard NPT male flare fittings (SM480V) |
| Range and Units: | - 50 to 9999 microns of mercury (English) - 6 to 1330 Pascals (Metric) - 0.06 to 13.3 mBar (Metric) - 50 to 9999 mTorr (Metric) - 0.05 to 10 Torr (Metric, equivalent to mmHg) |
| Best Resolution: | - 1 micron of mercury (below 2000 microns) - 1 Pascal (below 250 Pascals) - 0.001 mBar (below 2.5 mBar) - 1 mTorr (below 2000 mTorr) - 0.001 Torr (below 2.5 Torr) |
| Accuracy @ 77°F (25°C): | ±(5% of reading + 5 microns of mercury) ±(5% of reading + 1 Pascal) ±(5% of reading + 0.01 mBarr) ±(5% of reading + 5 mTorr) ±(5% of reading + 0.005 Torr) |
SC680 Specifications |
| Volts AC (VAC) True RMS (50-400Hz) | |
| Ranges: | 1000mV, 10V, 100V, 750V |
| Resolution: | 0.1mV |
| Accuracy: | ±(1.5% + 10) 50Hz to 60Hz ±(2.0% + 10) 60Hz to 400Hz Unspecified at 400Hz and greater |
| Volts DC (VDC) | |
| Ranges: | 1000mV, 10V, 100V, 1000V |
| Resolution: | 0.1mV |
| Accuracy: | ±(0.5% + 5) |
| Amps AC (AAC) True RMS (50-60Hz) | |
| Ranges: | 100A, 600A |
| Resolution: | 0.01A |
| Accuracy: | ±(2.5% + 15) 100A ±(2.0% + 10) 600A |
| Frequency (Hz) Through Clamp | |
| Ranges: | 10Hz to 400Hz |
| Resolution: | 0.1Hz |
| Accuracy: | ±(0.1% + 5) |
| Amps DC (ADC) | |
| Ranges: | 100A, 600A |
| Resolution: | 0.01A |
| Accuracy: | ±(2.5% + 15) 100A ±(2.0% + 10) 600A |
| MicroAmps DC (µADC) | |
| Ranges: | 1000µA |
| Resolution: | 0.1µA |
| Accuracy: | ±(1.0% + 5) |
| Frequency (Hz) Through Leads | |
| Ranges: | 100Hz, 1000Hz, 10kHz, 100kHz, 1000kHz |
| Resolution: | 0.01Hz |
| Accuracy: | ±(0.1% + 5) |
| Duty Cycle (%) | |
| Ranges: | 5%-95% (40Hz to 1kHz) 10%-90% (1kHz to 10kHz) 20%-80% (10kHz to 20kHz) |
| Resolution: | 0.1% |
| Accuracy: | ±(2% + 10) |
| Capacitance (MFD) | |
| Ranges: | 10nF, 100nF, 1000nF, 10µF, 100µF, 1000µF, 10mF |
| Resolution: | 0.01nF |
| Accuracy: | ±(3% + 15) 10nF, ±(3% + 5) 100nF to 1000µF, ±(5% + 5) 10mF |
| Resistance (Ω) | |
| Ranges: | 100Ω, 1000Ω, 10kΩ, 100kΩ, 1000kΩ, 10MΩ, 50MΩ |
| Resolution: | 0.01Ω |
| Accuracy: | ±(1.0% + 15) 100Ω, ±(1.0% + 5) 1000Ω to 100kΩ, ±(1.5% + 5) 1000kΩ, ±(3.0% + 5) 10MΩ to 50MΩ |
| Continuity | |
| Ranges: | 100Ω |
| Resolution: | 0.01Ω |
| Response time: | 100ms |
| Diode Test | |
| Test current: | 0.8mA (Approx.) |
| Open circuit volts: | 3.2VDC typical |
| Accuracy: | ±(1.5% + 5) |
| Dual Temperature (T1, T2, T1-T2) | |
| Ranges: | -58°F to 2372°F, (-50°C to 1300°C) |
| Resolution: | 0.1° |
| Accuracy: | ±(1°F) 32°F to 120°F, ±(1°C) 0°C to 49°C ±(1%+2°F) 32°F to 932°F, ±(1%+1°C) 0°C to 500°C ±(2%+6°F) -58°F to 32°F, ±(2%+3°C) -50°C to 0°C ±(2%+6°F) 932°F to 2372°F, ±(2%+3°C) 500°C to 1300°C |
| Phase Rotation Test (L1L2, L1L3) | |
| Ranges: | 80±5 VAC to 600VAC (50Hz to 80Hz) |
| Resolution: | 0.1V |
| Accuracy: | ±(1.5% rdg + 10 dgts) | DR82 Specifications |
| Sensor Type | Infrared (IR) |
| Sensor Life | 10 years typical |
| Sensitivity Levels | High, medium, low, turbo (selectable) |
| Maximum Sensitivity | 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion |
| Detection Feedback | Red tip LED, LCD bar graph, LCD digits, beeper |
| Refrigerants | HFC, HCFC, CFC, HFOs, and blends |
| Response Time | <1 seconds typical |
| Recovery Time | <5 seconds typical |
| Battery Type | 3.7 VDC 2600mAh, non-replaceable |
| Charge Time | 6 hours typical with included charger |
| Battery Life | 10 hours typical, backlight off |
| Auto Power Off | 10 minutes without detection or button press |
| Operating Environment | 32°F to 104°F (0°C to 40°C); < 75% RH non-condensing |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C);< 80% RH |
| Weight | 14 oz (400g) |
| Resistances | Designed to IP54 | SR47 Specifications |
| Over range | "OL" is displayed |
| Maximum load | 252.00 lbs (114.00 kg) |
| Max tank base diameter | 13 inches (33 cm) |
| Auto power off | 30 minutes of inactivity (no change in weight or buttons pressed, can be disabled) |
| Backlight | Blue, turns off in 2 minutes if no buttons are pressed |
| Accuracy | ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg) ±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg) |
| Resolution and units | lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz) kg g (10 g), kg (0.1 kg), g (10 g) |
| Temperature coefficient | 0.1 x (specified accuracy) per °F |
| Wireless range | 1000 feet (305 meters) line of sight. Obstructions affect distance. |
| Radio frequency | 2.4 GHz |
| Battery type | Remote display: 9V Platform: 6 x AA |
| Battery life | Remote display: 65 hours typical alkaline (backlight off) Platform: 200 hours typical alkaline |
| Operating environment | 32°F to 122°F (0°C to 50°C) at <75% RH |
| Storage temperature | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed) |
| Weight | Platform with battery 7 lbs (3190 g) Remote with battery 0.49 lbs (220 g) |
| Water resistant | IP54 (Platform), IP64 (Remote) | JL3RH Specifications |
| Minimum Device Requirement: | BLE 4.0 devices running iOS 7.0 or Android 5.0 |
| Battery Type: | 2 x AAA, NEDA 24A, IEC LR03 |
| Battery Life: | 150 hours typical alkaline (LED blinks red when battery replacement is needed) |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range: | 1000 feet (305 meters) |
| Radio Frequency: | 2.4 GHz |
| Operating Environment: | 32°F to 122°F (0°C to 50°C) at <75% RH |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C) |
| Weight: | 0.33 lbs (150 g) |
| Flexible Probe: | 0.36" (9mm) diameter; 9.25" (235mm) length |
| Relative Humidity (%RH): | Sensor Type: Capacitance polymer film Hysteresis: ±1%RH typical (Excursion of 10% to 90% to 10%RH) Measurement Range: 0%RH to 100%RH Accuracy: (At 73.4°F (23°C)) ±2.5% (10%RH to 90%RH); ±(5%) <10%RH,>90%RH Response Time: 60 seconds typical for 90% of total range |
| Temperature: | Sensor Type: Precision thermistor Measurement Range: -40°F to 250°F (-40°C to 121°C) Accuracy: ±(1°F) 32°F to 113°F, ±(0.5°C) 0°C to 45°C; ±(2°F) -4°F to 32°F, 113°F to 140°F, ±(1°C) -20°C to 0°C, 45°C to 60°C |
BluVac+ Pro Specs |
| Range | 0 - 25,000 Microns (3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg) |
| Vacuum Accuracy | 5% of Reading +/- 5 Microns |
| Vacuum Resolution | 0.1 Micron (@ 0.0 to 9,999.9 Microns) 1 Micron (@ 10,000 to 25,000 Microns) |
| Programming | Evacuation Timer |
| Maximum Overpressure | 1000 PSI |
| Temperature Accuracy | 0.2°F (0.1°C) |
| Temperature Resolution | 0.1° |
| Warm-up Time | Instant |
| Response Time | Instant |
| Power | One 9V Alkaline Battery |
| Battery Life | Up to 300 Hours |
| Operating Temperature | 10°F - 122°F (-12°C - 50°C) |
| Weight | 6 oz. (170g) including Battery and Swivel Hook |
| Dimensions | 3.5" x 3" x 1.25" (9cm x 7.5cm x 3cm) |
| Vacuum Port Fitting | 1/4" Male Flare - Nickel Plated for Durability with Dust Cap |
| U.S. Patent Nos. | 8,504,313 and 8,768,633 |
Includes
Fieldpiece VP87 RunQuick Dual Stage Vacuum Pump 10CFM
- (1) VP87 8CFM Vacuum Pump
- (1) IEC Power Cord
- (2) 8 Ounce Vacuum Pump Oil
- (1) Manual
- (1) 1 Year Warranty
Fieldpiece MR45 Digital Recovery Machine
- (1) MR45 Refrigerant Recovery Machine
- (10) Extra Mesh Screens for Input Port
- (3) Extra O-ring for Input Port
- (1) Manual
Fieldpiece JL3KM2 Job Link Dual Manometer Kit
- (2) Manometer Probe
- (2) Static Pressure Probe and Hose
- (2) Brass Screw Fitting with Extra Hose
- (2) Slide Gas Adapter
- (1) Padded Case
Fieldpiece SM380V Digital Manifold with Micron Gauge
- (1) Fieldpiece SM380V Digital Manifold with Micron Gauge
- (2) TC24 Type K Pipe Clamp Thermocouples
- (1) ATA1 Type K Bead Thermocouple w/Clip
- (1) ANC11 Padded Drawstring Case
Fieldpiece SC680 True-RMS Wireless AC Clamp Multimeter
- (1) SC680 Clamp Meter
- (1) RCT2 Molex Probe Tips
- (1) ADLS2 Silicone Leads
- (1) ASA2 Gator Clip Leads
- (2) ATB1 Type K Thermocouples
- (2) Velcro Straps
- (1) 9V Alkaline Battery
- (1) ANC7 Protectice Padded Case
Fieldpiece DR82 Infrared Refrigerant Leak Detector
- (1) DR82 Infrared Refrigerant Leak Detector
- (1) Blow Molded Carrying Case
- (1) AC Charger and USB-C Cable
- (5) Filter Tips and Gaskets
- (1) Manual
- (1) 1 Year Limited Warranty
Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
- (1) Wireless Refrigerant Scale Platform, SR47
- (1) Wireless remote
- (1) 9V Battery (remote)
- (6) AA Batteries (platform)
- (1) Carrying case
AccuTools A10757-3 TruBlu Professional Evacuation Kit
- (3) A10739MM-1 TruBlue Hose (1 meter)
- (3) 10756 Stainless Steel Clamp
- (3) 10752 Aluminum Clamp
- (1) A10758-4 Replacement O-Rings (4)
- (2) A10788 KF-16 to 1/4 FFL Adapter
- (1) A10790 KF-16 to 3/8 FFL Adapter
- (1) A10789 KF-16 to 1/2 FFL Adapter
- (2) A10745 KF-16 to 1/4 FFL RA Adapter
- (2) 10735 Core Removal Tool
- (2) 10767 Shrader Depressor Tool
- (1) 10749 Tee KF-16
- (1) A10765 Carrying Case
- (9) 10751 KF-16 Plastic Caps
- (1) 10763 TruBlu Evacuation Kit Quick Start Guide
Appion SPDKIT-R Recovery Speed Kit
- (1) MegaFlow 3/8 in Hose - 6 ft [3/8FL to 1/4FL] Blue
- (1) MegaFlow 3/8 in Hose - 6 ft [3/8FL to 1/4FL] Red
- (1) MegaFlow 3/8 in Hose - 4 ft (1/4FL to 1/4FL) Yellow
- (1) MegaFlow 3/8 in Hose - 1 ft (1/4FL to 1/4FL-45 degree) Blue
- (2) MegaFlow Valve Core Removal Tool - 1/4in
- (2) MegaFlow Valve Core Removal Tool - 5/16in
- (1) 45° 1/4in MFL swivel fitting w/screen
- (1) Speed Y 1/4in
- (1) MegaFlow SpeedKit Carry Bag
AccuTools BluVac+ Professional Digital Micron Gauge with Coupler and Bluetooth
- (1) BluVac Professional Plus Digital Vacuum Gauge
- (1) Brass Coupler
- (1) Rubber Boot
- (1) Detachable Swivel Hook
- (1) Battery (One 9V Alkaline)
- (1) Instruction Manual
Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
- (1) Wireless Refrigerant Scale Platform, SR47
- (1) Wireless remote
- (1) 9V Battery (remote)
- (6) AA Batteries (platform)
- (1) Carrying case
Hoses and Accessories
- (1) CPS CRX430T Refrigerant Recovery Cylinder 30lb 400 PSIG
- (1) CPS HP5NG 3 Pack of 5' Premium 1/4" Refrigerant Charging Hoses with SafeMate Valves
- (2) Nylog Red Gasket - Thread Sealant for AC/R Systems
- (2) Nylog Blue Gasket - Thread Sealant for AC/R Systems
- (1) Fieldpiece OIL128 Vacuum Pump Oil - 1 Gallon
Fieldpiece VPX7 Manual
Software / App
Download the Fieldpiece Job Link App for your Android or iOS devices
Link Your Tools. Link Your Jobs
Job Link. More than just measurements.
The Job Link System works with all Fieldpiece wireless tools from clamps to probes to digital manifolds, and integrates all of their functionality seamlessly. Job Link increases your level of professionalism on every job and in the back office by allowing you to not only eliminate your clipboard but also virtually adding another technician to the job because you can be in more than one place at a time. Reduce callbacks and increase efficiencies with reliable and trusted system measurements, diagnostics, and reporting!
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
