TruTech Tools Home CO Monitoring Kit with Defender LL6170 and CA6150
For multi-room in home CO monitoring.

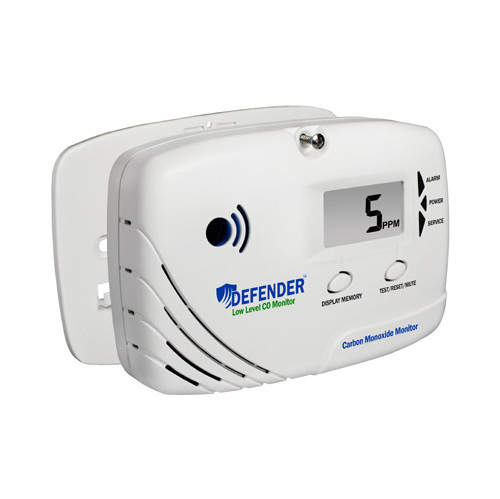

Defender LL6170 Low Level CO Monitor
The Defender LL6170 is a professional quality, sealed lithium battery powered low level carbon monoxide monitor. Continuously displays CO levels detected of 5 ppm or more. Visual alert signals are automatically activated at 9 ppm, and audible and visual alarm signals at 15 ppm. Secure mounting system and non-removable batteries.
The Health Risks of Low CO Exposure Exposure to low levels of carbon monoxide (under 30 ppm) can cause fatigue, chest pain, shortness of breath, memory loss, skin lesions, sweating, and flu-like symptoms. In the long term, exposure to low levels can cause heart disease and damage to the nervous system.
Protect Your Family Standard carbon monoxide alarms do not automatically display or alarm at CO levels below 30 ppm, and may not be protective enough, especially for sensitive groups. The Defender LL6170 is designed to provide added protection for young children, pregnant women (and their unborn children), older adults, and persons with medical conditions who may be more vulnerable to lower levels of carbon monoxide.
Protect Your Health The Defender LL6170 automatically displays the current CO level detected as low as 5 ppm, and a red LED flashes if 9 ppm is detected for 10 minutes. The CO monitor beeps every minute if 15 ppm is detected for 60 minutes, and every few seconds if 25 ppm is detected for 30 minutes.
Protect Your Safety Carbon monoxide is invisible and odorless. CO detectors may be inadvertently removed and disabled by guests or children when an alarm is activated but nothing is seen or smelled. The Defender LL6170 includes a secure mounting system, and the factory preinstalled lithium batteries are non-removable.
100% Tested Made in Canada, the Defender LL6170 is 100% tested at eight different carbon monoxide levels during production, and 100% verified by Quality Control.
Features
- Sealed Lithium Battery Powered Low Level CO Monitor
- Two Non-Removable Batteries with Soldered Connections
- Automatic and Manual Battery Activation
- Accurate and Reliable Water-Based Electrochemical Sensor
- Integrated Filter for Removing Nuisance Gases
- Samples for Carbon Monoxide (CO) Every 5 Seconds
- Easy-to-Read Alpha-Numeric Digital LCD Display
- Automatically Displays Current CO Level Detected from 5 PPM to 500 PPM
- Automatic Visual Alert Signals when 9 PPM or More is Detected
- Automatic Audible and Visual Alarm Signals when 15 PPM or More is Detected
- Manually Displays Peak CO Level Detected from 5 PPM to 500 PPM
- Manually Displays Duration of Peak CO Level from 1 to 999 Minutes
- Separate Display and Test Buttons
- Separate Alarm, Power and Service LED’s
- Audible and Visual Alarm Signals
- Instant Test/Reset/Mute Feature
- Internal Microprocessor Monitors Sensor Function
- Auto Alert when Alarm Reaches End of its Life
- Operating Temperature and Humidity: 40°F to 100°F at 10% to 95% RH
- Storage Temperature and Humidity: 40°F to 100°F at 20% to 60% RH
Defender CA6150 CO Monitor
The Defender CA6150 is a sealed lithium battery powered carbon monoxide alarm with state-of-the-art, extra large digital display. Read and monitor current CO levels as low as 10 ppm at the touch of a button. Two lithium batteries are non-removable and warranted to power the detector for ten years. Quick, easy and secure mounting system. Ideal for homes, townhouses, condominiums, multi-unit residences, apartments, nursing homes, and daycare facilities.
NOTE: All of the Defender detectors (CA6000, CA6050, CA6100, CA6150, LL6070) utilize the same mounting plate, and can be interchanged with each other.
Product Features
- Sealed Lithium Battery Powered Carbon Monoxide Alarm
- Two Non-Removable FDK Fuji Lithium Batteries with Soldered Connections
- Automatic and Manual Battery Activation
- Accurate and Reliable Electrochemical Sensor
- Integrated Filter for Removing Nuisance Gases
- Samples for Carbon Monoxide (CO) Every 10 Seconds
- Extra-Large Alpha-Numeric Digital LCD Display with Memory
- One-Touch Readout of Current CO Level Detected from 10 PPM to 999 PPM
- Automatically Displays Current CO Level Detected from 30 PPM to 999 PPM
- Memory Displays Peak CO Level Detected from 10 PPM to 999 PPM
- Memory Displays Duration of Peak CO Level from 0 to 999 Minutes
- Separate Display and Test Buttons
- Separate Alarm, Power and Service LED’s
- Audible and Visual Alarm Signals
- Instant Test/Reset/Mute Feature
- Internal Microprocessor Monitors Sensor Function
- Auto. Alert when Alarm Reaches End of its Life
- Integrated Battery Deactivation Switch
- Operating Temperature: 40°F to 100°F
- Durable Flame Retardant ABS Construction
- Ten Year Limited Factory Warranty for Alarm and Batteries
Display CO Level Data
- Current carbon monoxide level detected from 10 to 999 ppm
- Highest carbon monoxide level detected from 10 to 999 ppm
- Duration of the peak CO level detected from 1 to 999 minutes
Security Features
- Two Factory Sealed 10-Year Lithium Batteries are Non-Removable
- Automatic Battery Activation when Alarm is Attached to Mounting Plate
- Secure-Lock System Fastens Alarm to Mounting Plate with Phillips Screw
Standards
- Underwriters Laboratories Tested and Listed to latest ANSI/UL 2034 Standard. See UL File No. CZHF.E359861.
- This product has been approved by the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No. 5276-2122:0100 for allowable values and/or conditions for use concerning material presented in this document.
Once activated, units are Non-Returnable / Non-Refundable. Unit only detects Carbon Monoxide (CO)
Specs
Defender LL6170 Low Level CO Monitor
Monitor Color: | White |
Monitor Size: | 5 1/2" x 3 3/4" x 1 3/8" |
Monitor Weight: | 8 oz |
Display, Alert, Alarm Times and Signals
Ultra Low Level Display Time: | 5 ppm within 1 minute |
Low Level Visual Alert Time: | 9 ppm within 10 minutes, 25 ppm within 2 minutes |
Low Level Audible Alert Time: | 15 ppm within 60 minutes |
Low Level Alarm Time: | 25 ppm within 30 minutes |
Mid Level Alarm Time: | 50 ppm within 15 minutes |
High Level Alarm Times: | 100 ppm within 5 minutes; 150 ppm within 3 minutes |
Visual Alert and Alarm Signals: | Current CO level detected and flashing Red Alarm LED |
Audible 85dB Pulsating Alarm Signal: | 4 beeps every 5, 20 or 60 seconds |
Display Resolution: | 1 PPM |
Display Accuracy: | ±15%, plus ±2% each succeeding year, or 5 PPM, whichever is greater, from 20 to 500 PPM @ 50% RH, 72F ±5F |
Because CO sensors typically lose sensitivity over time, it is recommended that the Defender low level CO monitor be replaced every three years in order to maintain display accuracy as close to specified as possible.The sensor and display accuracy may be affected by environmental conditions and other circumstances beyond manufacturer's control.
Defender CA6150 CO Monitor
Alarm Color: | White |
Alarm Size: | 5 1/2" x 3 3/4" x 1 3/8" |
Alarm Weight: | 8 oz |
Alarm Signals
Chronic Alarm Time: | Within 60-240 minutes at 70 ppm* |
Acute Alarm Time: | Within 4-15 minutes at 400 ppm |
Audible 85dB Pulsating Alarm Signal: | 4 Beeps Every 6 Seconds |
Visual Alarm Signals: | Current CO Level and Flashing Red Alarm LED |
Low Battery Signals: | Displays Battery Symbol, Beeps Once per Minute, Flashes Green Power LED |
Malfunction Signals: | Displays "Err", Sounds 2 Beeps per Minute, Flashes Red Service LED |
Sensor End-of-Life Signals: | Displays "End", Beeps Once per Minute, Flashes Red Service LED |
*The UL 2034 Standard for Residential Single and Multiple Station Carbon Monoxide (CO) Alarms requires that UL Listed CO alarms activate an alarm signal at or below 70 PPM within 60-240 minutes. To assure compliance with this standard, the Defender CA6150 may activate audible and visual alarm signals as low as 45 PPM within 60-240 minutes.
Includes
- (1)Defender LL6170 Low Level Carbon Monoxide Monitor
- (1) Defender CA6150 Carbon Monoxide Detector
