Description

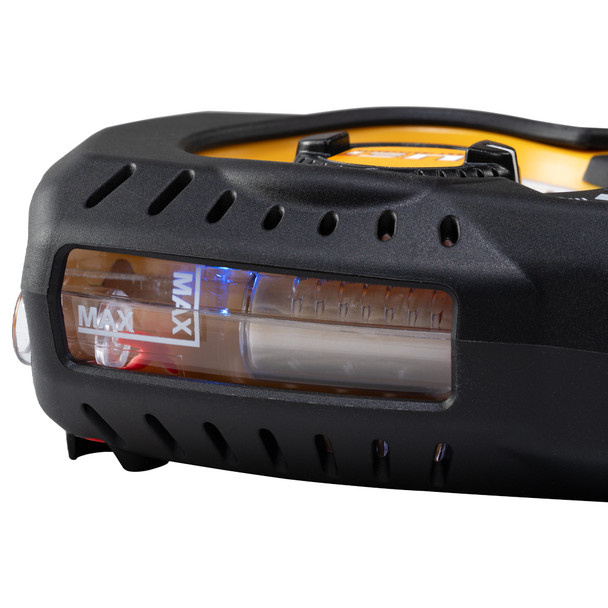

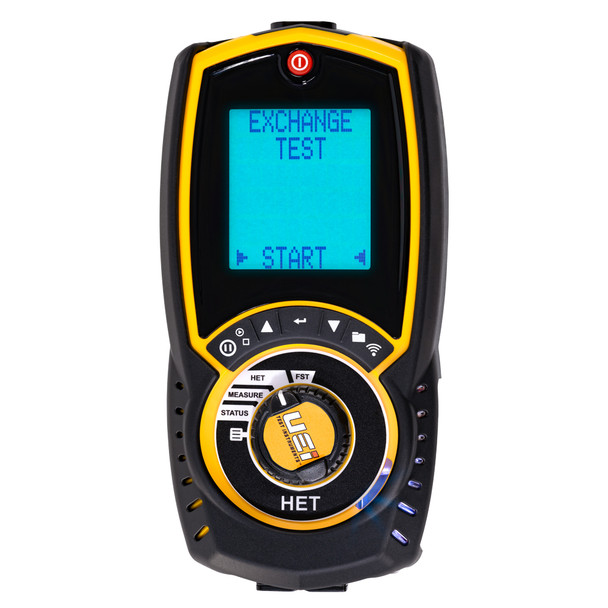

UEi HET Heat Exchanger Tester with CO, O2, and CO2, 10.5 Inch Flue Draft Probe
Don't miss out on the great benefits of UEi Service+.
Register your combustion analyzer with UEi and get notified when its time to recertify.
Backed by UEi Service+ to allow up to 10 years' warranty, same day recertification and a reduced cost of ownership. The HET offers basic tests like, Heat Exchanger Integrity Test and Furnace Safety Test for quick initial check of a furnace's performance. Easy to use featuring a rugged design with printing capability to an optional printer.
Key Features & Benefits
- Backed by UEi Service+
- Up to 10-Year warranty with annual recertification
- Large 6-line backlit display
- Heat Exchanger test
- 2 levels of sensor protection
- NOx filtered CO sensor
- Low Flow Detection to protect reading accuracy
- High altitude compensation
- Protective water trap
- Print to optional printer
- 8 pre-programmed fuels
- Protective rubber boot with magnet
- DMM-style rotary dial
Backed by UEi Service+ to give up to 10 years of warranty, SAME DAY GUARANTEED recertification, and a reduced cost of ownership.
- 10-Year Warranty: All UEi combustion analyzers have a standard 1-year warranty. Each recertification includes a full inspection and extends the warranty for 1 more year for up to 10 years from the date of purchase.
- Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned the same business day, Guaranteed. (48 hours for analyzers with a NO (Nitric Oxide) sensor installed.)
- Free Shipping: UEi Service+ offers free shipping both to and from their service center. When customers book their recertification, they receive a prepaid UPS Ground shipping label.
UEi Service+ wins the 2024 Dealer Design GOLD Award for Contractor Services and Software
Specs
| HET Tester Specs | |
|---|---|
| Carbon Monoxide (CO) |
Range: 0 – 2000 ppm Resolution: 1 ppm Accuracy: ±3 ppm or ±5% of reading (whichever is greater) |
| Carbon Dioxide (CO2) |
Range: 0 – 20% Resolution: 0.1% Accuracy: ±0.3% volume |
| Calculated Oxygen (O2) |
Range: 0 – 21% Resolution: 0.1% Accuracy: ±0.3% volume |
| Calculated CO/CO2 Ratio |
Range: 0 – 0.9999 Resolution: 0.0001 Accuracy: ±5% of reading |
| Calculated Efficiency (Net or Gross) |
Range: 0 – 99.9% Resolution: 0.1% Accuracy: ±1% of reading |
| Calculated Efficiency High (C) |
Range: 0 – 119.9% Resolution: 0.1% Accuracy: ±1% of reading |
| Calculated Excess Air |
Range: 0 – 119.9% Resolution: 0.1% Accuracy: ±0.2% of reading |
| Pre-Programmed Fuels | Pellets, Light Oil, LPG, Butane, Propane, Natural Gas, Bio Oil, Heavy Oil, Bio Gas |
| Battery Life | >8 hours (continuous with pump on) |
| Backlight Duration | Customizable from 15 to 300 seconds |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Operating Humidity | 15% to 90% RH (non-condensing) |
| Power Supply | Rechargeable batteries, USB charging |
| Dimensions | 8.54 in x 4.18 in x 1.86 in (217 mm x 106 mm x 47 mm) |
| Weight | 1.5 lb (635 g) |
Includes
- (1) UEi HET Heat Exchange Tester
- (1) Flue Gas Probe
- (3) Rechargeable (AA)
- (1) AACA5 USB charging cable
- (1) Certification
UEi HET Heat Exchanger Tester Manual
