UEi TCM HVAC/R Trade Clamp Meter, 750VAC / 1000VDC / 400AAC - USA 250th Edition
Black edition with USA 250th icon on meter and carrying pouch, Only available in 2026!
The UEi TCM HVAC/R Trade Clamp Meter commemorates America's 250th anniversary with a special USA 250th Commemorative Edition. This 400A entry-level clamp meter is designed for everyday HVAC/R troubleshooting, delivering essential measurement capabilities including resistance, capacitance, DC microamps, and temperature.
The TCM includes standard test leads, threaded alligator clips for hands-free testing, K-type temp probe, and a zippered carrying pouch for easy transport. Safety rated to CAT IV 300V / CAT III 600V and ETL certified to IEC 61010-1 (3rd edition), the UEi TCM is backed by a 1-year limited warranty.
Key Features & Benefits
- Designed for essential testing in HVAC/R trade schools and entry-level field work
- USA 250th Commemorative Edition HVAC/R trade clamp meter
- Measures up to 400A AC, 750V AC, and 1000V DC
- Supports capacitance up to 4000 µF and resistance up to 40 MΩ
- AC/DC microamp measurement up to 2000 µA
- Built-in temperature measurement from -328°F to 2462°F
- Audible continuity and diode test functions
- Dual display with auto/manual ranging and Min/Max hold
- High-voltage alert with low battery indicator and auto power-off
- Integrated test lead storage and easy-access battery cover latches
- Includes USA 250th stitched logo carrying case
- Backed by a 1-year limited warranty
- ETL certified to IEC 61010-1 (3rd edition)
Specs
| TCM Clamp Meter Specs | |
|---|---|
| AC Voltage | Up to 750 VAC |
| DC Voltage | Up to 1000 VDC |
| AC Current | Up to 400 AAC |
| Resistance | Up to 40 MΩ |
| Capacitance | Up to 4000 µF |
| DC Microamps | Up to 2000 µA |
| Temperature Measurement | -328°F to 2462°F (TCM only) |
| Diode Test | Yes |
| Audible Continuity | Yes |
| Display | 3 3/4-digit dual display, 4000 count |
| Refresh Rate | 3 readings per second |
| Ranging | Auto / Manual |
| Data Hold | Yes |
| Low Battery Indicator | Yes |
| Auto Power Off | After 30 minutes |
| Clamp Jaw Opening | 1.26" (32 mm) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | <80% |
| CAT Rating | CAT IV 300V / CAT III 600V |
| Certifications | cETLus, UL 61010-1:2012, IP42 |
| Battery Type | 2 x AAA |
| Dimensions | 8.70" x 2.52" x 1.41" |
| Weight | 0.62 lb |

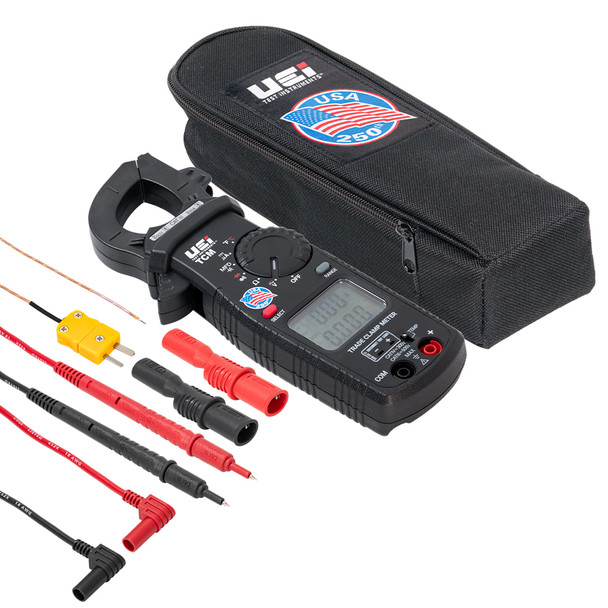

Includes
- (1) UEi TCM HVAC/R Trade Clamp Meter
- (1) Silicone Test Leads (ATL55)
- (1) Alligator Clips (AAC3)
- (1) Temperature Probe K-type (ATT29)
- (2) AAA Batteries
- (1) Commemorative edition pouch (AC570)
- (1) Certificate of Conformity
