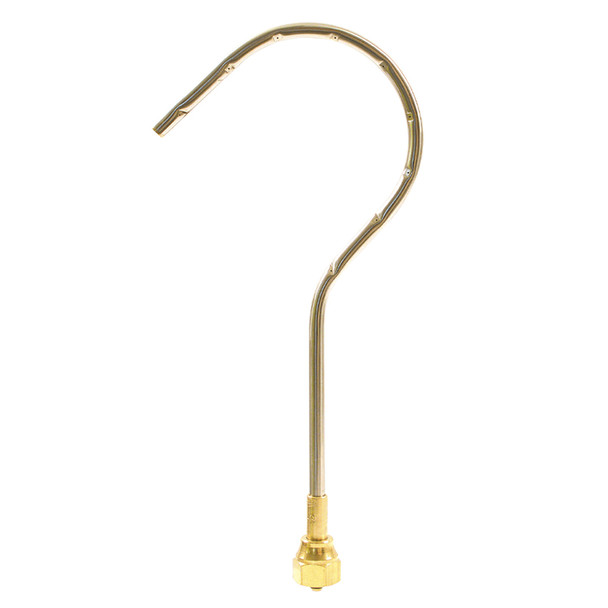

Uniweld MTF9 Cap'n Hook Nine Flame Brazing and Heating Tip, Brazes 2" Copper, Oxyacetylene

Uniweld MTF9 Cap’n Hook Nine Flame Brazing and Heating Tip, Brazes 2″ Copper, Oxyacetylene

The superior way to braze copper tubing — Up to 3x faster brazing

Uniweld’s Cap’n Hook® Nine Flame Tip has a concentrated heat up to 5600°F. The 40 degree flame angle flows onto copper tubing and away from sensitive areas, thus minimizing the chances of burning adjacent components. Tip provides 100% flame wraparound of the copper tubing for even heat distribution. Capable of brazing 2 in. of copper. Tip elbow is made of tough, durable stainless steel to protect against bending with brass mixer, and brass nut. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.

Key Features & Benefits

• 9 in. approximate tip length
• 5–9 SCFH acetylene consumption
• Capable of brazing 2 in. of copper

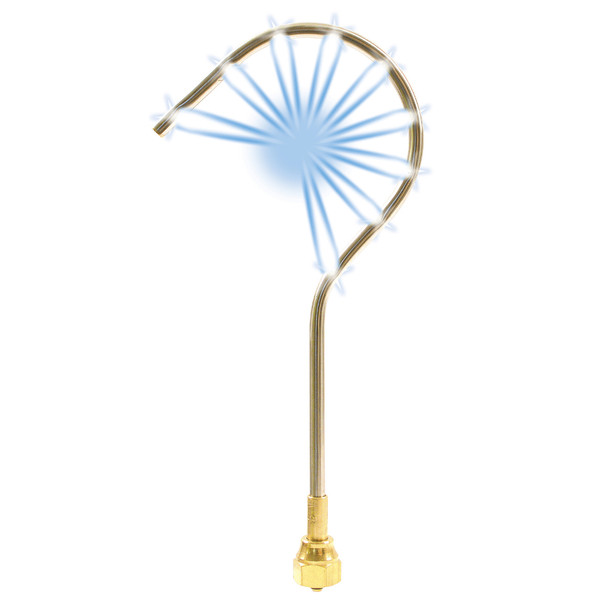

• Nine flames with 100% wrap around heat for easy brazing of copper tubing
• Tip nut only requires hand tightening allowing for quick and easy changing of tips
• Fits the 71 handle or the WH550 handle
• Proudly Made in the USA and 100% Flame Tested

---
