Description
Uniweld MTW2 Micro 6000 Brazing and Welding Tip, Brazes 1" Copper, Welds 5/64" Steel, Oxyacetylene
Provides pinpoint concentrated heat in tight spaces

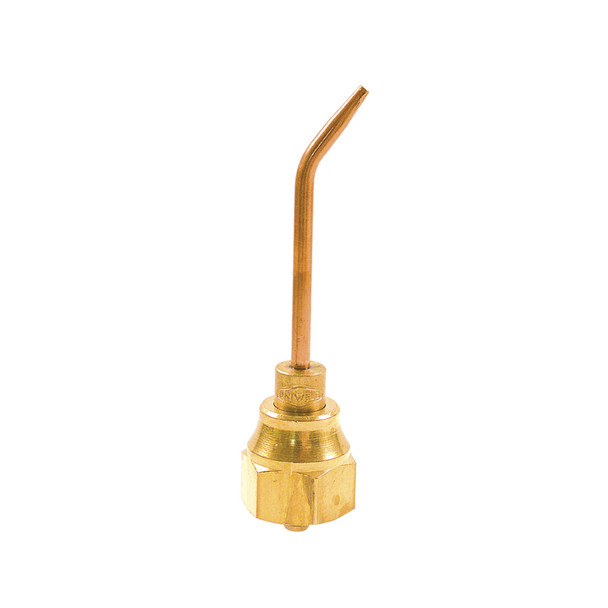

Uniweld MTW-2 micro 6000 miniature weld/braze tip provides pinpoint concentrated heat in tight spaces. At only 3 in. long, it is ideal for those tough-to-reach areas. Tip is capable of welding up to 5/64 in. and brazing up to 1 in. of copper. Tip elbow is copper, mixer and nut are brass. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
Key Features & Benefits
- 3 in. approximate tip length
- 2–4 SCFH acetylene consumption
- Capable of welding up to 5/64 in. and brazing up to 1 in. of copper
- Provides pinpoint concentrated heat in tight spaces
- Tip nut only requires hand tightening allowing for quick and easy changing of tips
- Fits the 71 handle or the WH550 handle
- Heats up to 5600°F, providing pinpoint brazing accuracy
- Proudly Made in the USA and 100% Flame Tested
Specs
| Uniweld MTW2 Micro 6000 Brazing and Welding Tip Specs | |
|---|---|
| Acetylene Consumption | 2–4 SCFH |
| Oxygen Pressure | 5 PSIG |
| Acetylene/Fuel Pressure | 5 PSIG |
| Overall Length | 3″ |
| Welding Metal Thickness | 5⁄64″ |
| Brazing Copper Tubing | 1″ |
Includes

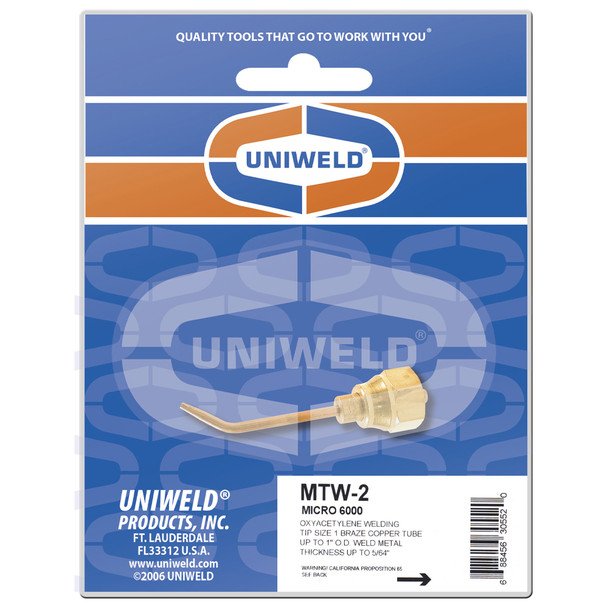

- (1) Uniweld MTW2 Micro 6000 Brazing and Welding Tip with Nut and Mixer
