Description

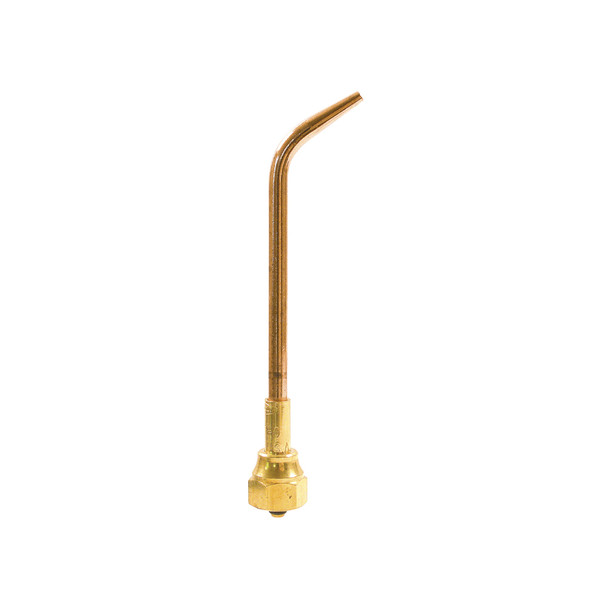

Uniweld TYPE17 Brazing and Welding Tip #000, Brazes 1/8″ Copper, Welds 1/32″ Steel, Multi Gas
Designed for welding, brazing, heating, and soldering using multiple types of gases
The Uniweld Type17-000 weld/braze tip can be used with acetylene, propane, ZAPP/MAP-Pro (propylene), and natural gas. Capable of welding 1/32 in. of metal, and brazing 1/8 in. of copper. Uniweld’s popular Type17 tips come complete with copper elbow, brass mixer, and brass nut. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
Key Features & Benefits
- 4.6 in. approximate tip length
- 1–2 SCFH acetylene consumption
- Capable of welding 1/32 in. of metal and brazing 1/8 in. of copper
- Tip nut only requires hand tightening allowing for quick and easy changing of tips
- Fits the 71 handle or the WH550 handle
- Can be used with acetylene, propane, ZAPP/MAP-Pro (propylene), and natural gas
- Proudly Made in the USA and 100% Flame Tested
Specs
| TYPE17-000 Welding/Brazing Tip Specs | |
|---|---|
| Acetylene Consumption | 1–2 SCFH |
| Acetylene Pressure | 5 PSIG |
| Oxygen Pressure | 5 PSIG |
| Brazing Copper Thickness | 1/8″ |
| Weld Metal Thickness | 1/32″ |
| Elbow/Mixer Thread Spec | 1/4″-27 (M,F) |
| Tip Length | ~4.6″ |
*Note: When acetylene weld/braze tips are used with other fuel gases, use one size larger tip and maximum pressures to obtain proper heat. This list indicates the approximate torch oxygen consumption with a neutral flame ratio for various gases:
- 1.1 Oxygen to 1 Acetylene
- 3.5 Oxygen to 1 ZAPP Gas®
- 4 Oxygen to 1 Propane/Natural Gas
Pressures are approximate for hose length up to 25 ft.; increase for longer lengths about 3 PSIG per 25 ft.;increase working pressure 2–3 PSIG for check valves and flashback arrestors. Acetylene delivery pressure should not exceed 15 PSIG under flow conditions.
Includes
- (1) Uniweld TYPE17 Brazing and Welding Tip #000 with Nut and Mixer
