Description
Uniweld TYPE17 Flexible Brazing Tip #9, Brazes 7/8″ Copper, Bendable Elbow, Oxyacetylene

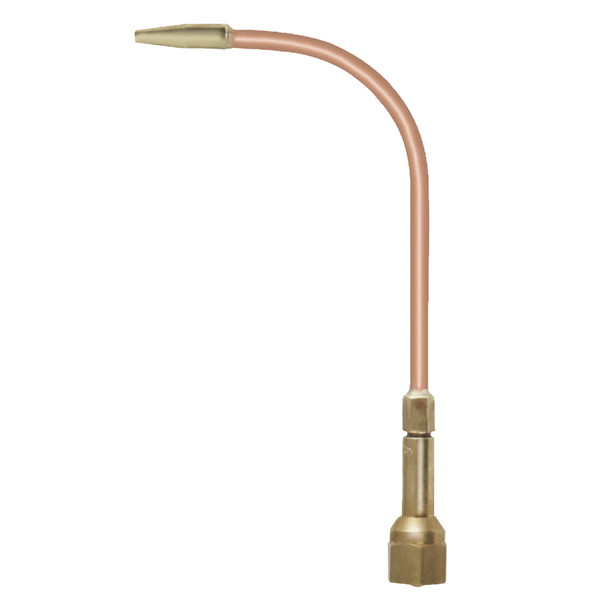

Bend to fit your needs
Uniweld’s Flexible Brazing Tip is a tip that you can bend to fit the job, even around the corners. And then, re-bend them for the next job. Capable of brazing up to 7/8 in. of copper. Uniweld’s popular Type17 tips come complete with copper elbow, brass mixer, and brass nut. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
Key Features & Benefits
- 10.5 in. approximate tip length
- 4 SCFH acetylene consumption
- Capable of brazing up to 7/8 in. of copper
- Bend the tip to fit the job, then bend it back again and again
- Tip nut only requires hand tightening allowing for quick and easy changing of tips
- Fits the 71 handle or the WH550 handle
- Proudly Made in the USA and 100% Flame Tested
Specs
| TYPE17-9 Flexible Brazing Tip Specs | |
|---|---|
| Acetylene Consumption | 4 SCFH |
| Acetylene Pressure | 5 PSIG |
| Oxygen Pressure | 5 PSIG |
| Brazing Copper Thickness | 7/8″ |
| Tip Length | ~10.5″ |
Includes

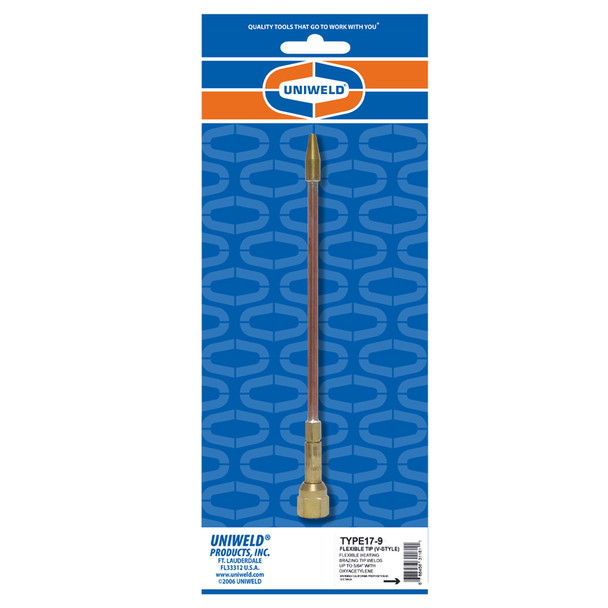

- (1) Uniweld TYPE17 Flexible Brazing Tip #9 with Nut and Mixer
Uniweld Brazing/Welding Torch Instructions (All Types)
