Description

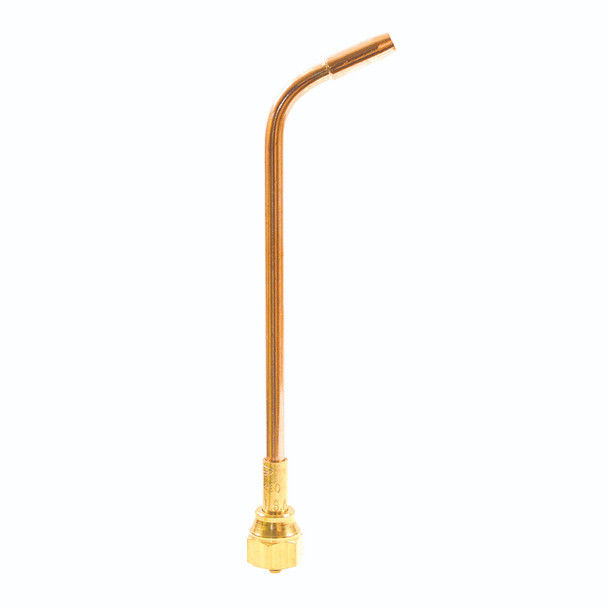

Uniweld TYPE17 Rosebud Brazing and Heating Tip #30, Brazes 6" Copper, Oxyacetylene
Your best choice for brazing, pre-heating, straightening, annealing, bending, and forging
The Uniweld Type17-30 rosebud heating tip can be used with oxyacetylene. Capable of brazing up to 6 in. of copper. Uniweld’s popular Type17 tips come complete with copper elbow, brass mixer, and brass nut. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle. Large tip must be used with a “B” 40 cu. ft. or larger acetylene cylinder.
Key Features & Benefits
- 7 in. approximate tip length
- 30 SCFH acetylene consumption
- Capable of brazing up to 6 in. of copper
- Rosebud tips are your best choice for brazing, pre-heating, straightening, annealing, bending, forging, etc.
- Tip nut only requires hand tightening allowing for quick and easy changing of tips
- Fits the 71 handle or the WH550 handle
- Use with acetylene and oxygen to achieve temperatures up to 5600 degrees Fahrenheit
- Proudly Made in the USA and 100% Flame Tested
Specs
| TYPE17-30 Rosebud Tip Specs | |
|---|---|
| Acetylene Consumption | 30 SCFH |
| Acetylene Pressure | 12 PSIG |
| Oxygen Pressure | 15 PSIG |
| Brazing Copper Thickness | 6″ |
| Tip Length | ~7″ |
Note: Must be used with a “B” 40 cu. ft. or larger acetylene cylinder.
Includes
- (1) Uniweld TYPE17 Rosebud Brazing and Heating Tip #30 with Nut and Mixer
Uniweld Brazing/Welding Torch Instructions (All Types)
