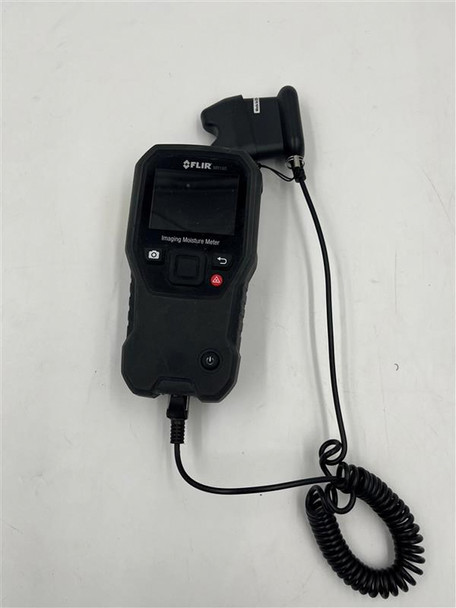

USED FLIR MR160 Imaging Moisture Meter
This USED product is in 'Fair' condition - no packaging, signs of use
The FLIR MR160 is the only moisture meter with the power to show you where to measure the problem. Featuring Infrared Guided Measurement (IGM) technology powered by a FLIR Lepton® thermal imaging sensor, MR160 helps you quickly see temperature pattern that point to potential hidden moisture so you know right where to place the meter probe to capture accurate readings.
Identify and Verify Moisture Issues with One Tool
MR160 is your go-to troubleshooting tool right out of the box: Identify cold spots with the built-in, 80x60-resolution thermal imager to locate areas of moisture. Verify the actual moisture level using the meter's pin and pinless moisture measurement functionality. Capture thermal images and moisture readings on one screen, then generate reports with free FLIR Tool software.
Troubleshoot Quickly
Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurement.
USED Product Warranty Information
Used products come with a 30 day warranty from TruTech Tools.
Used products are sold in as-is condition.
This overrides any other warranty statement.
Specs
| Part Number | MR160 |
|---|---|
| Thermal Imaging | |
| Thermal Imaging Detector | FLIR Lepton microbolometer |
| Image Calibration | Automatic |
| Thermal Image Resolution | 4800 pixels (80 x 60) |
| Spectral Response | 8-14 microns |
| Field of View | 51° — 38° |
| Thermal Sensitivity | < < 0.15 °C |
| Image Frame Rate | 9 Hz |
| Image Display | Color Moisture Alert |
| Minimum Focus Distance | 10 cm (4") |
| Moisture Measurement | |
| Pin Moisture via External Probe Range (Accuracy) | 0-100% WME (± 5%) |
| Pin Moisture Groups | 9 material groups |
| Pinless Moisture Range | 0-100 relative measurement |
| Pinless Measurement Depth | 0.75" (19mm) Max |
| Measurement Resolution | 0.1 |
| Response Time Pinless | 100 ms |
| Response Time Pin Mode | 750 ms |
| General Information | |
| Display Type | QVGA (320 x 240 pixel) 2.3" 64k color TFT |
| Saved Image File format | BMP with measurement values overlaid |
| Stored Image Capacity | 9999 images |
| Laser Orientation | Single laser pointer to center of thermal image |
| Power Requirements | Integrated rechargable battery |
| Battery Power - Continuous Run Time / Typical Usage | 18 hours max / 4 work weeks |
| Battery | 3.7 V, 3000 mAh Li-ion rechargeable via micro USB |
| Drop Test | 9.8' (3m) |
| Certification Standards | EN61326 (EMC), EN61010 (Battery + Charger), EN60825-1 Class 2 (Laser) |
| Agency Approvals | FCC Class B, CE, UL |
| Warranty | 2 Yr Product, 10 Yr Thermal Detector |
Includes
- (1) USED FLIR MR160 Imaging Moisture Meter
Resources
FLIR MR160 Manual
