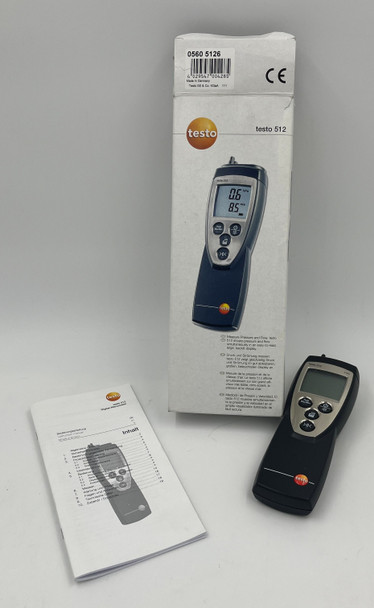

USED testo 512-1 Digital Manometer +/- 1" WC (0 to 200 Pa) FINE pressures - Good Condition

SKU:
USED-0560 1512-0226
MPN:
0560 5126
Minimum Purchase:
1 unit
Condition:
Good
  • USED testo 512-1 Digital Manometer +/- 1" WC (0 to 200 Pa) FINE pressures
  • USED testo 512-1 Digital Manometer +/- 1" WC (0 to 200 Pa) FINE pressures
Price: $99.99

Sold Out

Description

This USED product is in 'Good' condition - some signs of wear

USED Product Warranty Information

Used products come with a 30 day warranty from TruTech Tools.
Used products are sold in as-is condition.
This overrides any other warranty statement.

The testo 512-1 is a great lower cost alternative to a second blower door gauge for zonal pressure testing. The 512-1 allows you to easily make HVAC pressure measurements. These robust instruments can be used with Pitot probes to measure duct velocity. The 512-1 is a simple to operate, hand held digital Micromanometer for fast, accurate differential and static pressure measurements.
digital manometer +/- 1 IWC (+/-200 Pa), incl. battery and calibration certificatetesto 512 shows pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data may be printed on site with date and time as well as minimum and maximum values (optional printer).testo 512 has two switchable units for flow: m/s and fpm.  Adjustable damping for sliding mean calculation, density compensation is built-in. The displayed actual value can be frozen in the display by pressing the HOLD button. The measured minimum and maximum value can be displayed and stored in the meter. OPTIONAL TopSafe protects the measuring instrument in the field from impact, dirt and splash water.    * Simultaneous display of flow and pressure value    * 8 units for pressure: kPa, hPa, Pa, mm H2O, mmHg, psi, inch H2O, inch Hg    * 2 units for flow: m/s, fpm    * Built-in density compensation    * Display backlight    * Hold/Max/Min function    * Print reading to optional printer with date/time and min./max. values

Specs

Storage temperature    14 to +158 F (-10 to +70 C)
Operating temperature    32 to +140 F (0 to +60 C)
Battery type    9V
Battery life    120 hr.
Weight    11 oz.  (300 g)
Dimensions    8.0 x 2.2 x 1.7 in (202 x 57 x 42 mm)
Material/Housing    ABS

Probe type Pressure sensor integrated
Meas. Range    +/- 1 IWC (+/-200 Pa)
Accuracy    0.5% of Full Scale
Resolution    0.0001 IWC (0.1 Pa)
