Description
Veto Pro Pac Hose Hauler Rapid Evacuation Accessory Kit by TruTech Tools
The popular Veto Hose Hauler with Fieldpiece and Appion accessories for rapid evacuation
The Veto HOSE HAULER is a versatile storage solution that is specifically designed with HVAC technicians and plumbers in mind. It can store vacuum pump hoses, micron gauges, valve core removers, adapters, a bottle of vacuum pump oil and basic hand tools needed for performing an evacuation on an HVAC system. The HOSE HAULER features a removable interior pouch and 2 removable storage dividers, allowing for customization of the interior storage layout. The bag also features a water/oil resistant interior for easy clean up. We've bundled it with a high-quality Fieldpiece VC2G core removal tool and Appion evacuation hose for the ultimate fast evacuation accessory kit. Use the options above to add on extra accessories to upgrade your kit for 2 hose evacuations.
Key Features & Benefits
- Up to 6 pockets
- Water/oil resistant tarpalon interior for easy clean up
- 2 exterior molle straps
- Removable interior pouch
- 2 Removable Dividers
- 2 Exterior D-Rings
- Rugged bottom to prevent tears and scratches
- YKK zippers
- 5 Year Manufacturer Defect Warranty

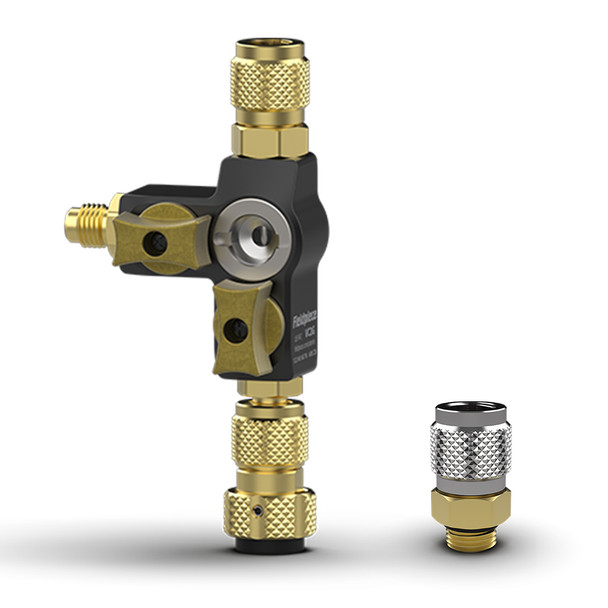

Fieldpiece VC2G - 1/4" Valve Core Removal Tool Dual Valve with Sight Glass
Faster Recovery, Verified
Because seeing is believing, the VC2G has an integrated sight glass so you visually verify the valve core is engaged before removing it, as well as confirm refrigerant is flowing. A second ball valve on the side port protects your vacuum and pressure gauges. Vacuum-rated to 20 microns, the Fieldpiece Valve Core Removal Tools (VCRTs) are essential tools in every HVACR technician's tool kit. Removing a valve core helps speed up charging & recovery operations. The capture rod reliably engages the valve core, the first time, every time - no more fishing around for lost valve cores.
Key Features & Benefits
- Swap 1/4" standard service port fitting with optional 5/16” fitting for mini-splits
- Dual ball valves for protecting test gauges and using multiple hose lines
- Lock in the valve core in one try - a gasket secures the valve core pin
- Easier removal and insertion against pressure with a comfort spinner - a free-spinning, rubberized, magnetic cap
- Vacuum-rated to 20 microns
- Rated for high pressure refrigerants including R410a
- A2L Compatible
Fieldpiece RVC5 - 5/16" Service Port Fitting for Valve Core Removal Tool
Swappable service port for VCRTs
Fieldpiece valve core removal tools are designed to easily replace the standard 1/4″ service port fitting when required and swap to a 5/16" fitting for work on mini-split systems.
Key Features & Benefits
- 5/16" service port fitting for VC2G, VC1G, and VC1
- Includes 5 spare o-rings & storage tube
- Zinc-plated brass to easily identify from 1/4" yellow brass fitting
- A2L Compatible

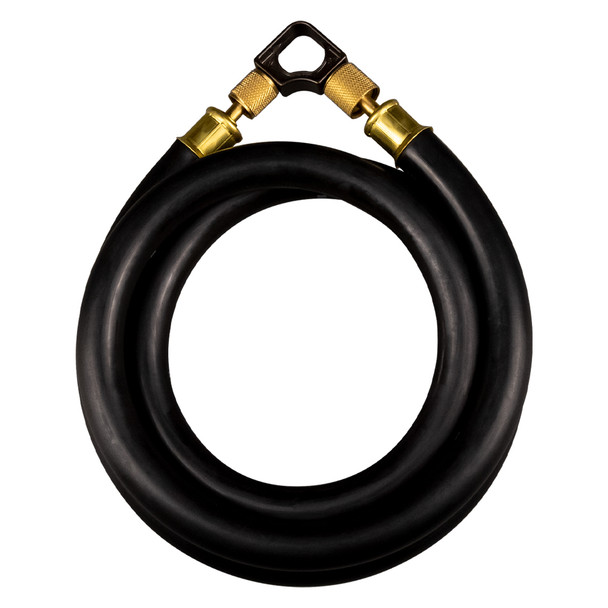

Appion MH120006EAK MegaFlow 1/2" Diameter High Speed Evacuation Hose 1/4" FL to 3/8" FL - Black 6ft
Large diameter vacuum rated hoses
Achieve the true potential of your vacuum pump with the MegaFlow 1/2in evacuation hose. Even when restricted by 1/4" system ports, using a 1/2" hose greatly reduces resistance and increases potential flow. This is especially true during system evacuation. Just using one 1/2" hose with 1/4" fittings can result in one tenth the evacuation time compared to one 1/4" hose.
Key Features & Benefits
- Vacuum-Rated to 20 microns
- Larger 1/2in Internal Diameter for superior performance
- Ultra-flexible for easy connections in tight spaces
- Won't permeate or collapse in a vacuum
- Full Flow - 16x more flow than a restrictive 1/4in charging hose
- 1/4in FL and 3/8in FL fittings make it easy to connect to the Appion Speed-Y, Appion Valve Core Removal Tools, and most vacuum pumps
- 3200 psi burst and 640 psi working pressure
Specs
| Hose Hauler Specs | |
|---|---|
| Max Payload | 15 lbs |
| Weight (empty) | 4 lbs |
| Height | 17 in |
| Depth | 5 in |
| Length | 17 in |
| Waranty | 5 year limited |
| Core Tool Specs | |
| Service Port Size | 1/4" Female (optional 5/16" swappable fitting included RVC5) |
| Side Port Size | 1/4" Male with removable valve core |
| Vacuum Rating | 20 microns / 0.027 millibar / 0.020 Torr |
| Maximum Working Pressure | 800 psi / 55 Bar |
| Dimensions | 5.06" x 2.63" x 1.5" |
| Weight | 0.6 lbs / 272 g |
| Appion Hose Specs | |
| Hose Length | 6 ft |
| Burst / Working Pressure | 3200psi burst / 640psi working |
| Hose Ends / Fittings | 1/4" Female to 3/8" Female |
Includes
- (1) Veto Pro Pac HOSE HAULER Vacuum Hose and Accessory Bag
- (1) Fieldpiece VC2G - 1/4" Valve Core Removal Tool Dual Valve with Sight Glass
- (1) Fieldpiece RVC5 - 5/16" Service Port Fitting
- (1) Appion MH120006EAK MegaFlow 1/2" Diameter High Speed Evacuation Hose 1/4" FL to 3/8" FL - Black 6ft
Resources
Veto Pro Pac Tool Bags Product Care and Maintenance
Keep the Zippers Clean & Lubricated
Over time, dirt and grit will “clog” the zipper coils preventing them from staying closed. To keep this from happening, clean and lubricate your zippers twice a year (more often if you work on a job site with a high amount of airborne debris). To clean the coils: Scrub them with soapy water; a tooth brush works very well. After scrubbing the coils, blow them out with an air hose to dislodge any other fine grit that didn't dislodge with the brush. To lubricate the coils: Apply a silicone spray, beeswax or a zipper lubricant.
Protect the Zippers From Sharp Objects and/or Excessive Heat
Any sharp object or heat source is capable of permanently damaging the zippers. Once a zipper coil is cut or singed the zipper will not function and in most cases is not repairable. Most of the cut zipper coils we see are the result of sharp tools stored inside the bag with the sharp side facing up. Make sure to keep the sharp edges of your tools facing down in your bag and away from the zipper coils.
Don't Overstuff the Bag
Overstuffing your tool bag will very likely cause significant stress on the zippers that is above and beyond what the bag was built for and will eventually cause the zipper(s) to separate. If you have to work hard to close your zipper(s), your tool bag is most likely overstuffed… proceed with caution!
