Refco 3004146 COMBI Condensate Removal Pump - Universal Voltage

SKU:
3004146
MPN:
3004146
Minimum Purchase:
1 unit
  • Refco 3004146 COMBI Condensate Removal Pump - Universal Voltage
  • Refco 3004146 COMBI Condensate Removal Pump - Universal Voltage
  • Refco 3004146 COMBI Condensate Removal Pump - Universal Voltage
  • Refco 3004146 COMBI Condensate Removal Pump - Universal Voltage
Price: $98.24

Description

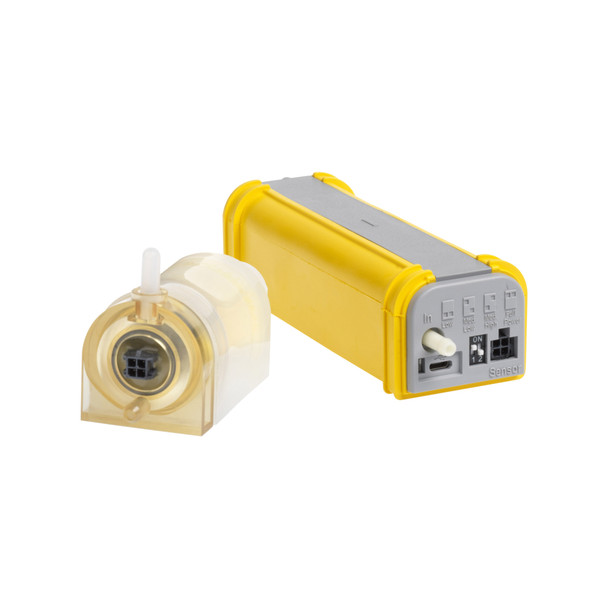

Refco COMBI Condensate Removal Pump

The COMBI condensate pump is designed for systems from 6 000 BTU/h (1.75kW) up to 120 000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that help make the COMBI the most powerful and quietest air conditioning condensate pump on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with only one pump.

Features

  • Universal use due to wide range of applications
  • Warranty period starts only after commissioning (readable via USB)
  • 11 gallon pumping capacity per hour
  • 65 ft delivery head
  • <19 dB noise level
  • No float problems thanks to digital sensor
  • Water sensor can be used horizontally or vertically
  • Control of the pumping capacity according to requirements

Specs

Maximum flow rate: 11 GPH (42 l/h.)
Maximum suction: 9.80 ft. (3 m) self priming
Maximum head: 65.60 ft. (20 m)
Sound: 20dBA at 3 ft. (1 m)
19dBA at 1 EN ISO 3744:2010
Wireless access: Remote wireless access with smartphone (optional feature)
Voltage: 100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power: 8 watts during maximum operation at 110V
Alarm relay: 10 Amps NO/NC contacts with integratedd
replaceable HRC 10A fuse 5 × 20 mm
Weight: 0.63 Lbs. (285g)
Discharge star tube: 1/4" I.D. (6.25 mm) × 3.3 ft. (1 m)
Protection: Class II double insulation, Fully potted, IP-44
Operation temp: Ambient 37.5°F to 104°F (3°C to 40°C)
Water 41°F to 77°F (5°C to 25°C)
Compliance: Conforms to UL:778 and certfied to CSA C22.2#68

Includes

  • (1) Refco COMBI Condensate Pump
  • (1) Alarm cable
  • (1) Power cable
  • (1) Sensor cable
  • (1) Star tube and Stop-Siphon device
  • (1) Suction Tube
  • (1) Vent Tube
  • (3) Cable ties
