Description

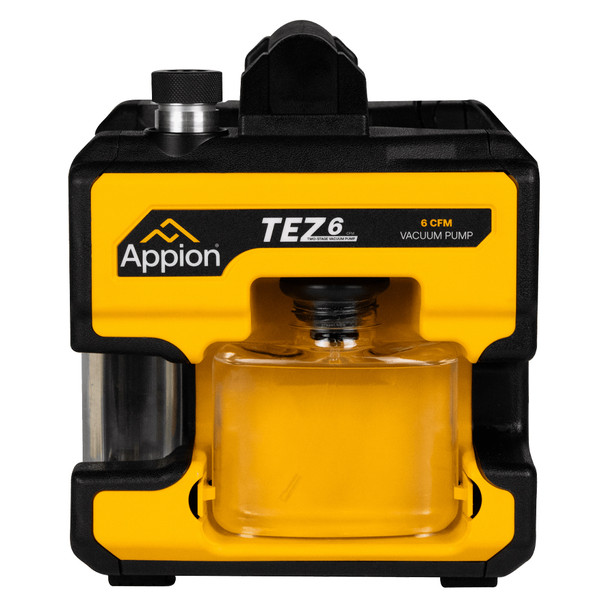

Appion TEZ6 Residential Vacuum Pump 6CFM
Save Hours, Save Days, Save Money - Evacuate AC/R Systems up to 10x Faster
This compact, lightweight pump weighs just over 15 lbs, yet delivers the power and durability needed for any job. Featuring three input fittings and a high-performance design, the TEZ6 optimizes evacuation efficiency, reducing your downtime on the job site. Experience lightning-fast oil changes with the new TEZOM oil cartridge system and automatic oil lockout. With its auto-switching power supply and locking IEC connector, the TEZ6 is ready to work anywhere.
Key Features & Benefits
- Lightweight and compact — weighs just over 15 lbs for easy portability
- Durable construction built to withstand harsh jobsite conditions
- Multi-port input with 1/4 in and dual 3/8 in ports for direct connection to multiple hoses
- High-performance 6 CFM rating for fast and efficient evacuation
- Auto-switching power supply compatible with 100–240 volts AC for worldwide use
- Advanced anti-suckback system eliminates check valves and other flow restrictions
- Auxiliary oil cartridge storage for quick access to backup oil
- Remote exhaust vent for improved ventilation during operation
- Quick change oil cartridge system simplifies maintenance and reduces downtime
- Replacement oil available in cartridges, quarts, and gallons
- Power cord storage compartment for organized transport
- Appion HVAC/R products are A2L Compatible
- Locking IEC power connector for secure and reliable power connection
- Pair with the Appion SpeedKit-V for maximum speed!
Specs
| TEZ6 Vacuum Pump Specs | |
|---|---|
| Free Air Displacement | 6 CFM (170.25 L/min) @ 60 Hz |
| Ultimate Vacuum | 15 microns |
| Oil Capacity | 8 oz (236 ml) |
| Weight | 15.1 lbs (6.8 kg) |
| Dimensions | 11.5 x 7.6 x 9.5 in (29.2 x 19.3 x 24.1 cm) |
| Oil Type |
Appion Ultimate Deep Seal Vacuum Pump Oil Replacement oil available in cartridges, quarts, and gallons |
| Inlet Port Sizes | (2) 3/8 in, (1) 1/4 in |
| Pump Type | Two Stage - Rotary Vane Pump |
| Motor Type | 1 hp BLDC |
| Pump RPM | 2200 RPM |
| Power Source | Auto-Switching (100–120 VAC, 5 A) (120–240 VAC, 4 A) 50/60 Hz |
| Plug Type | Locking IEC C13/C14 |
| Operating Temps | −4 °F to 131 °F (−20 °C to 55 °C) |
| Storage Temps | −4 °F to 131 °F (−20 °C to 55 °C) |
| Hazardous Location | Class 1, Div. 2, Group D, T5 |
Includes
- (1) Appion TEZ 6 Vacuum Pump
- (2) Tezom Oil Cartridge
- (1) Power Cord
Appion TEZ6 Vacuum Pump Manual
