Description

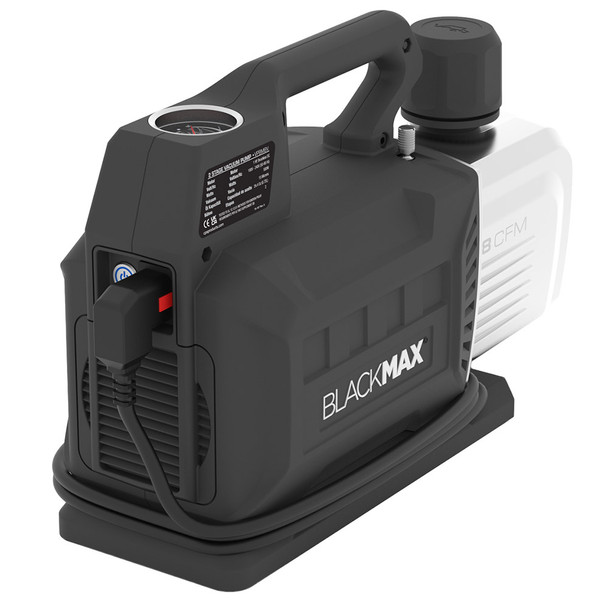

CPS BlackMax VPBM8V 8 CFM Vacuum Pump Brushless DC Motor - A1, A2, A2L, and A3 Compatible
Custom designed vacuum pump for HVACR PROS
Featuring unparalleled power, lightweight construction, and variable speed operation, the BlackMax VPBM Series vacuum pumps stand out as the top choice in their class. All have a brushless DC motor, ignition-proof starting components, and 15 micron ultimate vacuum and are for use on HVACR systems where Class A1 (lower toxicity, nonflammable); Class A2L (lower toxicity, low flammability); Class A2 (lower toxicity, flammable) and Class A3 (lower toxicity, higher flammability) refrigerants have already been recovered.
Designed for degassing and dehydrating systems prior to refrigerant charging, the VPBM Series vacuum pumps ensure the elimination of non-condensibles and moisture, preventing subsequent harm to refrigerant or refrigerant oil, and ultimately, preserving the system integrity.
Key Features and Benefits
- 8 CFM
- For systems where ASHRAE Class A1, A2, A2L & A3 lower toxicity refrigerants have been recovered

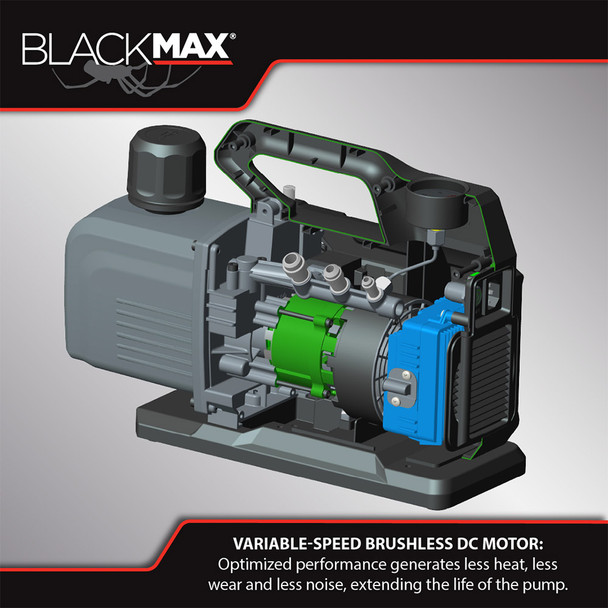

- 1 HP, variable speed, brushless DC motor
- 100 to 240VAC (50/60Hz) universal voltage
- In-line 1/2", 3/8",1/4" hose connection ports
- Stores/operates in extreme temperatures

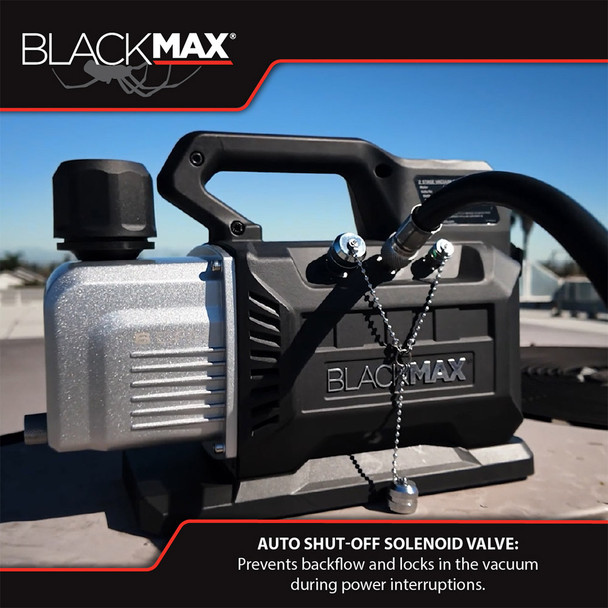

- Auto shut-off solenoid valve
- Large analog vacuum gauge for quick reference
- Large vertical oil sight glass to view oil level and purity
- Closed, hoist-type handle

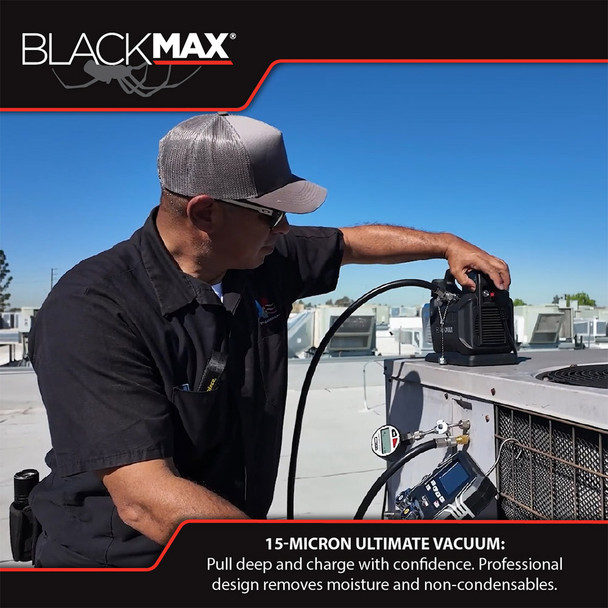

- 15 Micron ultimate vacuum

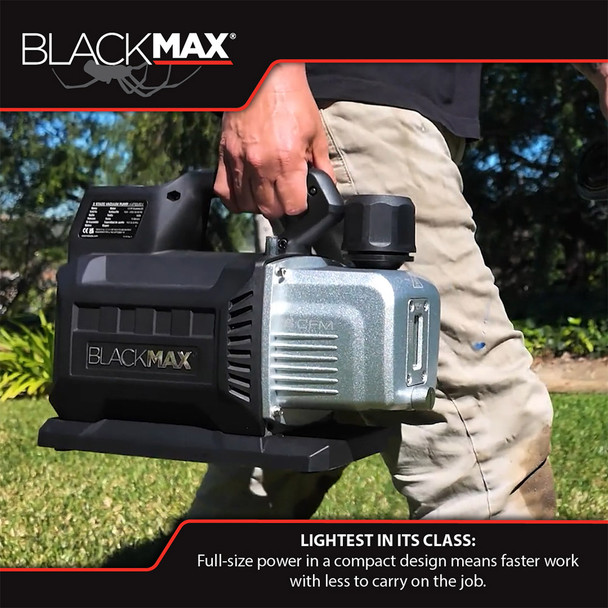

- Lightweight (22.4 Lbs / 10.1 Kg)
- Compact, portable size (0.57 cu. ft.)
- Quiet Operation
Specs
| Maximum Free Air Displacement | 8 CFM |
| Stage | 2 |
| Ultimate Vacuum | 15 Microns |
| Refrigerant Class | Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine) |
| Voltage | Universal Voltage: 100V min- 240V max, 50/60Hz |
| Maximum RPM | 3200 |
| Motor Size | 1 HP |
| Motor Type | BLDC (Brushless DC Motor With Variable Speed Start Up) |
| Watts | 500 |
| Ignition Proof On/Off Switch | Flashing Green: Standby; Solid Green: Pump Is Running |
| Power Cord | Locking 90° IEC Type, 10 Ft (3m) Length |
| Vacuum Pump Oil Capacity | Min. 16.4 Oz (0.48 L) - Max. 24.4 Oz (0.72 L) |
| Exhaust/Oil Fill Cap | Mist Free |
| Vacuum Intake Ports | In line 1/4", 3/8" and 1/2" SAE Male Threads |
| Analog Vacuum Gauge | Units: kPa, InHg (Accuracy +/-2%) |

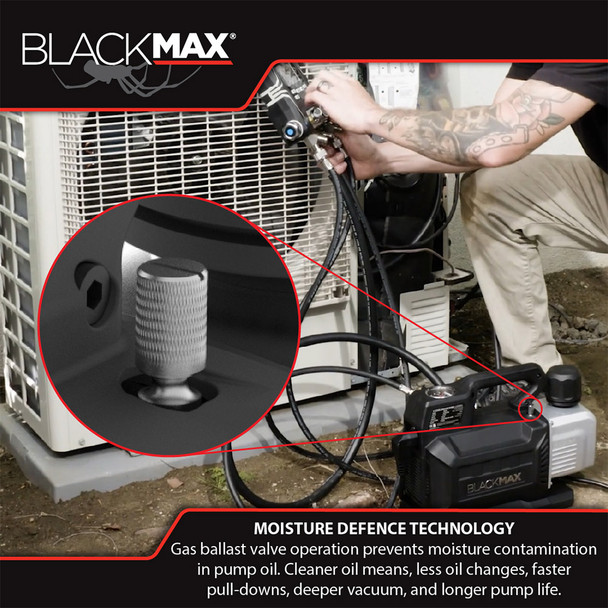

| Gas Ballast Valve | Drys Out The 2nd Stage. Plated Brass |
| Solenoid Valve | Normally Closed. Open When Vacuum Pump Is Energized |
| Operating Temperature Range | 5°F to 130°F (-15°C to 55°C) |
| Thermal Overload Protection | Yes |
| Pump Weight | 22.4 Lbs (10.2 Kg) |
| Actual Size | 10.5" H x 6.06" W x 15.5" L (267 mm x 164 mm x 394 mm) |
| Approvals | CE and UKCA (Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB) EMC (Electro-Magnetic Compatibility): EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021 |
| Warranty | 2 Year |
Includes
- (1) CPS BlackMax VPBM8V 8 CFM Vacuum Pump
CPS BlackMax Vacuum Pump Series Manual
