Description
NAVAC NKS2 Deluxe Mini Split Tool Kit with Flaring Tool, Digital Torque Wrench, and Tubing Tools
Advanced tool kit for mini split installation
The NKS2 tool kit carries all the essential tools you will need for working on mini-splits. The NEF6LM Cordless Flaring Tool features quick accurate flaring and ultra-light at 2.9 lbs, allowing you to work in compact spaces with one-hand operation. The NTW1 Digital Torque Wrench with digital readout saves your torque settings and peak hold. The NVR1 Valve Core Removal Tool features two sizes in one tool, and is designed for high-pressure refrigerants.
Key Features & Benefits
- Complete, professional-grade tool kit designed for mini-split installation and service
- Includes the NEF6LM cordless power flaring tool for fast, accurate flares in tight spaces using one-hand operation
- Digital torque wrench provides precise tightening with digital readout, saved torque settings, and peak hold
- Valve core removal tool rated to 20 microns and compatible with both 1/4" and 5/16" flare fittings
- Covers common mini-split tubing sizes with cutters, reamers, deburring tools, and flare gauge included
- Ideal for HVAC technicians looking to streamline mini-split installs with fewer tool changes
Kit Includes
- NEF6LM Cordless Power Flaring Tool - Lithium battery: 7.4V 2Ah 14.8Wh Tube OD: 1/4", 3/8", 1/2", 5/8", 3/4"
- NTW1 Digital Torque Wrench - 3.1 - 62.7 ft·lb (4.2 - 85 N-m)
- NVR1 Valve Core Removal Tool - Vacuum related to 20 microns, For use with both 1/4" and 5/16" flare fittings
- NHK1 Hex Wrench Set - 30-Piece Hex Key Set, SAE: 7/250"-3/8", Metric: 0.7-10 mm
- NTC6 Tube Cutter - Tube OD 1/8" - 3/4"

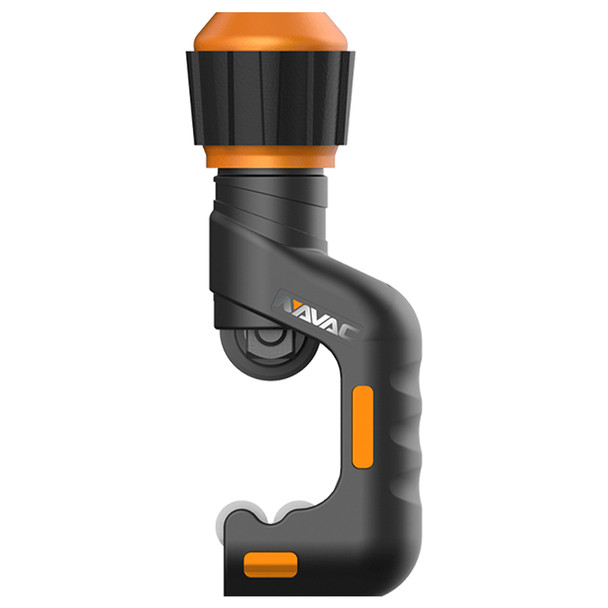

- NTC12 Tube Cutter - Tube OD 1/8" - 1-1/4"

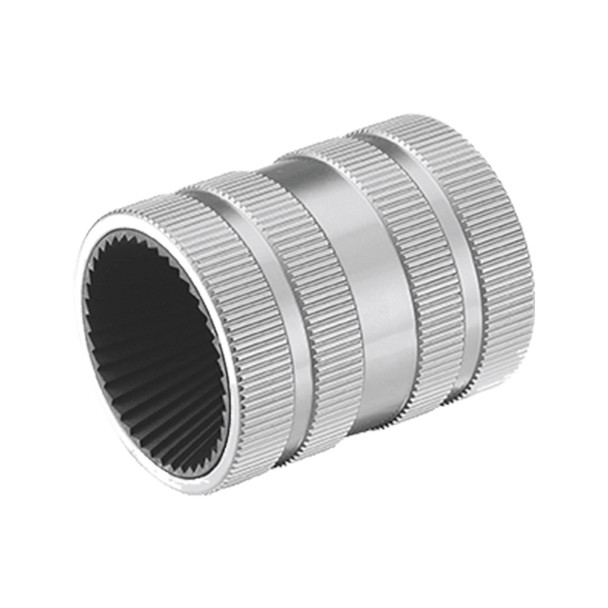

- NTR14 Internal/External Reamer - Tube OD 1/8" - 1-1/2"
- NTD28 Tube Deburrer - 2 spare blades included
- NFG1 Flare Gauge - Tube sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
Specs
| NEF6LM Flaring Tool Specs | |
|---|---|
| Tubing Type | Copper |
| Tubing OD | 1/4", 3/8", 1/2", 5/8", 3/4" |
| Power | DC Motor |
| Cone Speed | 120 RPM |
| Battery Capacity | Up to 100 flares per charge |
| Time to flare | Under 30 seconds |
| Dimensions | 10" x 4" x 4" |
| Weight | 2.9lbs |
| Battery | 7.4V 2Ah 14.8W |
| Quick Charge | 30 minutes |
| NTW1 Torque Wrench Specs | |
| Torque Measuring Range | 3.1 - 62.7 ft-lb (4.2 - 85 N-m) |
| Jaw Size | 0.2 - 1.2 inch (5 - 30 mm) |
| Battery | AAA x 2 |
| Weight | 3 lbs |
| Waranty | 1 Year |
Includes
- (1) NEF6LM Cordless Power Flaring Tool
- (1) NTW1 Digital Torque Wrench
- (1) NVR1 Valve Core Removal Tool
- (1) NHK1 Hex Wrench Set
- (1) NTC6 Tube Cutter
- (1) NTC12 Tube Cutter
- (1) NTR14 Internal/External Reamer
- (1) NTD28 Tube Deburrer
- (1) NFG1 Flare Gauge
