Description

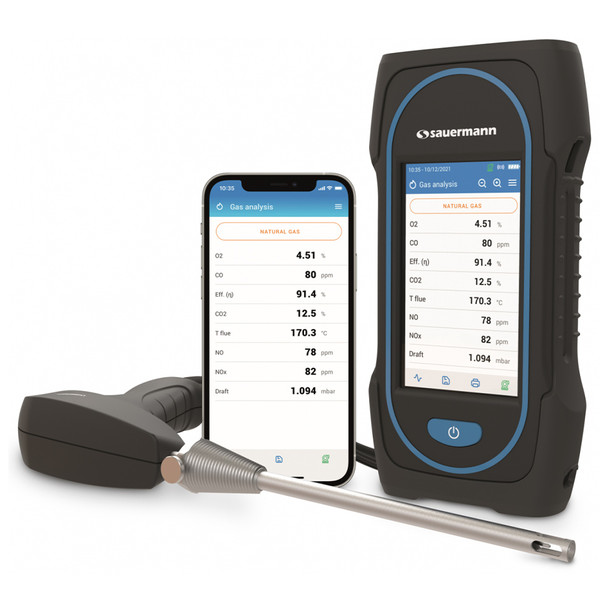

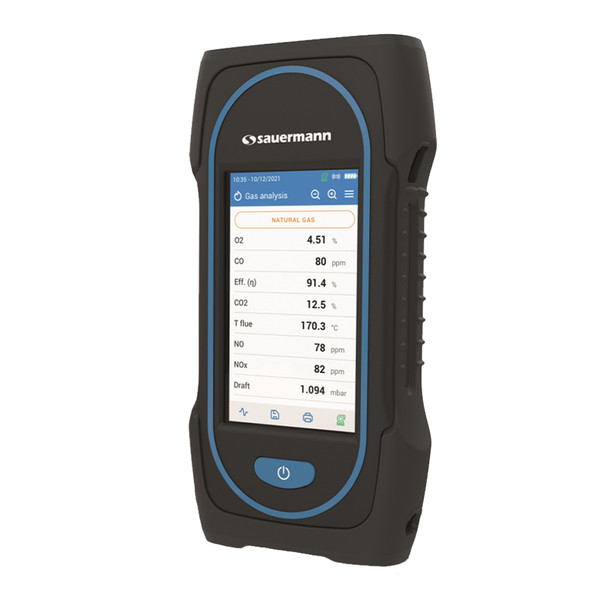

Sauermann Si-CA 130 Two Gas Commercial Combustion Analyzer Kit with O2, CO, Probe and Hard Case
Comprehensive, versatile analyzer with touch-screen display
TruTech Calibrates: Already have this analyzer and are in need of calibration or service? Our Cal-Lab can help you with that! Submit your calibration request using the Service Form and instructions HERE.
The Si-CA 130 features a touch-screen display and comes with PC-based management software (in addition to the smartphone app) for more in-depth combustion gas analysis. The three field-replaceable cells and sensors offer expanded measurement capability.
Features:
- Up to 3 Sensors (O2 and CO included)
- CO sensor measurement up to 8,000 ppm
- Auto pump cut-off for high CO levels
- Large color touch screen
- Graphical data display
- Data management with automatic logging & report creation
- Lightweight, only 12 oz
- Draft & differential pressure measurements
- Combustion efficiency & excess air calculations
- Quick and easy pump On/Off control
- Predictive maintenance with estimated sensor life & calibration reminders
- Protective rubber holster
- Now works with the measureQuick App!
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
Download the Sauermann Combustion App for your Android or iOS devices!
The Sauermann Combustion app lets you control your Si-CA analyzer remotely, view measurement results in real time, and customize them before exporting in the format of your choice.
App Features:
- Fast, easy wireless connection to any iOS or Android device
- Remote live view of combustion analysis data as list or graph
- Remote control to change settings
- Data saving, including automatic logging
- Report creation in PDF, CSV (for Excel) and XML formats
- Databases for customers, operators & equipment
Video Tutorials by Sauermann
Specs
| Parameter | Sensor Type | Measuring Range | Resolution | Accuracy |
| O2 | Electrochemical | 0 to 25% | 0.01% | ±0.2% vol |
| CO | Electrochemical | 0 to 8000 ppm | 1 ppm | ±8 ppm < 160 ppm ±5% rdg up to 2000 ppm ±10% rdg > 2000 ppm |
| CO2 | Calculated | 0 to 99.9% | 0.1% | - |
| Flue Temperature | TcK | -4 to +2282 °F -20 to +1250 °C |
0.1 °F 0.1 °C |
±3.6 °F or ±0.5% rdg ±2 °C or ±0.5% rdg |
| Air Temperature | NTC or TcK | -4 to +248 °F -20 to +120 °C |
0.1 °F 0.1 °C |
±3.6 °F ±2 °C |
| Differential Temperature | Calculated | 0 to 2282 °F 0 to 1250 °C |
0.1 °F 0.1 °C |
- |
| Pressure / Draft | Semiconductor | -200 to +200 mbar -80 to +80 inH2O |
0.01 mbar 0.001 inH2O |
±1% rdg ±0.03 mbar ±1% rdg ±0.012 inH2O |
| High accuracy draft | Semiconductor | 500 Pa | 0.1 Pa | ±0.5 Pa < 10 Pa ±3 Pa up to 150 Pa ±2 % rdg > 150 Pa |
| Excess Air | Calculated | 0 to 999% | 1% | - |
| Efficiency | Calculated | 0 to 100% (Gross/HHV) | 0.1% | - |
| Eficiency (Condensation) | Calculated | 0 to 125% (Net/LHV) | 0.1% | - |
| Stack Gas velocity | Calculated | 0 to 99 m/s 0 to 19,500 fpm |
0.1 m/s 1 fpm |
- |
| General Specifications | ||||
|---|---|---|---|---|
| Dimensions | 7.5 x 3.5 x 4.9 in (19.4 x 9.9 x 4.9 cm) | |||
| Weight | 12oz (350g) | |||
| Display | Color Touch Screen with Graphing; Size: 480 x 272 pixels | |||
| Keypad | 1 On-Off key | |||
| Material | ABS-PC | |||
| Protection | IP42 | |||
| Connection | - Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm. Range up to 15 m (50 ft), depending on smartphone radio strength. Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy - USB |
|||
| Power supply | Rechargeable battery, USB power supply Li-Ion 5100 mA/h 3.6 V battery Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz Mains unit: 5 Vdc/2A |
|||
| Battery | Battery life > 8 h Charging time: Fully charge: < 6.5 h 50%: < 2.5 h |
|||
| Environmental conditions of use | Temperature: from -5 to 45 °C (23 to 113 °F) Hygrometry: in non-condensing conditions (< 85% RH) Maximum altitude: 2000 m (6561’) |
|||
| Storage temperature | -4 to 122 °F (-20 to 50 °C) | |||
Includes
- (1) Si-CA 130 Analyzer
- (1) O2 gas sensor
- (1) CO gas sensor
- (1) Flue gas probe with dual hose
- (1) Water trap with filter
- (1) AC power supply / charger
- (1) USB cable
- (1) Protective rubber holster
- (1) Internal wireless communication module
- (1) Soft carrying case
- (1) Quick Start Guide
- (1) Calibration certificate
- (1) Mobile app & PC software
