Sauermann Si-CA 130 Two Gas Commercial Combustion Analyzer Kit with O2, CO, Probe and Soft Case

Comprehensive, versatile analyzer with touch-screen display

Also available with Hard Case or NO sensor

TruTech Calibrates: Already have this analyzer and are in need of calibration or service? Our Cal-Lab can help you with that! Submit your calibration request using the Service Form and instructions HERE.

The Si-CA 130 features a touch-screen display and comes with PC-based management software (in addition to the smartphone app) for more in-depth combustion gas analysis. The three field-replaceable cells and sensors offer expanded measurement capability.

Features:

Up to 3 Sensors (O2 and CO included)
CO sensor measurement up to 8,000 ppm
Auto pump cut-off for high CO levels
Large color touch screen
Graphical data display
Data management with automatic logging & report creation
Lightweight, only 12 oz
Draft & differential pressure measurements
Combustion efficiency & excess air calculations
Quick and easy pump On/Off control
Predictive maintenance with estimated sensor life & calibration reminders
Protective rubber holster
Now works with the measureQuick App!

The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!

Download the measureQuick App for your Android or iOS devices

Download the Sauermann Combustion App for your Android or iOS devices!

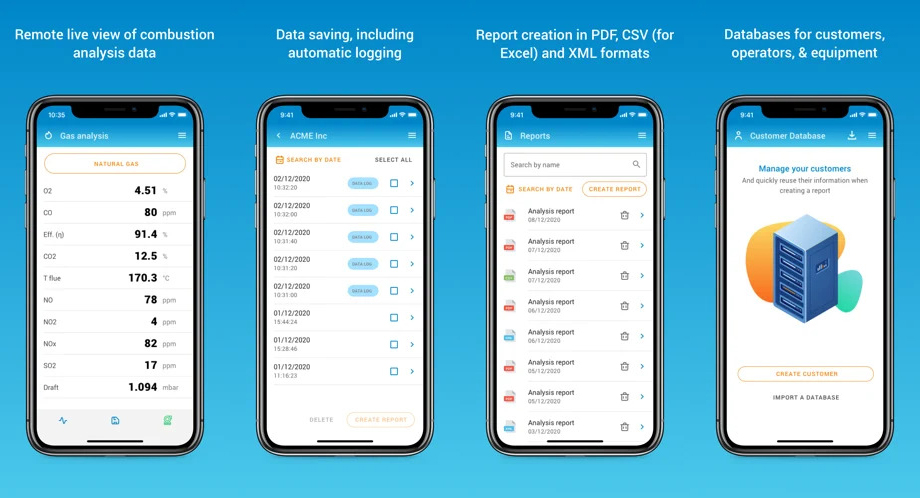

The Sauermann Combustion app lets you control your Si-CA analyzer remotely, view measurement results in real time, and customize them before exporting in the format of your choice.

App Features:

Fast, easy wireless connection to any iOS or Android device
Remote live view of combustion analysis data as list or graph
Remote control to change settings
Data saving, including automatic logging
Report creation in PDF, CSV (for Excel) and XML formats
Databases for customers, operators & equipment

Add a digital edge to your combustion analysis: Sauermann offers a range of compact and intuitive analyzers to enhance your performance.

Compare and pick the right analyzer for the job

	Si-CA 030	Si-CA 130	Si-CA 230
	Click Here	Click Here	Click Here
LCD Display Size	2.8 in	4.3 in	4.3 in
Display Resolution	320 x 240	480 x 272	480 x 272
Touch Screen Display	No (5 Buttons)	Yes (plus on/off button)	Yes (plus on/off button)
Dimensions	7.5 x 3.5 x 1.6 in (9.9 x 19.4 x 4.9 cm)	7.5 x 3.5 x 1.6 in (9.9 x 19.4 x 4.9 cm)	11 x 4.3 x 2 in (11.2 x 28 x 5.5 cm)
Weight	12 oz - 350 g	12 oz - 350 g	30 oz - 825 g
Sensors	Up to 3 (O2, CO, NO)	Up to 3 (O2, CO, NO, Low NO)	Up to 6 (O2, CO, NO, Low NO, NO2, Low NO2, SO2, Low SO2, CxHy2S)
Max CO Measurement	8,000 PPM	8,000 PPM	50,000 PPM (with dilution)
CO Dilution			✓
Field Replaceable Calibrated Sensors		✓	✓
Flue Gas Velocity with Pitot Tube		✓	✓
Measurement Storage	Smartphone	Internal: 2,000 data points + Smartphone and PC	Internal: 2,000 data points + Smartphone and PC
PC Software (wireless & USB)		✓	✓
Smartphone App	✓	✓	✓
Applications	Residential, Commercial	Residential, Commercial	Commercial, Industrial

Video Tutorials by Sauermann

Specs

General Specifications
Parameter	Sensor Type	Measuring Range	Resolution	Accuracy
O2	Electrochemical	0 to 25%	0.01%	±0.2% vol
CO	Electrochemical	0 to 8000 ppm	1 ppm	±8 ppm < 160 ppm ±5% rdg up to 2000 ppm ±10% rdg > 2000 ppm
CO2	Calculated	0 to 99.9%	0.1%	-
Flue Temperature	TcK	-4 to +2282 °F -20 to +1250 °C	0.1 °F 0.1 °C	±3.6 °F or ±0.5% rdg ±2 °C or ±0.5% rdg
Air Temperature	NTC or TcK	-4 to +248 °F -20 to +120 °C	0.1 °F 0.1 °C	±3.6 °F ±2 °C
Differential Temperature	Calculated	0 to 2282 °F 0 to 1250 °C	0.1 °F 0.1 °C	-
Pressure / Draft	Semiconductor	-200 to +200 mbar -80 to +80 inH2O	0.01 mbar 0.001 inH2O	±1% rdg ±0.03 mbar ±1% rdg ±0.012 inH2O
High accuracy draft	Semiconductor	500 Pa	0.1 Pa	±0.5 Pa < 10 Pa ±3 Pa up to 150 Pa ±2 % rdg > 150 Pa
Excess Air	Calculated	0 to 999%	1%	-
Efficiency	Calculated	0 to 100% (Gross/HHV)	0.1%	-
Eficiency (Condensation)	Calculated	0 to 125% (Net/LHV)	0.1%	-
Stack Gas velocity	Calculated	0 to 99 m/s 0 to 19,500 fpm	0.1 m/s 1 fpm	-

Dimensions	7.5 x 3.5 x 4.9 in (19.4 x 9.9 x 4.9 cm)
Weight	12oz (350g)
Display	Color Touch Screen with Graphing; Size: 480 x 272 pixels
Keypad	1 On-Off key
Material	ABS-PC
Protection	IP42
Connection	- Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm. Range up to 15 m (50 ft), depending on smartphone radio strength. Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy - USB
Power supply	Rechargeable battery, USB power supply Li-Ion 5100 mA/h 3.6 V battery Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz Mains unit: 5 Vdc/2A
Battery	Battery life > 8 h Charging time: Fully charge: < 6.5 h 50%: < 2.5 h
Environmental conditions of use	Temperature: from -5 to 45 °C (23 to 113 °F) Hygrometry: in non-condensing conditions (< 85% RH) Maximum altitude: 2000 m (6561’)
Storage temperature	-4 to 122 °F (-20 to 50 °C)

Includes

(1) Si-CA 130 Analyzer
(1) O2 gas sensor
(1) CO gas sensor
(1) Flue gas probe with dual hose
(1) Water trap with filter
(1) AC power supply / charger
(1) USB cable
(1) Protective rubber holster
(1) Internal wireless communication module
(1) Soft carrying case
(1) Quick Start Guide
(1) Calibration certificate
(1) Mobile app & PC software
