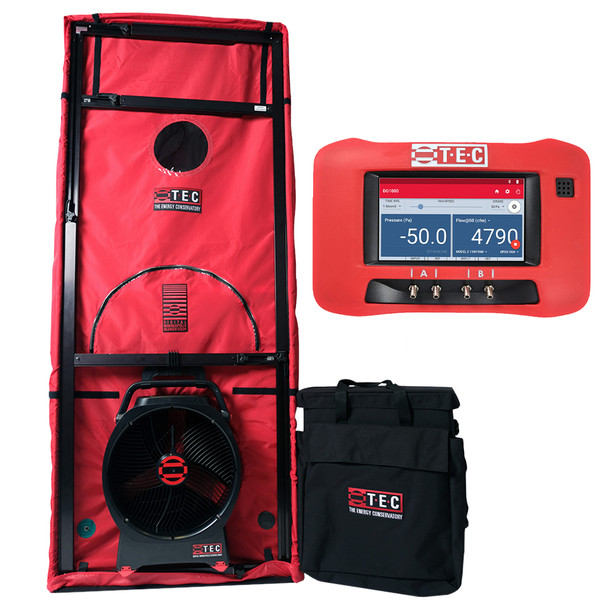

TEC Minneapolis Model 5 Blower Door™ System with Battery and DG-1000 Gauge
Faster, Simpler Building Airtightness Testing
The Minneapolis Blower Door™ has long been recognized as an industry-leading building airtightness testing system, and the new Model 5 Digital Minneapolis Blower Door raises the standard even further. Now cordless, wireless, and tubeless, the Model 5 lets you test faster and with less setup - no cables to run, no tubing to manage. It's also significantly lighter than previous models, making it easier to carry and maneuver on the job. A new smart field check feature helps ensure your fan is reading accurately before you even start the test, giving you added confidence in your results. The Model 5 Digital Minneapolis Blower Door is the system of choice for utility DSM programs, energy raters, HVAC contractors and weatherization professionals.
Key Features & Benefits
- Complete digital Minneapolis Blower Door™ system with everything required for fully automated testing
- Automatic ring detection helps streamline setup and testing procedures
- Wireless integrated fan speed control for convenient operation
- Tubeless flow sensor design improves durability and simplifies maintenance
- Durable injection-molded fan housing backed by a 5-year TEC repair warranty
- Adjustable aluminum frame allows for quick installation in a wide range of door openings
- Measures airflow from 20 to 3,768 CFM with included flow rings
- Expandable measurement range down to 2.4 CFM with optional Flow Ring D (not included)
- 14-foot power cord provides flexibility during testing and setup

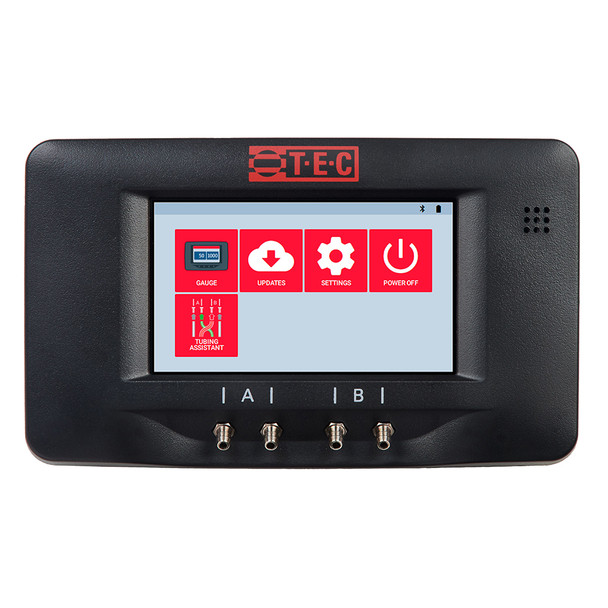

- Includes the DG-1000 dual channel digital pressure gauge
- Integrated battery solution provides cordless fan operation and increased portability
Specs
| Model 5 Fan and Frame Specs | |
|---|---|
| Maximum Flow (Free Air) | 3,768 CFM (1,778 l/s, 6,402 m³/h) |
| Maximum Flow @ 50 Pa | 3,150 CFM (1,490 l/s, 5,350 m³/h) |
| Maximum Flow @ 75 Pa | 2,931 CFM (1,383 l/s, 4,980 m³/h) |
| Minimum Flow @ 50 Pa | 1,415 CFM Open Fan; 415 CFM Ring A; 100 CFM Ring B; 22 CFM Ring C; 2.4 CFM Ring D |
| Fan Dimensions | 15.75" Inlet Diameter x 17.75" L x 25" H x 8" W |
| Fan Weight | 19 lbs. (8.61 kg) with Rings A, B, C and No Flow Plate |
| Fan Weight with Optional Battery | 21.5 lbs. (9.75 kg) with Rings A, B, C, No Flow Plate, and Integral Battery |
| Flow Accuracy | ±3% with DG-8 or DG-1000; Ring D ±4% or 1 CFM |
| Power Requirements | 110-250 VAC, 50/60 Hz, 600 W Maximum |
| Battery Type | Integrated Field-Replaceable Battery |
| Battery Runtime | Typically 50 Single-Point Blower Door Tests per Charge |
| Battery Recharge Time | Typically Less Than 1 Hour |
| Operating Temperature | 32°F to 115°F (0°C to 46°C) |
| Storage Temperature | -20°F to 140°F (-29°C to 60°C) |
| Calibration Interval | 6 Years |
| Standards Compliance | ASTM E779, ASTM E1554, CGSB-149.10-M86, EN 13829, ISO 9972, ATTMA Technical Standard 1, NFPA 2001, RESNET, and USACE |
| Frame Material | Extruded Aluminum |
| Panel Dimensions (Finished) | 51" x 105" (W x H) |
| Panel Dimensions (Usable) | 45" x 96" (W x H) |
| Seal Material | EPDM Flexible Gasket |
| Panel Material | Heavyweight Coated Nylon with Built-In Vinyl Window |
| DG-1000 Gauge Specs | |
| No. of Independent Pressure Channels | Two |
| Pressure Range | -2,500 to +2,500 Pascals (-10 to +10 inches of water) |
| Display Resolution |
0.1 Pa for readings 0 - 999.9 Pa 1 Pa for readings 1000 Pa and larger |
| Accuracy at Typical Use Conditions*/** | 0.9% of pressure reading or 0.12 Pa, whichever is greater |
| Units of Measure |
Channel A - Pascals (Future addition - inches of water) Channel B - Pascals, CFM, CFM@75, CFM@50, CFM@25, ACH50, CFM@25/ft², CFM@25/100ft², CFM@50/ft², CFM@50/100ft², CFM@75/ft², CFM@75/100ft² (Future additions - inches of water and equivalent metric units) |
| Auto-zero | On start up and then once every 10 seconds |
| Time Averaging | 1, 5, 10 seconds and long-term (continuous update) |
| Operating Temperature Range*** | 42 degrees F to 115 degrees F (5.5 degrees C to 46 degrees C) |
| Storage Temperature Range | -4 degrees F to 140 degrees F (-20 degrees C to 60 degrees C) |
| Display | 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen |
| Display Backlight | User adjustable (default 40%) |
| Power | Two 18650 Lithium Ion batteries with AC charger/power adapter included |
| Battery Life |
Over 15 hours of continuous use with default settings 13 hours of continuous use with default settings and wifi active |
| Auto-Off | Adjustable from 10 minutes to 2 hours |
| Dimensions | 7.0 x 4.2 x 1.4 inches |
| Weight | 15.7 oz |
Includes
-
Model 5 Minneapolis Blower Door™ kit includes:
- Model 5 fan
- Standard Carry bag
- Single Fan Nylon Panel
- Ring A
- Ring B
- Ring C
- 30' Clear Hose tubing
- Wind tee
- Crosbar hanger for fan
- 14' Power cord
- Integral battery
-
Aluminum frame carrying case contains:
- Two 96" vertical pieces
- Two 45" horizontal pieces
- Two 45" crossbars
-
DG-1000 Pressure and Flow Gauge Kit:
- DG-1000 pressure and flow gauge
- Carrying case
- Protective boot
- Two rechargeable lithium-ion batteries (installed)
- Charging block and cable
- Screen protector
- 15 ft. green hose
- 10 ft. red hose
- Fan control cable
- Digital gauge extension tube
- Plastic hose connectors
- Calibration certificate
TEC Minneapolis Model 5 Blower Door™ Manual
