Description
The Complete NAVAC Advanced HVAC Kit by TruTech Tools
Vacuum, Recovery, Charging, Leak Detection, Tubing Tools
Kit Includes:
- (1) NAVAC NRP8Di Vacuum Pump 8CFM
- (1) NAVAC NR7 Brushless A2L Compatible Refrigerant Recovery Unit
- (1) NAVAC NX4V NEXUS Smart Digital Manifold Gauge with NM1VS Vacuum Gauge
- (1) NAVAC SK3TPH1 Smart Refrigerant and Air Side Diagnostics Kit with Temperature, Pressure, and Psychrometer Probes
- (1) NAVAC NEF6LM Cordless Power Flaring Tool 3/4" Max OD
- (1) NAVAC NTE11L BreakFree Power Tube Expander Kit - 3/8" to 1-1/8" OD
- (1) NAVAC NTB7L BreakFree Cordless Power Tube Bender Kit with Reverse Bending Attachment - Max OD 7/8"
- (1) NAVAC NML1 Refrigerant Leak Detector
- (1) NAVAC NRS2i01 Electronic Wireless Scale 220 lb
- (1) NAVAC NHB1 High Flow Refrigerant Hose, Black, 6', 1/2" Diameter, 3/8" to 1/4" Fitting
- (1) NAVAC NH5SC 1/4" Ball Valve Refrigerant Charging Hoses 5ft Set of 3
- (1) NAVAC F2010 A2L Left Handed Thread Adaptor 1/4" x 1/4"
NAVAC NRP8Di Vacuum Pump
Brushless DC Pump with Smart Control
The era of smart refrigerant evacuation begins here with the combination of inverter, vacuum measurement and smart control in one unit. The light-weight, inverter-driven, dual-stage vacuum pump delivers high-speed evacuation along with high ultimate vacuum. Vacuum measurement technology precisely measures the system pressure. A digital display provides a comprehensive view of the system's internal vacuum condition. Smart control assures the system's vacuum by automatically extending the evacuation time after the system reaches the preset vacuum level. A built-in solenoid valve prevents oil back flow and seals the system to preserve the vacuum during power outage or accidental disconnect. Upon completion of operation, the unit will beep to remind the technician that evacuation is complete, so they can move on to the next job.
Key Features & Benefits
- Brushless DC technology is lighter and more efficient
- Smart control for extended evacuation, automation, and reminders
- Built in micron gauge with precise digital display
- Dual stage for high ultimate vacuum
- Solenoid valve prevents oil backflow and preserves vacuum
- 1/4", 3/8", and 1/2" inlet ports

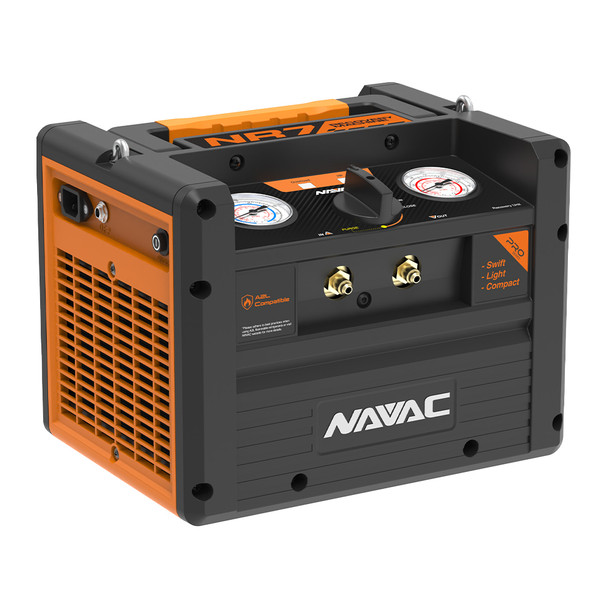

NAVAC NR7 Brushless A2L Compatible Refrigerant Recovery Unit
Compact, Light, and Fast - A2L Refrigerant Compatible
Introducing the NAVAC NR7 Recovery Unit: Compact, Efficient, and A2L-Compatible! This lightweight unit, at just 20.3 lbs, offers HVAC professionals easy storage and transportation solutions. The NR7 features a twin-cylinder structure for rapid refrigerant recovery and a brushless DC motor, enhancing both efficiency and A2L refrigerant compatibility. Its oil-free compressor is versatile, accommodating a wide range of common refrigerants. Additionally, the NR7's purge function eliminates the risk of refrigerant mixing, ensuring a smooth operation. A standout feature is its three-row large condenser equipped with extra-dense fins, designed for quick heat dispersion from the refrigerant, elevating your job's efficiency to new heights.
Moreover, the NR7 has CSA safety certification, providing technicians peace of mind with full-tank, overload, and high-pressure protection. Boasting an efficient design, twin-cylinder system, and one-key operation, the NR7 is a great choice for quick and reliable recoveries.
Key Features & Benefits
- Compact and lightweight unit
- Easy to store and carry at only 20.3 lbs
- Brushless DC motor technology
- Soft and easy starting
- Fast recovery using twin cylinder and large condenser
- Easy to use one key operation
- Purge function to prevent mixing of various refrigerants
- Oil-Free compressor is suitable for all common refrigerants
- CSA safety certification - Full-tank, Overload & High Pressure protection
- A2L Compatible
- 1 Year manufacturer warranty
NAVAC NX4V NEXUS Smart Digital Manifold Gauge with Vacuum Gauge and Temperature Clamps
Smart and precise
The NAVAC NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen. Designed to meet diverse needs, it offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability, while the foldable hidden hook enhances portability. With Class 0.4 accuracy and a clear digital display, it delivers precise readings. Built to endure field challenges, its impact-resistant, rubber-covered construction guarantees reliable, long-term performance.
Key Features & Benefits
- Smart and wireless, connects to included temp clamps and included micron gauge
- Works with the MyNAVAC App
- Multiple operation modes
- Manifold mode with SH/SC display, pressure test, and evacuation mode
- 4-valve with 3/8" vauum port
- Class 0.4 accuracy with digital display
- Aluminum body with 1/4 turn ball valves
- Easy to use
NAVAC NMV1S Premium Micron Vacuum Gauge
Smart Measurement
NAVAC NMV1S Premium Micron Vacuum Gauge uses a Pirani high-precision vacuum sensor to accurately measure vacuum levels. A large backlit digital display provides a comprehensive view of vacuum conditions. It features a rechargeable battery and compact design. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level increases from the decay target, it will buzz rapidly and flash the backlight to warn of leaks.
Key Features and Benefits
- Pirani vacuum sensor, professional grade, precise
- Rechargeable battery with long battery life
- Large easy-to-read backlit digital display with auto power off
- High pressure protection, 500 PSI max
- Buzzing alert - vacuum level reminder, leakage warning, decay target and duration
- Compact design, easy to carry, storage bag included
NAVAC NRS2i01 Electronic Wireless Scale 220 lb
Precise charging
The NAVAC NRS2i01 series Bluetooth wireless electronic refrigerant scale is designed and reinforced with advanced technology, providing more precise and portable refrigerant charging technology. Through the Bluetooth connection between handheld device and electronic charging scale, you can perform other tasks while charging. While real-time refrigerant charge is transmitted to the handheld device, it will buzz when the charge is within 2 oz of the setting, and alert the operator to stop the charging once the setting is reached. The magnesium alloy weighing pan and ergonomic, one-piece, portable design make it lighter and easier to carry.
Key Features & Benefits
- Wireless connectivity between handheld unit and scale
- Convenient hide away storage for handheld device in scale body
- Large LCD display with backlight for better readability, and full numeric keypad for easy operation
- Precision sensor with .05% accuracy
- 220 lb. capacity with 0.2 oz. resolution
- Compact design at only 3.3 lb. with magnesium alloy weighing pan, easy to carry
- Comes in a carrying bag
NAVAC SK3TPH1 Smart Refrigerant and Air Side Diagnostics Kit with Temperature, Pressure, and Psychrometer Probes
Smart charging and comfort diagnostics
The SK3TPH1 Smart Refrigerant & Air Side Diagnostics Kit is an all-in-one solution for HVACR professionals. It includes two NST1 and NST2 Bluetooth Temperature Clamps with high-accuracy thermistor sensors, two NSP1 Bluetooth Pressure Probes with automatic VSAT/LSAT calculations, two NSH1 Bluetooth Psychrometers for detailed air-side data, and two F1030 1/4"w SAE Access Tee Connectors. Each probe (NSH1, NSP1) features a built-in digital display for standalone use, rechargeable lithium batteries, and user-friendly controls for smooth operation. This comprehensive kit ensures precision, efficiency, and convenience for system diagnostics and achieving optimal performance.
Key Features & Benefits
- Smart probes with built in digital displays
- Probes are suitable for standalone use
- Wireless connection with the MyNAVAC App and works with measureQuick
- High accuracy sensors
- A2L compatible
NSP1 Bluetooth Pressure Probes
- Auto VSAT/LSAT calculations through app
- Rechargable battery
- Easy switch knob for either High (HP) or Low (LP) Side
NST1 & NST2 Bluetooth Temperature Clamps
- 1-5/8" jaw opening
- High accuracy thermistor sensor
- Connects with the NEXUS manifold
NSH1 Bluetooth Psychrometer Probes
- Detailed psychometric datapoints
- Rechargable battery
- Easy switch knob for either High (HP) or Low (LP) Side
NAVAC NML1 Leak Detector
Precise measurement
With semiconductor sensor, it is precise and has a long service life. Equipped with a high-performance, rechargeable lithium battery, it is easy to carry and easy to use.
Key Features & Benefits
- Semiconductor sensor, precise and long service life.
- Equipped with a high-performance, rechargeable lithium battery with over 8 hours operation on a full charge.
- External power supply, when needed, for extended use.
- Sensitivity of 0.10 oz/year.
- Detects all CFCs, HCFCs, HFCs and replacement blends
- Auto calibration for work in contaminated areas
- Ergonomic design, easy to carry and easy to use.
- Carrying case included.
NAVAC NEF6LM Cordless Power Flaring Tool 3/4" Max OD
Quick and accurate flaring. Ultra light.
A welcome departure from creating flares manually, the NEF6LM Cordless Power Flare yields accurate, hassle-free flares in a fraction of the time compared to traditional flaring methods. Weighing less than 3 pounds, the new Power Flaring Tool equips with a high-performance rechargeable lithium battery which makes over 100 flares per charge. NAVAC's second-generation automatic flaring solution is significantly reduced in weight and price without sacrificing accuracy or consistency. Designed to perform reliably in harsh environments, the NEF6LM Cordless Power Flare also allows one-button, one-hand operation. In addition, it features a battery power indicator and a flashlight It comes in a sturdy blow-molded case with five commonly-sized flare dies, one battery, a charger, and a premium flare gauge.
Key Features & Benefits:
- Complete a flare in 15 seconds
- Over 100 flares per charge
- Quick charge in 30 minutes
- Ultra light at 2.9 lbs
- Quick connect with ready-to-use clamps
- 45° flaring for R410A
- Limit baffle assures precise flare depth
- Easy one-button operation
- Battery power indicator
- LED flash light
- Includes a NAVAC NFG1 Flaring Gauge
- Replacement clamps are available: 5/16" NAQC1, 1/4" NAQC2, 3/8" NAQC3, 1/2" NAQC4, 5/8" NAQC5, 3/4" NAQC6

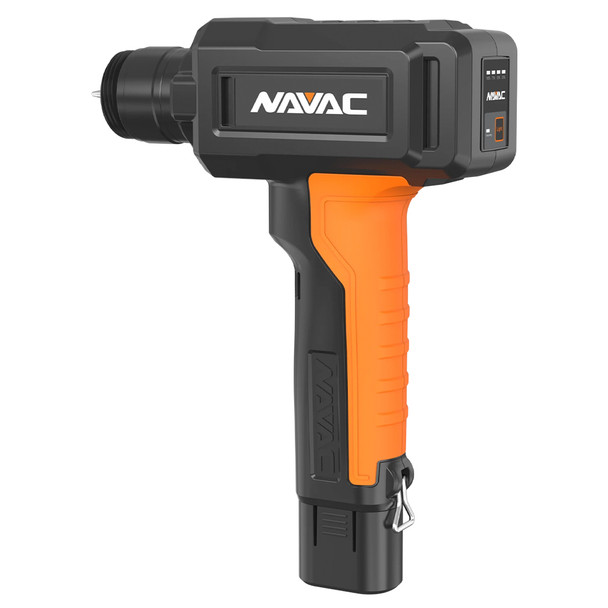

NAVAC NTE11L BreakFree Power Tube Expander Kit - 3/8" to 1-1/8" OD
Effortless, Quick, and Accurate Expanding
Get the job done quickly with the NTE11L BreakFree Power Tube Expander. Expand a tube in 12 seconds by pressing one button. The long-lasting rechargeable lithium battery allows up to 200 expansions on a single charge. Battery and charger are compatible with NAVAC NEF6LM BreakFree Power Flaring Tool. Expander heads from the NTE11H Hydraulic Expander can be shared with NTE11L with a NAQA1 adapter.
- One-button operation and automatic pressure relief
- Complete an expansion in 12 seconds
- Quick connect heads sizing 3/8", 1/2", 5/8", 3/4", 7/8", 1" and 1-1/8"
- Large capacity lithium battery, up to 200 expansions per charge
- Quick charge in 30 minutes
- Innovative head design minimizing 3/8" tube splitting
- Battery power indicator
- LED flashlight
NAVAC NTB7L BreakFree Cordless Power Tube Bender Kit - Max OD 7/8"
Includes the reverse bending attachment kit
It is a tough and frustrating job for HVAC Service Techs when bending large diameter tubes, which consumes tremendous labor work while needing precise focus on bending angles. Furthermore, getting the tube out of a traditional bender mandrel is another frustrating moment. Suitable for tubing sizes 1/4" to 7/8" OD, the NAVAC NTB7L saves tons of your time and labor and makes the job much easier. By pressing a single controller switch, you can bend the tube to any desired angle. When a bend is completed, the baffle will push the tube out automatically while the tool resets, helping you remove the tube effortlessly. Its large-capacity lithium battery makes over 100 bends each charge and can be fully charged in 30 minutes.
Key Features and Benefits
- Battery-driven effortless bending
- Powerful for large size tubing
- Push and hold for 90° bending
- Automatic tube release
- Large lithium battery
- Over 100 bends per charge
- Quick charge in 30 minutes
- Patented tubing size selector
- 7 sizes in one selector
- Easy to switch to different tubing size setting
- Quick connect mandrel and crossbar
- Battery power indicator
- Easy operation
- Ergonomic handle design
- Stop any time for customized angles
Specs
| NRP8Di Vacuum Pump Specs | |
|---|---|
| Flow Rate | 8 CFM |
| Ultimate Vacuum | 15 Micron |
| Pump Design | Dual stage |
| Motor Power | 3/4 HP |
| Inlet Ports | 1/4", 3/8", 1/2" Flare |
| Oil Capacity | 20 oz |
| Dimensions | 14 x 5.3 x 11.9 in. |
| Weight | 28 lbs. |
| NR7 Recovery Machine Specs | |
| Refrigerant Type |
Category III: R-12, R-134a, R-1234yf, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115 V / 60 Hz |
| Motor | 1 HP |
| Max Current Draw | 12.5 A |
| Compressor | Oil-less, air-cooled, piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| Recovery Rate |
Rates in lbs/min (kg/min): R-410A: Direct Vapor 0.54 (0.25), Direct Liquid 12 (5.5), Push/Pull 17 (7.8) R-22: Direct Vapor 0.58 (0.27), Direct Liquid 9 (4.1), Push/Pull 15.8 (7.2) R-134a: Direct Vapor 0.47 (0.21), Direct Liquid 8 (3.6), Push/Pull 15 (6.8) |
| Dimensions | 12.2 × 9.4 × 9.6 in |
| Weight | 20.3 lb |
| NX4 Manifold Gauge Specs | |
| Refrigerant Type | R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116 R-123, R-124, R-125, R134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502 R-503, R-507A, R-508B, R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd R-1234yf, R-1234ze |
| Maximum Pressure | 1087psi (7500kPa) |
| Firmware | Firmware can be updated on NAVAC website or with MyNAVAC™ App |
| Ports | (1) 3/8" SAE vacuum; (3) 1/4" SAE for suction line liquid line, and refrigerant recovery/charging |
| Maximum Manifold Pressure | 1087psi (7500kPa) |
| Power Supply | Rechargeable 3000mAh lithium battery |
| Accessory | Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case, NMV1S Micron Gauge |
| Warranty | 2 years |
| NM1VS Micron Gauge Specs | |
| Model | NMV1S |
| Maximum Pressure | 500 psi (34.5 bar) |
| Range | 0 ~ 25000 microns, 0 ~ 3300 Pa, 0 ~ 33.3,Bar, 0 ~ 25 mmHg |
| Resolution | 0.01 micron (<10 microns), 0.01 Pa (<10 Pa), 0.001mBar, 0.001 mmHg |
| Accuracy | 15 - 1000 microns: ± 5% of reading (at 68°F) |
| Operating temperature | 32~122°F(0 ~ 50°C) |
| Units | Pa, mBar, mmHg, Microns |
| Sensor | Pirani sensor |
| Battery | 2000mAh Li-ion |
| Weight | 6.2 oz |
| Accessory | Angled stem, storage bag |
| Warranty | 1 year |
| NST1 & NST2 Temp Clamp Specs | |
| Temp Range | -40~257°F (-40~125°C) |
| Accuracy | ± 2.3°F (± 1.3°C) |
| Resolution | 0.1 |
| Sensor Type | Thermistor Pt100 |
| Temperature Units | °F, °C |
| Max. Tube OD | 1-5/8" (42mm) |
| Battery Type | 2 x AAA |
| Max. Bluetooth Range | Up to 450' (150m) |
| Display Type | TFT |
| Unit Weight | 0.35 lbs |
| IP Rating | IP54 |
| NSP1 Pressure Probe Specs | |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 50m (164 ft) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.6oz (0.47lbs / 215g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
| NSH1 Psychrometer Probe Specs | |
| Measurement Range | Temperature: -40°F to 249.8°F Humidity: 0 to 100% RH |
| Measurement Units | °F (Fahrenheit) °C (Celsius) % RH (Relative Humidity) °Ftd (Fahrenheit, dry bulb temperature) °Ctd (Celsius, dry bulb temperature) Wet Bulb °F Wet Bulb °C |
| Accuracy | Humidity: ±2.0%RH (10 to 90%RH) (at 77°F/25°C) ±5.0%RH (< 10%RH or > 90%RH) (at 77°F/25°C) Temperature: ±1.1°F (-4°F to 32°F) / ±0.6°C (-20~0°C) ±0.9°F (32°F to 140°F) / ±0.5°C (0~60°C) ±1.3°F (140°F to 248°F) / ±0.7°C (60°C~120°C) |
| Resolution | Humidity: 0.1%RH Temperature: 0.1°C |
| Sensor Type | Humidity: Capacitive Polymer Film Temperature: Precision Thermistor |
| Response Time | 10 seconds |
| Bluetooth Range | 164ft (50m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.8oz (0.49lbs / 220g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Flexible Probe | Length: 7.9 in (200 mm) Diameter: 0.39 in (10mm) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
| NML1 Leak Detector Specs | |
| Refrigerants | CFC, HCFC, HFC refrigerants and blends. R32 & R454B compatible |
| Minimum Leakage | ≤0.1 oz/year (R-134a) |
| Response Time | ≤3 s (depending on leak size and location) |
| Battery Life | ≥8 hours |
| System Pressure | ≥50 psi |
| Sensor Life | ≥1 year under normal usage (1500 h) |
| Probe Length | 15.7 in |
| Weight | 0.77 lb |
| Calibration | Auto |
| NEF6LM Flaring Tool Specs | |
| Tubing Type | Copper |
| Tubing OD | 1/4", 3/8", 1/2", 5/8", 3/4" |
| Power | DC Motor |
| Cone Speed | 120 RPM |
| Battery Capacity | Up to 100 flares per charge |
| Time to flare | Under 30 seconds |
| Dimensions | 10" x 4" x 4" |
| Weight | 2.9lbs |
| Battery | 7.4V 2Ah 14.8W |
| Quick Charge | 30 minutes |
| NTE11L Expander Specs | |
| Tubing Type | Soft or Annealed Copper |
| Tubing O.D. | 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" |
| Expansion Time | Complete in 12 seconds |
| Power | 7.4V 2Ah 14.8Wh |
| Battery type | Li-ion, 1pc |
| Battery Capacity | Up to 200 Expansions per charge |
| Quick Charge | 30 minutes |
| Tool Weight | 3.4 lbs (with battery) |
| Warranty | 2 Years |
| NTB7L Tube Bender Specs | |
| Tubing Type | Soft (HVAC) Copper |
| Tube O.D. | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8" |
| Power | 7.4V, 2Ah, 14.8Wh |
| Battery | Li-ion (charger included) |
| Weight | 6.2 lbs (with battery) |
Includes
NAVAC NRP8Di Vacuum Pump 8CFM
- (1) NRP8Di 8CFM Vacuum Pump
- (1) Vacuum Pump Oil
NAVAC NR7 Brushless A2L Compatible Refrigerant Recovery Unit
- (1) NR7 Recovery Machine
NAVAC NX4V NEXUS Smart Digital Manifold Kit
- (1) NAVAC NX4 NEXUS Smart Digital Manifold Gauge
- (2) NAVAC Wireless Temp Clamps
- (1) NAVAC NMV1S Vacuum Gauge
NAVAC SK3TPH1 Smart Refrigerant and Air Side Diagnostics Kit
- (2) NAVAC NSP1 Wireless Pressure Probes
- (2) NAVAC NSH1 Wireless Psychrometer Probes
- (1) NAVAC NST1 Wireless Temperature Clamp Low Side
- (1) NAVAC NST2 Wireless Temperature Clamp High Side
- (2) 1/4" SAE Tees
NAVAC NRS2i01 Electronic Wireless Scale 220 lb
- (1) NAVAC NRS2i01 Electronic Wireless Scale with Handheld Device
- (1) Storage Bag
NAVAC NML1 Leak Detector
- (1) NAVAC NML1 Leak Detector
- (1) Wall Charger
NAVAC NEF6LM Cordless Power Flaring Tool
- (1) NAVAC NEF6LM Power Flaring Tool
- (1) Battery with charger
- (1) NAVAC NFG1 Flaring Gauge
- (1) Hard Case
- (1 ea.) Flare heads (1/4", 3/8", 1/2", 5/8", 3/4")
NAVAC NTE11L Power Tube Expander
- (1) NAVAC NTE11L BreakFree Power Tube Expander
- (1 ea.) Quick Connect Expander Heads (3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8")
- (1) NBF2 Lithium Battery
- (1) NCF2 Battery Charger
- (1) Carrying Case
NAVAC NTB7L Tube Bender Kit
- (1) NAVAC NTB7L BreakFree Cordless Power Tube Bender
- (1) NBF2 Battery
- (1) NCF2 Charger
- (1) Reverse Bending Attachment
- (1) Hard Case
Hoses and Accessories
- (1) NAVAC NHB1 High Flow Refrigerant Hose, Black, 6', 1/2" Diameter, 3/8" to 1/4" Fitting
- (1) NAVAC NH5SC 1/4" Ball Valve Refrigerant Charging Hoses 5ft Set of 3
- (1) NAVAC F2010 A2L Left Handed Thread Adaptor 1/4" x 1/4"
Resources
NAVAC NRP8Di Vacuum Pump Manual
Software / App
Download the MyNAVAC™ App for your Android or iOS devices
The MyNAVAC App connects tools wirelessly to make jobs easier
App features:
- Smart phone displays the measured value in real time
- Remote control and setting
- Record and save the data required for monitoring and store it in the mobile phone
- The display of measured value can choose the process curve and table form, to display the data change of the system more comprehensively.
- The measurement results can be exported to measurement reports in EXCEL or PDF format, and sent out by e-mail or other means
- High-quality products and services, you can view relevant product manuals, product operation videos, FAQs and information feedback on the APP
