Description

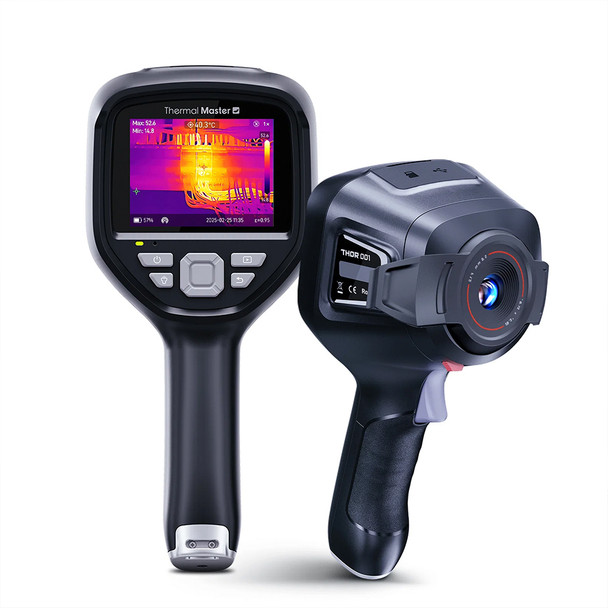

Thermal Master THOR 001 Expert Thermal Imaging Camera with Detachable Macro Lens
Professional performance rivaling high-end thermal cameras at a fraction of the cost
The Thermal Master THOR 001 Expert Thermal Imaging Camera is a professional-grade handheld thermal imager designed for HVAC/R, electrical, industrial, and building diagnostics. It features a 256x192 infrared sensor with Super IR software enhancement up to 512x384, delivering clear thermal detail for identifying heat loss, electrical faults, airflow issues, and insulation problems.
Built for detailed inspections, the THOR 001 includes a detachable macro lens that allows close-up thermal analysis of small components, circuit boards, and mechanical assemblies. High thermal sensitivity, accurate temperature measurement, and multiple imaging modes give technicians the tools needed to diagnose problems quickly and confidently in the field.
Key Features & Benefits
- 256x192 native IR resolution with Super IR enhancement up to 512x384
- Wide temperature measurement range from −4°F to 1022°F (−20°C to 550°C)
- High thermal sensitivity (NETD <35 mK) for detecting fine temperature differences
- Detachable macro lens for close-range inspections and detailed diagnostics
- Multiple imaging modes including Standard IR, Visual, Picture-in-Picture, and Fusion views
- 3.5" IPS display with smooth 25 Hz refresh for real-time scanning
- Adjustable emissivity, distance compensation, isotherms, and temperature alarms
- Built-in laser pointer, LED work light, and visual camera for inspection context
- Up to 8 hours of operating time with fast USB-C charging support
Unboxing and Setup Video
See the THOR 001 in action with a hands-on walkthrough covering setup, controls, and real-world use. The video highlights the large 3.5" IPS display, detachable macro lens, onboard photo and video capture, and wireless app connectivity, giving a clear look at how the camera performs during HVAC, electrical, and diagnostic inspections

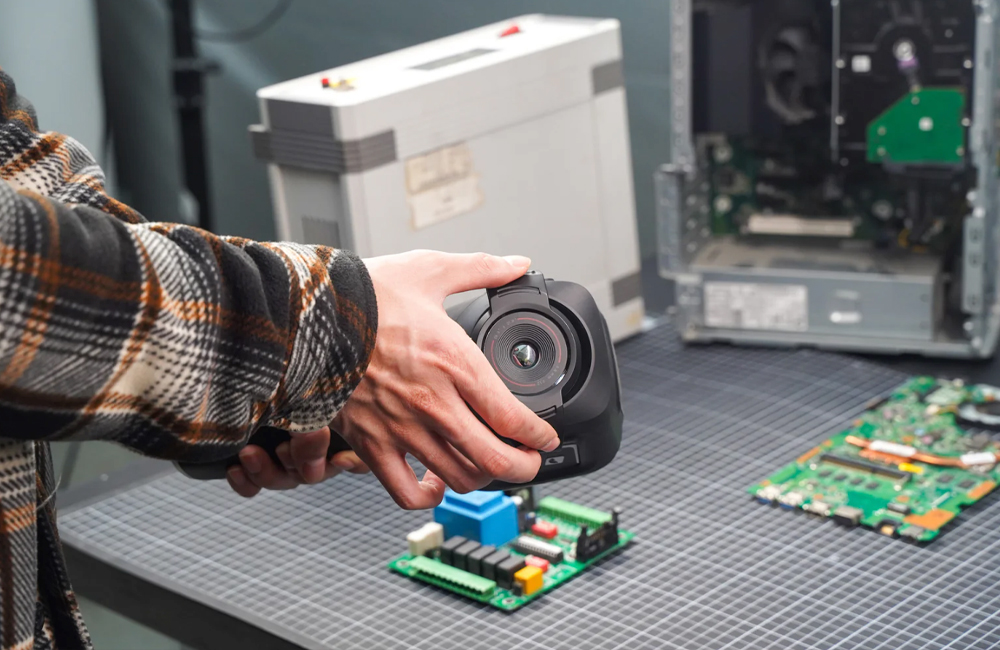

Detachable Macro Lens
Designed for close-range diagnostics, the THOR 001's detachable macro lens focuses down to 8 cm, allowing technicians to inspect components as small as 0.25 mm. Ideal for PCB troubleshooting, early HVAC system issues, and pinpointing abnormal heat patterns on industrial and electrical equipment.

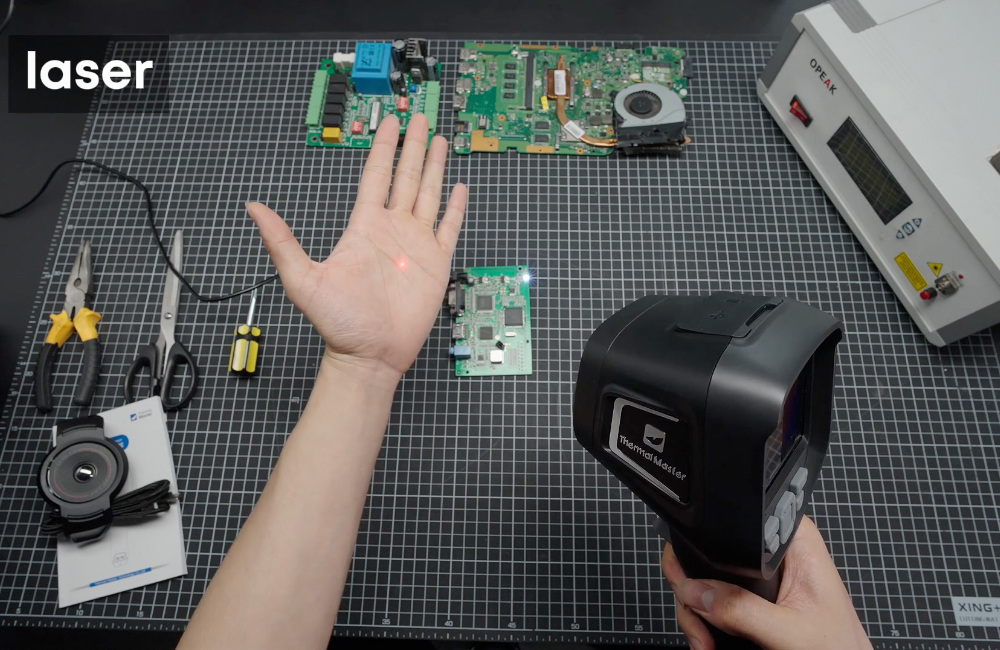

Flashlight & Laser Pointer
The THOR 001 features a built-in LED work light and laser pointer to support inspections in low-light environments. The flashlight improves visibility around equipment and panels, while the laser helps clearly identify target areas and pinpoint hotspots during thermal inspections.

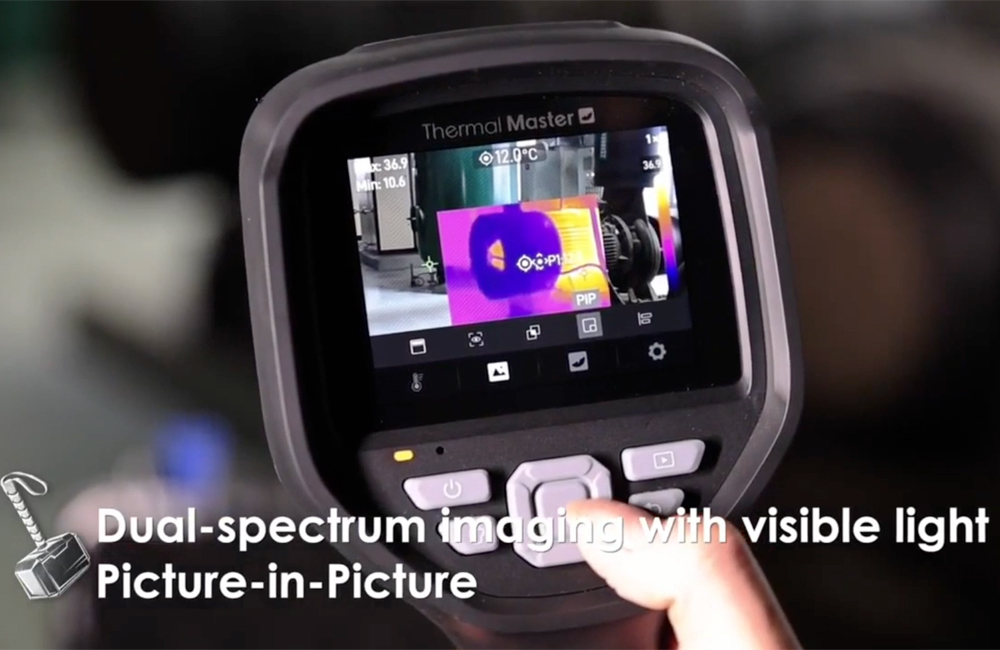

4 Image Viewing Modes
The THOR 001 offers multiple viewing modes, including infrared, visual, picture-in-picture (PIP), and fusion, allowing users to adapt the display to different inspection needs. These modes help improve context, highlight problem areas, and support clearer diagnostics.
Specs
| THOR 001 Thermal Imager Specs | |
|---|---|
| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | ±1.5°C or ±1.5% of reading |
| IR Resolution | 256x192 |
| Super IR Resolution | 512x384 |
| Thermal Sensitivity (NETD) | <35 mK |
| Macro Lens | Detachable macro lens included |
| Minimum Focus Distance | 8 cm |
| Lens Focal Length | 4.3 mm |
| Digital Zoom | 2x / 4x |
| Display | 3.5" IPS (640x480) |
| Image Frequency | 25 Hz |
| Field of View (FOV) | 40° x 30° |
| IFOV | 2.79 mrad |
| Pixel Pitch | 12 µm |
| Focus Mode | Fixed focus |
| Screen Refresh Rate | 60 Hz |
| Image Modes | IR (default), Visual, PIP, Fusion |
| Digital Camera | 2 MP |
| Laser Indicator | Yes |
| LED Work Light | Yes (flashlight mode) |
| Microphone | Yes |
| Wireless | Yes |
| PC-Based Analysis Software | Supported |
| Mobile App | ThermalSmart App |
| Supported Languages | 13 languages (English default) |
| Measurement Corrections | Emissivity, ambient temperature, distance compensation |
| Isotherm | Yes |
| Temperature Alarm | Max / Min temperature alarm |
| Alarm Methods | On-screen alert, flashlight prompt |
| Auto Image Capture on Alarm | Yes |
| Image Capture | Manual and time-lapse |
| Video Recording | MP4 with on-screen data |
| Fast Charging | 18 W (USB-C) |
| Battery | 5000 mAh rechargeable lithium battery |
| Charging Time | Approx. 4 hours |
| Operating Time | Up to 8 hours |
| Auto Shutdown | Configurable (Off, 5, 10, 20, 120 min) |
| Internal Storage | 8 GB RAM / 32 GB storage card |
| Connectivity | USB Type-C 2.0 (charging and data transfer) |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Included Accessories | Lens cap, hard case, tripod mount, tool belt |
Includes
- (1) THOR 001 Thermal Camera
- (1) Macro Lens Accessory
- (1) 32G Memory Card
- (1) 40" USB A to USB C Data Cable
- (1) Durable Hard Case
Thermal Master THOR Series Product Manual
Software / App
Download the ThermalSmart App for your iOS device

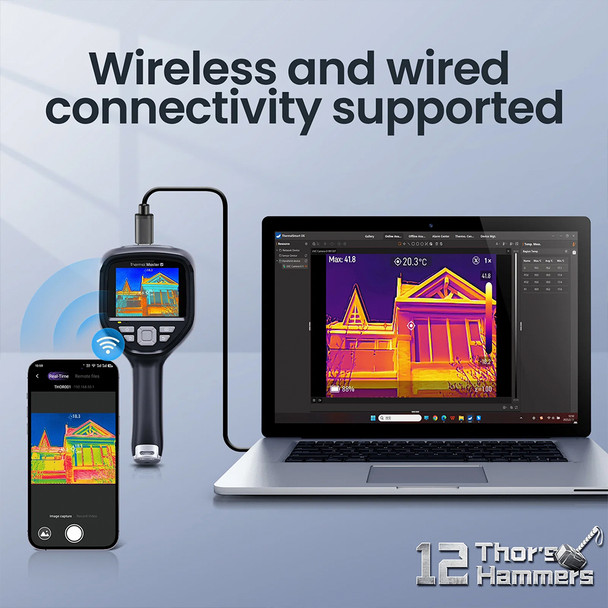

The ThermalSmart App connects via wireless network with Thor infrared thermal imaging devices, providing thermal preview, image analysis, and report generation. It is suitable for power, industrial, and maintenance applications, simplifying workflows and improving efficiency.
