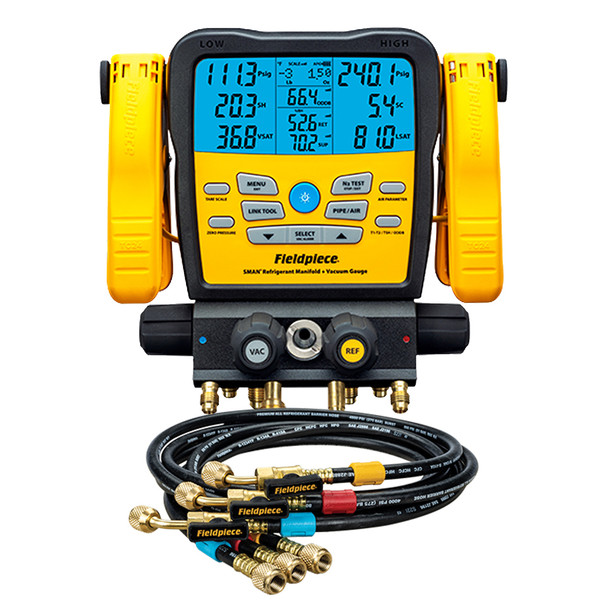

TruTech Tools Fieldpiece Digital Manifold Kit with Refrigerant Hose Set - Choose an SMAN Manifold and Hoses

TruTech Tools Fieldpiece Digital Manifold Kit with Refrigerant Hose Set - Choose an SMAN Manifold and Hoses

Meet the SMAN®. The Heart of Your Job.

Taking the pulse of an HVACR system requires experience, precision and reliability - everything you can count on with the SMAN Refrigerant Manifolds. SMAN measures, calculates and helps you diagnose with ease. View live pressure, temperature and vacuum readings on the large, 5-inch screen and connect your Job Link® wireless tools for a full system view on the display or in the app.

Key Features & Benefits

• Lighter, Smaller, more Durable, and more Field Serviceable than previous SMANs
• Loaded with over 70 refrigerants, including A2Ls
• Features an integrated vacuum gauge
• 3/8" Vacuum port and block for fast evacuations (SM482V)
• Made with heavy-duty casing, reinforced hook, protected thermocouple jacks and IP55 dust and water resistance
• Designed with low profile, lay-flat hose ports for added durability
• Includes hermetically sealed sight glass to see refrigerant flow and condition
• Runs a temperature compensated nitrogen pressure test, with timer
• Logs up to 168 hours of data
• Serves as a central data hub for Job Link wireless tools and connects to the Job Link System App
• Protected by an easy-open, soft case

Designed for Performance
Knowledge, power and experience are packed into the SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market. With wireless capabilities, data logging, and tightness testing, SMAN is built so you can do your job easier, faster and better.

Simply Strong
The SMAN is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work.

Packed with Knowledge
The SMAN is designed to work the way you do with advanced features to streamline your job and provide the answers you need.

• Measures
• Line pressures, pipe temperatures, dry bulb temperature and system vacuum
• Calculates
• Superheat, subcooling, vapor saturation, liquid saturation and delta T
• Live target delta T and target evaporator exit temperature with optional Job Link wireless tools
• Temperature-compensated pressure differential for nitrogen pressure testing
• Data Logs
• Stores up to 9 jobs internally
• Logs up to 168 continuous hours
• Customizable
• Select the measurements to display
• Select wireless ON/OFF
• Set high and low vacuum alarms

Add Job Link System wireless tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SR47 Refrigerant Scale. Place pipe clamps in the perfect location. View live air measurements and calculations while making adjustments. Monitor and record refrigerant weight for precise recovery and charging documentation.

---

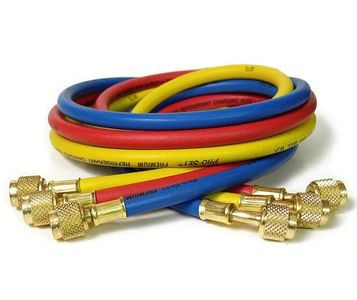

CPS HP5A and HP5E Premium 1/4" Refrigerant Hoses

Choose a hose set from the options above

CPS hoses bring unmatched performance and reliability to HVAC/R systems. Built reinforced, these premium hoses resist abrasion, kinking, and ozone degradation, delivering long-term durability under challenging conditions. Their burst pressures exceed industry standards, and their precision fittings ensure leak-free connections. Whether you're charging, evacuating, or pressure testing, Pro-Set Hoses offer the professional-grade dependability your work demands. Choose from Anti-Blowback (HP5A) or Ball Valve (HP5E) fittings.

Key Features & Benefits

• Anti-blowback valve prevents refrigerant loss and eliminates harmful refrigerant burns (HP5A)
• 45° ball valve end allows full control of flow on each hose (HP5E)
• Compatible with CFC, HCFC, HFC refrigerants and blends
• Leak-proof 8-sided crimps
• Working pressure 800 (Psi)
• Burst pressure 4000 (Psi)
• Fitting size: 1/4" x 1/4"
• Hose Length: 5 Ft (1.5m)
• Blow off grooves to prevent spray back
• Adjustable valve core depressor
• Extra deep knurling for easy grip
• Nylon permeation barrier (Meets SAE J2196)

---

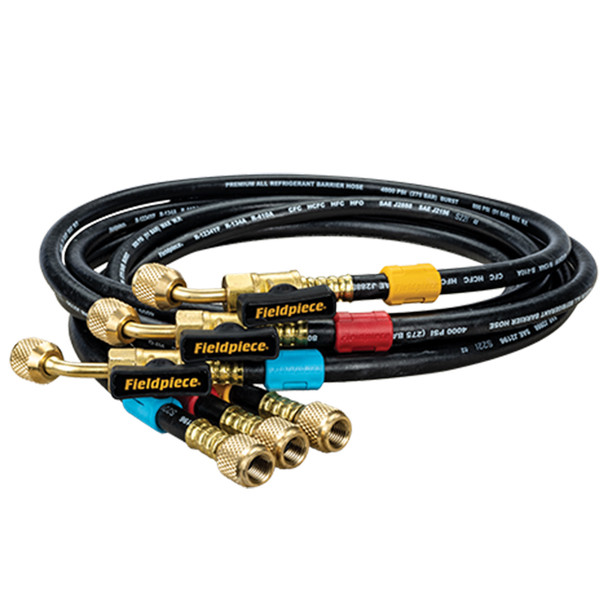

Fieldpiece HR3B 1/4" Ball Valve Refrigerant Charging Hoses

Choose a hose set from the options above

Every tech needs a reliable set of hoses. Fieldpiece has made theirs durable, long-lasting, and the same level of high quality you expect from Fieldpiece tools. Innovation is crucial in all Fieldpiece designs, and they didn't stop at hoses. Triple ring crimping, low abrasion knurling, and mix and match hose tags are just the start.

Key Features & Benefits

• A2L Compatible
• Rugged Full-Ring Triple Crimp
• Working pressure 800 (Psi)
• Burst pressure 4000 (Psi)
• Customizable Hose Color Tags Included
• Fitting size: 1/4" x 1/4"
• Hose Length: 5 Ft (1.5m)
• For charging, recovery and evacuation
• Permeation barrier (Meets SAE J2196)

---
