Description

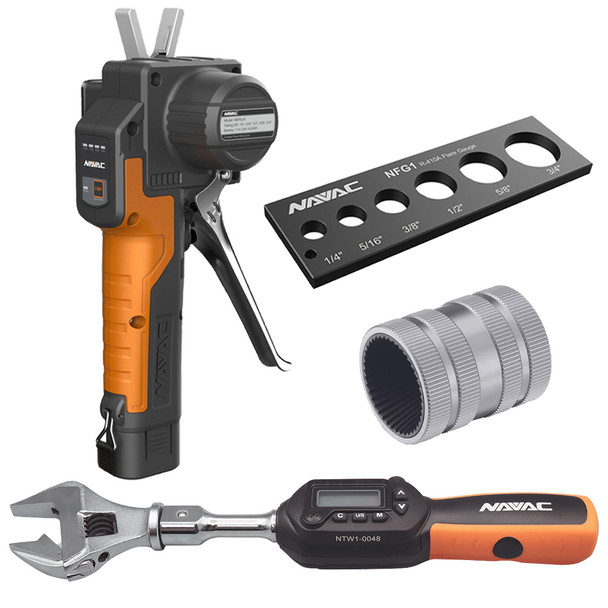

TruTech Tools Mini Split Repair Tool Kit - Advanced
Be ready for anything, customize your kit using the available options
This advanced kit includes a powered flaring tool, a digital adjustable torque wrench, an internal/external deburring tool, and flaring size gauge for precise flares. Customize your kit further using the available add-ons including micron gauges, core tools, core depressors, and thread sealant.
NAVAC NEF6L2 BreakFree® Power Flaring Tool with 5 Sizes for 1/4" - 3/4" Tube OD
Ultra light. Quick accurate flaring.
A game-changing alternative to manual flaring, the NEF6L2 BreakFree® Power Flare delivers fast, accurate, and hassle-free flares in a fraction of the time required by traditional methods. Weighing under 3 pounds, this lightweight automatic flaring tool features true one-button, one-hand operation and is engineered for reliable performance in harsh jobsite conditions. The NEF6L2 is powered by the new NBF3 Type-C rechargeable battery, capable of producing over 100 consistent flares per charge with faster, more convenient charging. Upgraded durable, lightweight tube clamps enhance strength and long-term reliability, while a built-in battery indicator and integrated flashlight improve usability in tight or low-light spaces. The NEF6L2 comes in a compact blow-molded case and includes five commonly used flare dies up to 3/4", along with the NBF3 battery, providing a complete, professional flaring solution right out of the box.
Key Features & Benefits
- Complete a flare in 15 seconds
- Over 100 flares per charge
- Quick charge in 45 minutes
- Ultra light at 2.9 lb
- Quick connect with ready-to-use clamps
- 45° flaring for R410A
- Limit baffle assures precise flare depth
- Easy one-button operation
- Battery power indicator
- LED flash light
- Replacement clamps are available: 5/16" NAQC1, 1/4" NAQC2, 3/8" NAQC3, 1/2" NAQC4, 5/8" NAQC5, 3/4" NAQC6

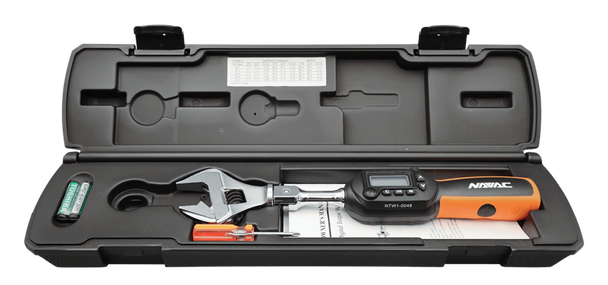

NAVAC NTW1 Digital Adjustable Torque Wrench
Digital Readout, Adjustable Jaw
The NAVAC NTW1 Digital Torque Wrench is accurate within 2%. It allows dual direction operation (CW & CCW) and selectable measuring units (ft-lb, in-lb, N-m, kg-cm) to fit all types of working conditions. It memorizes torque settings and peak hold. The real-time lights and beeping sound indicate how close it is to the target torques.
Key Features & Benefits
- Accurate within 2%
- Dual direction (CW & CCW)
- Torque setting memory & Peak hold
- Selectable measuring units (ft-lb, in-lb, N-m, kg-cm)
- Auto turn-off after 5 min.
- Indicator lights and sound for target torques
NAVAC NTR14 Internal/External Reamer
Easy to deburr
NAVAC NTR14 Internal & External Reamer, with its simple structure and multi-blade alloy steel surface and cone, is convenient to carry and easy to use.
Key Features & Benefits
- Multi-blade alloy steel internal surface and cone, durable and easy for deburring
- Ergonomic and slip-resistant aluminum body, light weight and easy to operate
- Tube sizes: 1/8" to 1-5/8" OD
NAVAC NFG1 Flare Gauge
Precise Measurement
For precise measurement of tube flare. Tube sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
Specs
| NEF6L2 Flaring Tool Specs | |
|---|---|
| Tubing Type | Soft (HVACR) Copper |
| Tubing OD | 1/4", 3/8", 1/2", 5/8", 3/4" (5/16" available separately) |
| Battery | Rechargeable lithium battery, 7.2V 2Ah 14.4Wh, Type-C charging port |
| Weight | 2.9 lbs (with battery) |
| Included Accessories | NBF3 Battery, Carry Case |
| NAVAC Digital Torque Wrench Specs | |
| Torque Measuring Range | 3.1 - 62.7 ft-lb (4.2 - 85 N-m) |
| Jaw Size | 0.2 - 1.2 inch (5 - 30 mm) |
| Battery | AAA x 2 |
| Weight | 3 lbs |
Includes
- (1) NAVAC NEF6L2 Cordless Power Flaring Tool with Case, Battery, and Charger
- (1) NAVAC NTW1 Digital Torque Wrench with Case
- (1) NAVAC NFG1 Flare Gauge
- (1) NAVAC NTR14 Internal/External Reamer
NAVAC NEF6L2 Power Flaring Tool Datasheet
