Description
Testo Build Your Own measureQuick Kit with testo Smart Probes - Choose Options to Customize Kit
testo Smart Probes are included by default, add on more items using the options above
All tools work with measureQuick, a single app which aggregates data, diagnoses faults, analyzes systems, educates HVACR technicians, and unlocks more profits on every call. Tailor your toolkit to your specific needs and build your personalized mQ Kit!

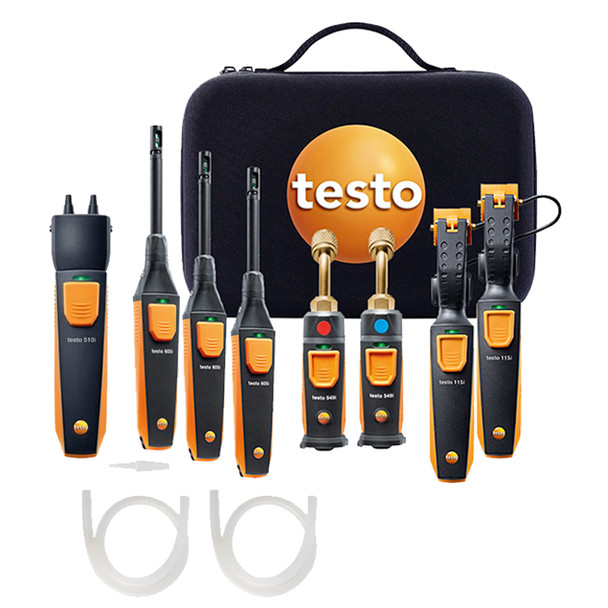

Kit Includes:
- (1) Testo 0563 0009 Smart Probes AC / Refrigeration Capacity Test Kit
- (1) Testo 605i Humidity Smart Probe - 2nd Gen
- (1) Testo 510i Differential Pressure Smart Probe
Add on using the options above:
- (1) Redfish iDVM 550 Wireless BlueTooth Power Clamp Meter
- (1) Fieldpiece SC480 True-RMS Wireless AC Clamp Multimeter
- (1) Fieldpiece SC680 True-RMS Wireless AC Clamp Multimeter
- (1) Sauermann Si-CA 030 Two Gas Residential Combustion Analyzer Kit with O2, CO, Probe and Soft Case
- (1) Sauermann Si-CA 130 Two Gas Commercial Combustion Analyzer Kit with O2, CO, Probe and Hard Case
- (1) TEC Minneapolis Digital TrueFlow Solution Full Kit with DG8 Manometer and All 8 Adapter Plates
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from manufacturers like Testo, Fieldpiece, and iManifold, providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Testo Smart Probes AC / Refrigeration Test and Load Kit
Works with measureQuick. Bluetooth range of up to 350 feet
The testo AC & Refrigeration test and load kit includes two testo 549i high-pressure measuring instruments, two testo 605i thermohygrometers and two testo 115i clamp thermometers for pressure, (air) temperature and humidity measurement. In conjunction with a smartphone or tablet, the kit is ideally suited to servicing and troubleshooting on air conditioning and refrigeration systems, as well as their installation. The testo 549i and testo 115i can be quickly and easily attached directly at the pressure connection or the temperature measuring point. It is now considerably easier to work at a longer distances, thanks to improved wireless connection to your smartphone or tablet.
The measuring values of both instruments are transmitted via Bluetooth to the testo Smart Probes App installed on your terminal device enabling convenient and flexible readout there. In addition, the App enables automatic calculation of evaporation and condensation temperatures as well as of heating/cooling capacity/output. All measurement data is viewable either as a diagram or a table. Finally, the measurement data report can be e-mailed directly as a pdf or Excel file.
Features:
- Measure high-side & low-side refrigerant pressure & temperatures (simultaneously) of AC/refrigeration systems
- Testo 549i now includes 45° angled hose connections
- Testo 605i now includes 90° foldable probe with built in attachment magnets
- NEW! Bluetooth range of up to 350 feet
- Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
- Calculate superheat and subcooling in the Smart Probe App
- Tough, accurate, and easy-to-use
- HVAC softcase holds the complete set of smart probes
- Operates with iOS or Android smart devices such as smart phones, tablets, etc.
Testo 510i Differential Pressure Manometer Wireless Smart Probe
Works with measureQuick. Bluetooth range of up to 350 feet
The testo 510i Smart Probe is a wireless differential pressure probe used for accurate low-pressure measurements. The testo 510i is great for measuring pressure in manifolds, static pressure, and pressure drops in buildings or ventilation systems. Use it to measure the pressure drop across coils and filters, or in ducts and systems.
Users can read the measurements using the testo Smart app installed on their smart device. It can be used for determining air velocity and volume flow, when used with pitot tubes (not included). The testo 510i works on smart devices with either Android or Apple operating systems. The testo Smart app is a powerful and easy to use tool. It allows you to remotely read measurements from up to six (6) Smart Probes, and easily document and report the results. Automatic calculations make it a snap! All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The app creates custom reports, which can be saved and/or shared by email. All your data can be stored and retrieved, saving you hours of time consuming paperwork!
Key Features & Benefits
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Measures static pressure, air flow, and volume flow (pitot tube not included)
- Measures manifold pressure and pressure drop across filters and coils, and has a measurement menu in the Smart app that includes pressure drop alarms
- Magnetic back holds instrument for hands-free operation
- Measurement of air humidity and temperature in rooms and ducts
- Determination of refrigeration/heating performance with two testo 605i
- Automatic calculation of the dewpoint and wet bulb temperature
- Problem-free use at measuring points that are a long distance apart - Bluetooth range up to 350 ft
- Measuring ranges 0 to 100 %RH and -4 to 140 °F
Specs
| Testo 115i | Testo 549i | Testo 605i | ||
|---|---|---|---|---|
| Sensor type | NTC | Pressure | Humidity – Capacitive | NTC |
| Measuring range | -58 to 302 °F | -14 to 870 psi | 0 to 100 %RH | -4 to 140 °F |
| Accuracy ±1 digit |
±2.3 °F (-4 to 185 °F) | 0.5 % of final value | ±3.0 %RH (10 to 35 %RH) ±2.0 %RH (35 to 65 %RH) ±3.0 %RH (65 to 90 %RH) ±5 %RH (< 10 %RH or> 90 %RH) (at 77 °F) |
±1.4 °F (-4 to 32 °F) ±0.9 °F (32 to 140 °F) |
| Resolution | 0.1 °F | 0.1 psi | 0.1 %RH | 0.1 °F |
| Clamp opening diameter | .25 to 1.5 in. | |||
| Connection | 7/16" – UNF | |||
| Overload rel. | 870 psi | |||
| Battery life | 250 hrs | 150 hrs | 150 hrs | |
| Dimensions | 7.2 x 3.5 x 1.2 in. | 4.9 x 1.3 x 1.2 in | 8.6 x 1.2 x 1.0 in. 2.9 in probe shaft | |
| Measurable media | CFC, HFC, HCFC, N, H2O, CO2 | |||
| Measuring Units | °F, °C | bar, psi, MPa, kPa | °F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F / °C | |
| Bluetooth Range | up to 350 ft | |||
| Storage temperature | -4 to 140 °F | |||
| Operating temperature | -4 to 122 °F | |||
| Compatibility | Requires iOS 8.3 (or later) / Android 4.3 (or later) | |||
| Requires mobile device with Bluetooth 4.0 | ||||
| Battery type | 3 AAA Batteries | |||
| Warranty | 2 years | |||
| testo 510i | ||||
| Measuring range | -60 to +60 InHâ‚‚O / -150 to +150 hPa | |||
| Accuracy |
±0.02 InH₂O (0 to +0.4 InH₂O) / ±0.05 hPa (0 to +1 hPa) ±(0.1 InH₂O + 1.5 % of mv) (+0 to +60 InH₂O) / ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
|||
| Resolution | 0.01 InHâ‚‚O / 0.01 hPa | |||
| Weight | 3.25 oz. / 92 g | |||
| Dimensions | 6 x 1 x 1 in. / 148 x 36 x 23 mm | |||
| Operating temperature | -4° to 122 °F / -20 to +50 °C | |||
| Housing | ABS / TPE | |||
| System requirements | Requires iOS 13.0 or newer; Requires Android 8.0 or newer; Requires mobile end device with Bluetooth 4.2 | |||
| Product colour | Black/orange | |||
| Battery life | 150 h | |||
| Battery type | 3 x AAA | |||
| Storage temperature | -4° to 140 °F / -20 to +60 °C | |||
Includes
- (1) Testo 0563 0009 Smart Probes AC / Refrigeration Capacity Test Kit
- (2) Testo 115i Pipe Clamp Thermometer Smart Probe - 2nd Gen
- (2) Testo 549i Refrigeration Pressure Smart Probe - 2nd Gen
- (2) Testo 605i Humidity Smart Probe - 2nd Gen
- (18) AAA Batteries
- (1) Testo HVAC Softcase
- (1) Certificate of Calibration
- (1) Testo 605i Humidity Smart Probe - 2nd Gen
- (1) Testo 510i Differential Pressure Smart Probe
- (1) Testo 510i Differential Pressure Manometer Wireless Smart Probe
- (1) 41 inch (1m) hose with Ø 0.15 in
- (1) 41 inch (1m) hose with Ø 0.2 in.
- (1) Hose adapter
- (3) AAA Batteries
- (1) Certificate of Calibration
