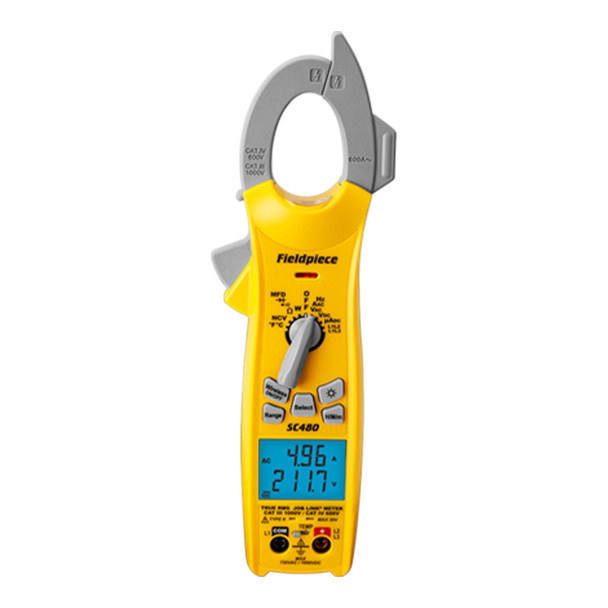

Fieldpiece SC480 True RMS HVAC Power Clamp Meter, Job Link®, 600A
Direct integration with Job Link System App!
Whether you're working on small circuitry in mini-splits or large commercial systems, the SC480 delivers the electrical measurements HVAC/R technicians need for installation, service, and troubleshooting. It connects directly to the Job Link System app for wireless measurement logging, measures power consumption (W/kW) to help evaluate system performance, verifies 3-phase rotation with two leads, captures True RMS VAC and AAC readings, and uses a Low Pass Filter (LPF) to improve accuracy on VFD systems.
Key Features & Benefits
- Measures power (W/kW) to track system energy consumption
- True RMS (TRMS) readings through the clamp or leads
- Low Pass Filter (LPF) helps improve voltage and frequency readings on VFD systems
- Capture starting amps with InRush feature
- Indicates 3-phase rotation with two leads, no need to carry the extra lead
- Measures start/run capacitors
- Magnet for mounting meter during use
- Test diodes and resistance up to 50 MegOhms
- Molex tip leads for small power connectors
- Safety rated CAT IV-600V/CAT III-1000V
Direct Integration with Job Link System App!
Pair all your Job Link tools in the Job Link App to receive and document a complete system snapshot wirelessly. From the new SC480 and SC680 clamp meters and SM382V and SM482V manifolds, to the JL3 Job Link Probes, and SRS3 scale, all measurements are live and in real time so you can see exactly how adjustments are affecting the system.
Document all Measurements
Clearly communicate the health of the system with your co-workers and customers. Proven to help reduce call backs and increase sales.
- Wireless direct to the Job Link System mobile app
- Up to 1000 feet (305m) line of sight. Distance decreases through obstructions.
- Document electrical measurements
- Calculate power and system efficiency
- Measure accurate blower amperages behind the door
- Wireless monitoring of compressor VAC and AAC
Specs
| Volts AC (VAC) True RMS (50-400Hz) | |
|---|---|
| Ranges: | 1000mV, 10V, 100V, 750V |
| Resolution: | 0.1mV |
| Accuracy: |
±(1.5% + 10) 50Hz to 60Hz ±(2.0% + 10) 60Hz to 400Hz Unspecified at 400Hz and greater |
Volts DC (VDC) |
| Ranges: | 1000mV, 10V, 100V, 1000V |
| Resolution: | 0.1mV |
| Accuracy: | ±(0.5% + 5) | Amps AC (AAC) True RMS (50-60Hz) |
| Ranges: | 100A, 600A |
| Resolution: | 0.01A |
| Accuracy: | ±(2.0% + 10) | Frequency (Hz) Through Clamp |
| Ranges: | 10Hz to 400Hz |
| Resolution: | 0.1Hz |
| Accuracy: | ±(0.1% + 5) | MicroAmps DC (µADC) |
| Ranges: | 1000µA |
| Resolution: | 0.1µA |
| Accuracy: | ±(1.0% + 5) | Capacitance (MFD) |
| Ranges: | 10nF, 100nF, 1000nF, 10µF, 100µF, 1000µF, 10mF |
| Resolution: | 0.01nF |
| Accuracy: | ±(3% + 15) 10nF, ±(3% + 5) 100nF to 1000µF, ±(5% + 5) 10mF | Resistance (Ω) |
| Ranges: | 100Ω, 1000Ω, 10kΩ, 100kΩ, 1000kΩ, 10MΩ, 50MΩ |
| Resolution: | 0.01Ω |
| Accuracy: | ±(1.0% + 15) 100Ω, ±(1.0% + 5) 1000Ω to 100kΩ, ±(1.5% + 5) 1000kΩ, ±(3.0% + 5) 10MΩ to 50MΩ | Continuity |
| Ranges: | 100Ω |
| Resolution: | 0.01Ω |
| Response time: | 100ms | Diode Test |
| Test current: | 0.8mA (Approx.) |
| Open circuit volts: | 3.2VDC typical |
| Accuracy: | ±(1.5% + 5) | Temperature |
| Range: | -58°F to 2372°F, (-50°C to 1300°C) |
| Resolution: | 0.1° |
| Accuracy: |
±(1°F) 32°F to 120°F, ±(1°C) 0°C to 49°C ±(1%+2°F) 32°F to 932°F, ±(1%+1°C) 0°C to 500°C ±(2%+6°F) -58°F to 32°F, ±(2%+3°C) -50°C to 0°C ±(2%+6°F) 932°F to 2372°F, ±(2%+3°C) 500°C to 1300°C |
Phase Rotation Test (L1L2, L1L3) |
| Ranges: | 80±5 VAC to 600VAC (50Hz to 80Hz) |
| Resolution: | 0.1V |
| Accuracy: | ±(1.5% rdg + 10 dgts) |
Includes

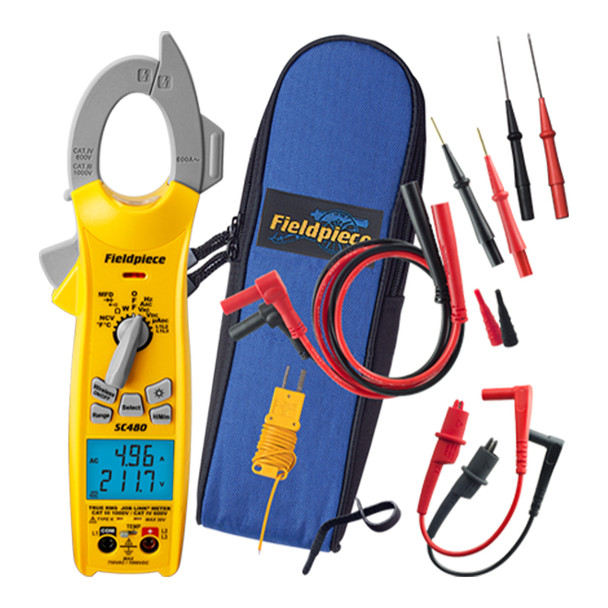

- (1) SC480 Clamp Meter
- (1) ATB1 Thermocouple
- (1) ASA2 Gator Clip Leads
- (1) ADLS2 Silicone Leads
- (1) ANC12 Padded Case
- (1) RCT2 Molex Tips
Resources
Fieldpiece SC480 Manual Software / App
Download the Fieldpiece Job Link® App for your Android or iOS devices
