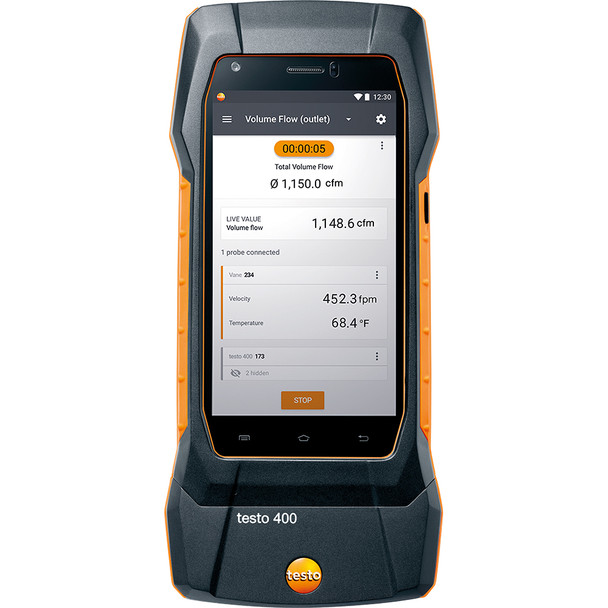

Testo 400 Universal Air Flow and IAQ Instrument
A measuring instrument for all climate-related parameters
The testo 400 is the universal measuring instrument for all TAB / Commissioning and IAQ professionals. Measure, analyze and document Air flow, air pressure, IAQ and comfort level parameters using just one instrument – simply, conveniently and in compliance with the standards. High-quality measuring technology, intuitive measurement assistants, versatile documentation options and a comprehensive selection of air flow, comfort and IAQ probes make the testo 400 the perfect partner for your day-to-day work.
- Smart, intuitive measurement programs including HVAC volume flow grid measurement as per ASHRAE 111, PMV/PPD and turbulence as per ASHRAE 55
- High-precision, location-independent and integrated differential pressure sensor meeting the NEBB Instrument requirements for Air pressure
- Measure all Air flow, Comfort and IAQ-related parameters – with our wide range of probes
- Document measuring values directly on the customer's site and send them by e-mail, or further analyze them using the testo DataControl PC software
As an expert in the field of air conditioning and ventilation, you will find the testo 400 universal Air flow and IAQ measuring instrument ideal. The measuring instrument with a built-in measurement assistant provides optimum support for carrying out air flow and comfort level measurements in accordance with the standards like NEBB and ASHRAE, as well as for Testing, Adjusting & Balancing (TAB) air conditioning and ventilation systems.
Testo 400 Features:
- High-precision, location-independent and integrated differential pressure sensor meeting the NEBB Instrument requirements for Air pressure
- Integrated absolute pressure sensor
- Measures all IAQ-related parameters: Flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO2 and CO
- Numerous connection options for probes: 2 x cable probes (TUC), 4 x Bluetooth probes, 2 x type K thermocouple probes
- Compatible with a wide range of available Bluetooth and cable probes – so you’ll be equipped for any measuring task
- For high-precision measurements and less downtime: Adjustment function at up to six measuring points for zero-error display, probe heads can be replaced without restarting the IAQ measuring instrument, high-quality probes with an intelligent calibration concept (probe calibration independent of the measuring instrument)
- Long-term monitoring of the indoor air quality: Order the IAQ data logger for carrying out long-term measurements with the testo 400 IAQ measuring instrument. While the stand-alone data logger is carrying out the IAQ measurement, you can use the IAQ measuring instrument for measurements elsewhere
- For error-free measurements in accordance with the standards: Smart, intuitive measurement menus and evaluation of readings according to the traffic light principle provide optimum support for your measuring task. Use the measurement programs for standard-compliant measurements: HVAC volume flow grid measurement as per ASHRAE 111, PMV/PPD as per ASHRAE 55, draft and turbulence as per ASHRAE 55
- Complete the measurement and full documentation including photos, comments and your own logo on site at the customer’s premises, and send by e-mail (via WiFi)
- Customer and measuring point management is carried out in the measuring instrument itself – for efficient work on site
- Smart-touch display for intuitive operation of the IAQ measuring instrument
- Testo DataControl PC software for further analysis, archiving and documentation of measurement data on your computer
- Built-in WiFi and Bluetooth® interfaces: Send measurement reports directly on site or print them out with a suitable printer
Specs
Temperature - NTC | |
---|---|
Measuring range | -40.0° to 302.0 °F / -40 to +150 °C |
Accuracy | ±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1
Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range) |
Resolution | 0 °F / 0.1 °C | Temperature - Type K TC |
Measuring range | -328.0° to 2498.0 °F / -200 to +1370 °C |
Accuracy | ±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit |
Resolution | 0.1 °F / 0.1 °C | Differential pressure (internal sensor) - Piezoresistive |
Measuring range | -40 to +80 InH2O / -100 to +200 hPa |
Accuracy | ±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv)
±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) |
Resolution | 0.000 InH2O / 0.001 hPa | Absolute Pressure (internal sensor and external probe) |
Measuring range | 280 to 440 InH2O / 700 to 1100 hPa |
Accuracy | ±1 InH2O / ±3 hPa |
Resolution | 0.1 InH2O / 0.1 hPa | General technical data |
Weight | 17.99 oz. (instrument) / 510 g (instrument) |
Dimensions | 8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH)) |
Operating temperature | 23.0° to 113.0 °F / -5 to +45 °C |
Housing | Plastic |
Protection class | IP40 |
Product colour | black/orange |
Camera image size | Main camera: 8.0 MP; Front camera: 5.0 MP |
Connectable probes | 4 x digital Bluetooth probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable |
Battery life | approx. 10 hrs continuous operation |
Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
Power supply | Rechargeable li-ion battery (5550 mAh) |
Interface | Bluetooth; USB; WLAN |
Memory | 2 GB |
Storage temperature | -4.0° to 140.0 °F / -20 to +60 °C |
Includes
- (1) Testo 400 universal instrument
- (1) Transport case for air flow measurement
- (1) Power supply with USB cable
- (1) Testo DataControl software
- (1) Calibration protocol
