NAVAC Flaring and Swaging Tool Kit

SKU:
NCTTK
MPN:
NCTTK

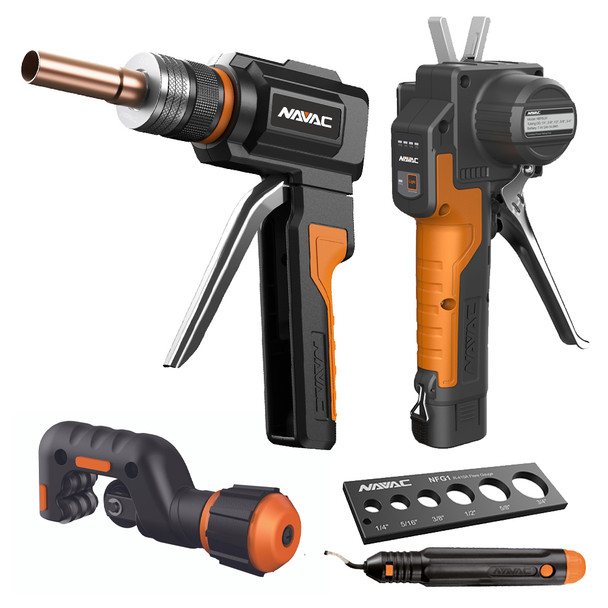

  • NAVAC Flaring and Swaging Tool Kit
  • NAVAC Flaring and Swaging Tool Kit
MSRP: $867.49
Price: $754.84
— You save $112.65

Description

NAVAC Complete Tubing Tools Kit

Flaring and Swaging with Flare Gauge, Deburrer, and Cutter

This Kit includes the NAVAC NEF6LM Cordless Flaring Tool, the NAVAC NTE11H Hydraulic Swage Tube Expander, Flare Gauge, NTC13 Tube Cutter 1/8" - 1-3/8" OD, and Pen Style Deburrer.

NAVAC NEF6LM Cordless Power Flaring Tool 3/4" Max OD

A welcome departure from creating flares manually, the NEF6LM Cordless Power Flare yields accurate, hassle-free flares in a fraction of the time compared to traditional flaring methods. Weighing less than 3 pounds, the new Power Flaring Tool equips with a high-performance rechargeable lithium battery which makes over 100 flares per charge. NAVAC’s second-generation automatic flaring solution is significantly reduced in weight and price without sacrificing accuracy or consistency. Designed to perform reliably in harsh environments, the NEF6LM Cordless Power Flare also allows one-button, one-hand operation. In addition, it features a battery power indicator and a flashlight It comes in a sturdy blow-molded case with five commonly-sized flare dies, one battery, a charger, and a premium flare gauge.

Features

  • Complete a flare in 15 seconds
  • Over 100 flares per charge
  • Quick charge in 30 minutes
  • Ultra light at 2.9 lbs
  • Quick connect with ready-to-use clamps
  • 45° flaring for R410A
  • Limit baffle assures precise flare depth
  • Easy one-button operation
  • Battery power indicator
  • LED flash light

NAVAC NTE11H Hydraulic Tube Expander 3/8" - 1-1/8" OD

The NAVAC NTE11H Hydraulic Expander is easy to use, suitable for large diameter copper and compact in size making it convenient for narrow spaces. The easy one-hand operation reduces labor and improves efficiency.

  • Suitable for large diameter copper
  • Compact
  • Convenient for narrow spaces
  • Easy to use
  • Reduced labor and improved efficiency
  • Vacuum sealed, no need to service fluid chamber

NAVAC NTC13 Tube Cutter

With sharp cutting blade, ball bearings and aluminum alloy body, it makes tube cutting easy and efficient.

  • High-quality sharp cutting blade with built-in ball bearing on the cutting wheel, durable and easy to cut.
  • Tube holding mechanism with 6 ball bearings for better tube securing and easy operation
  • Aluminum alloy with light weight and easy to carry and use
  • Tube size range: 1/8” to 1-3/8” OD

NAVAC NFG1 Flare Gauge

For precise measurement of tube flare. Tube sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"

NAVAC NTD28 Tube Deburring Tool

  • Slip-resistant handler with rotating blade for easy and efficient deburring
  • Replaceable blade design, easy to change
  • Comes with 2 spare blades stored inside the handle

Specs

NEF6LM Specifications
Tubing Type Copper
Tubing OD 1/4", 3/8", 1/2", 5/8", 3/4"
Power DC Motor
Cone Speed 120 RPM
Battery Capacity Up to 100 flares per charge
Time to flare Under 30 seconds
Dimensions 10" x 4" x 4"
Weight 2.9lbs
Battery 7.4V 2Ah 14.8W
Quick Charge 30 minutes
NTE11H Specifications
Model NTE11H
Tube O.D. 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"

Includes

  • (1) NAVAC NEF6LM Cordless Power Flaring Tool
  • (1) Battery and Charger
  • (1 ea.) Flare Heads (1/4", 3/8", 1/2", 5/8", 3/4")
  • (1) NEF6LM Hard Case
  • (1) NAVAC NTE11H Hydraulic Tube Expander
  • (1 ea.) Expander Heads (3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8")
  • (1) NTE11H Hard Case
  • (1) NAVAC NTC13 Tube Cutter
  • (1) NAVAC NTD28 Tube Deburring Tool
  • (1) NAVAC NFG1 Flare Gauge
